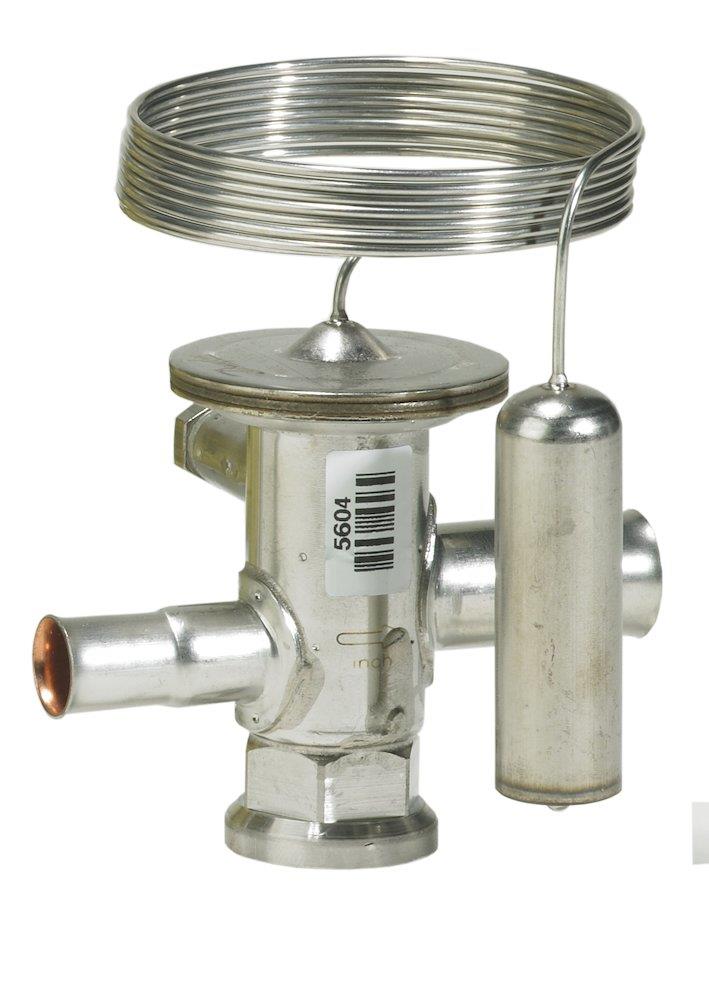

Danfoss TUA Thermostatic expansion valve solder/solder - R134A, Intern, -40-10°C, TUA R134A/R513A
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TUA Thermostatic expansion valve solder/solder. Thermostatic expansion valves (Refrigeration technology / Cooling technical components / Expansion valves). Principal data: coolant R134a, pressure compensation Internal, working temperature -40-10 °C, type designation TUA R134a/R513A. Supplied under manufacturer part number 068U2204, EAN 5702422181071, HS code 8481.80, country of origin Denmark.
Technical Specifications
- Product type
- Thermostatic expansion valves
- Product group
- Cooling technical components
- Coolant
- R134a
- Pressure compensation
- Internal
- Working temperature
- -40-10 °C
- Type designation
- TUA R134a/R513A
- Carbon footprint (EPD)
- 1.2348 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84818099
- HS code
- 8481.80
- Manufacturer part number
- 068U2204
- EAN
- 5702422181071
- Net weight
- 0.145 Kilogram
- Type
- TUA
- Approval
- EAC
- Body material
- Stainless steel
- Capillary tube length [in]
- 59 in
- Capillary tube length [mm]
- 1500 mm
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection Code
- (3002:X:6; 3002:X:13)
- Connection material
- Bi-metal: Steel/copper
- Direction
- Straightway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction
- Single-flow
- Flow direction indicator
- Laser engraved 1-way arrow
- Fluid Group
- 2
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 1/4 in
- Max. Working Pressure [bar]
- 34 bar
- Max. Working Pressure [psig]
- 500 psig
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 1/2 in
- Parts included
- Bulb strap
- PED category
- Art. 4, par. 3
- Pressure equalization
- Internally equalized
- Rated cap. cond. Range N [IMP]
- OS=7.2 ºF
- Rated cap. cond. Range N [SI]
- OS=4K
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a/R513A
- Seal
- No
- Static Superheat (SS) [°C]
- 4 °C
- Static Superheat (SS) [°F]
- 7.2 °F
- Superheat setting
- Adjustable
- Temperature range [°C] [max]
- 10 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 50 °F
- Temperature range [°F] [min]
- -40 °F
- UL approved refrigerants
- R134a
- UL mark
- Yes
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5702422181071
- MPN 068U2204
Product Documentation
More from Danfoss
Danfoss
Danfoss Diaphragm Service Kit for EV220 / EV228BW DN15 NC/NO Solenoid Valves
132U8016
Danfoss
Danfoss MBS 5100 Pressure Transmitter - 1/4", 0-1bar
060N1032
Danfoss
Danfoss S Oil nozzle - 2.37KG/h, 0.6US gal/h, 60°, S, red
030F6912
Danfoss

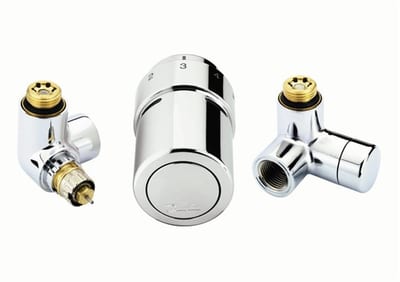

Danfoss RTX Valve Set chrome-plated - R 1/2", 0.44M³/h 1101088
013G4133
Danfoss

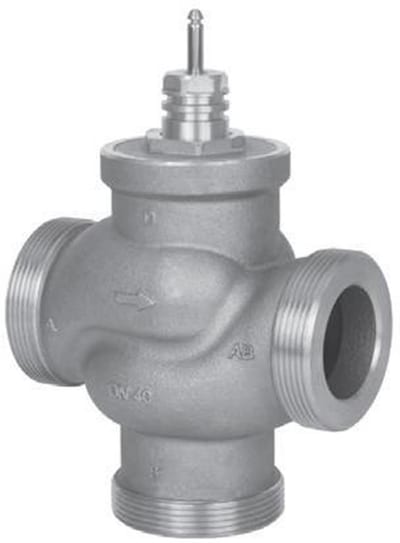

Danfoss VRB 3 Seat Valve 3-Way - 40, 2 1/4", Nipple, 25M³/h
4007140
Danfoss
Danfoss S Oil nozzle - 3.72KG/h, 1US gal/h, 80gr, S, red
030F8920
Danfoss
Danfoss BF230AS Coil - 220-230 V AC, 12W, 3-Kernet cable
5702428024815
Danfoss

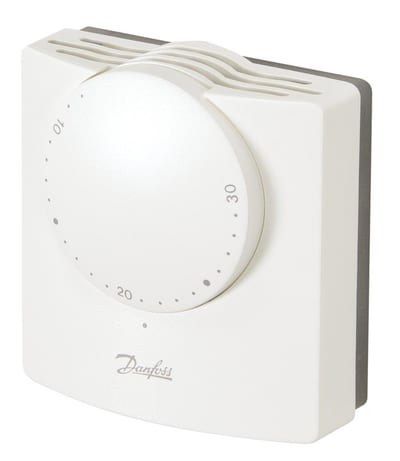

Danfoss RMT 24T Room Thermostat - 8°C, 30°C
4007241
Technical guides
- Expansion Valve Finder — Danfoss TE 2 / TE 5 / TE 12 / TE 20 / TE 55, TGE, TUA / TUB / TUBE, T2 / TS2, AKV and ETS Colibri by Refrigerant, Connection and Type
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 068U2204?
- 068U2204 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 068U2204.
- What is the HS code for 068U2204?
- The customs tariff (HS) code for 068U2204 is 8481.80.
- Who manufactures 068U2204?
- 068U2204 is a Danfoss product in the HVAC & Refrigeration range.
- Is a datasheet available for 068U2204?
- Yes — the 068U2204 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 068U2204?
- The minimum order quantity is 1.
- Is 068U2204 available?
- Yes — 068U2204 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
