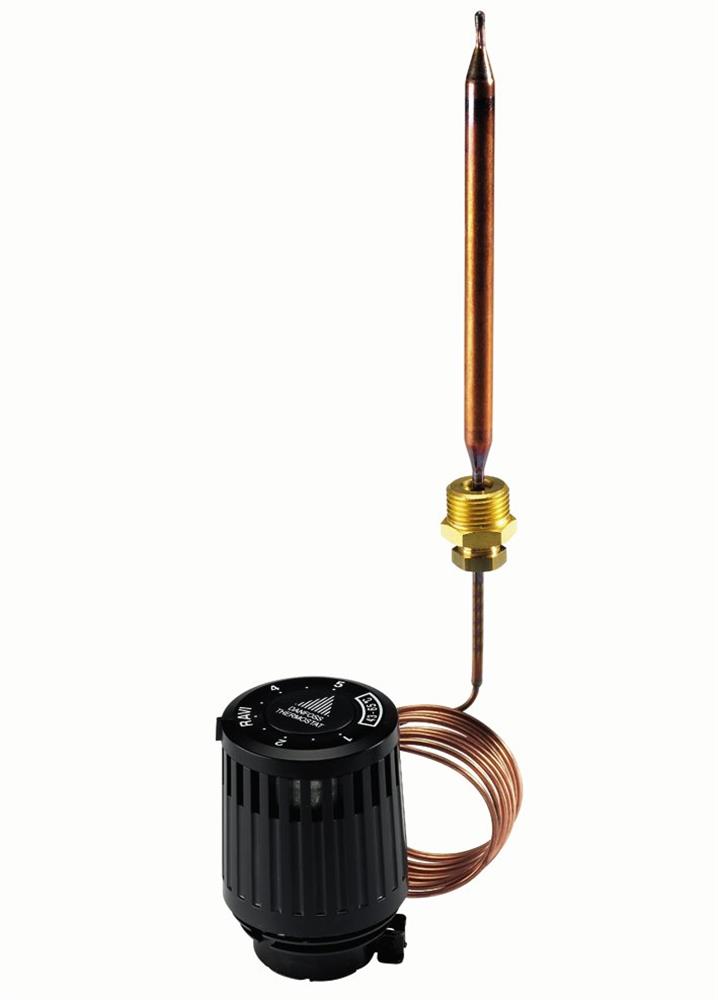

Danfoss RAVI Sensor Element - 43°C, 65°C, 2M
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RAVI Sensor Element. Thermostats and sensing elements (Plumbing / Heat / Radiators, valves & accessories). Principal data: setting temperature min 43 °C, setting temperature max 65 °C, capillary 2 m. Supplied under manufacturer part number 013U8008, EAN 5702421500415, HS code 8403.90, country of origin Slovenia.
Technical Specifications
- Product type
- Thermostats and sensing elements
- Product group
- Heat
- Setting temperature min
- 43 °C
- Setting temperature max
- 65 °C
- Capillary
- 2 m
- Sensor temperature max
- 70 °C
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack, Plt.
- Carbon footprint (EPD)
- 3.1448 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 84039090
- HS code
- 8403.90
- Manufacturer part number
- 013U8008
- VVS number
- 451241000
- EAN
- 5702421500415
- Net weight
- 0.37 Kilogram
- Type
- RAVI
- Ambient temperature [°C] [max]
- 70 °C
- Ambient temperature [°C] [min]
- 0 °C
- Approval standard
- DIN EN 14597:2005-12 TR838
- Capillary tube length [m]
- 2 m
- China RoHS compliance
- Out of scope
- Description
- RAVI PN10 43-65/2m
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Function
- Temp. controller
- Gain Ks
- 0.25
- Impulse tube material
- Copper mat. No 2.0090
- Media temperature at sensor [°C] [Max]
- 70 °C
- Mounting version
- Return
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Sensor connection
- M14x1 / R1/2 ext thread acc. DIN 2999
- Speed type
- Fast
- Temperature sensor diameter [mm]
- 9.5 mm
- Temperature sensor length [mm]
- 150 mm
- Temperature sensor material
- Copper mat. No 2.0090
- Temperature sensor mounting
- Sensor warmer
- Temperature setting range [°C] [Max]
- 65 °C
- Temperature setting range [°C] [Min]
- 43 °C
- Time constant [sec]
- 3 "
- Transport temperature [°C] [Max]
- 50 °C
- Transport temperature [°C] [Min]
- -20 °C
Standards & Compliance
- HS Code
- 8403.90
Cross References
- MPN 013U8008
- EAN 5702421500415
- VVS 451241000
Product Documentation
