Product Description

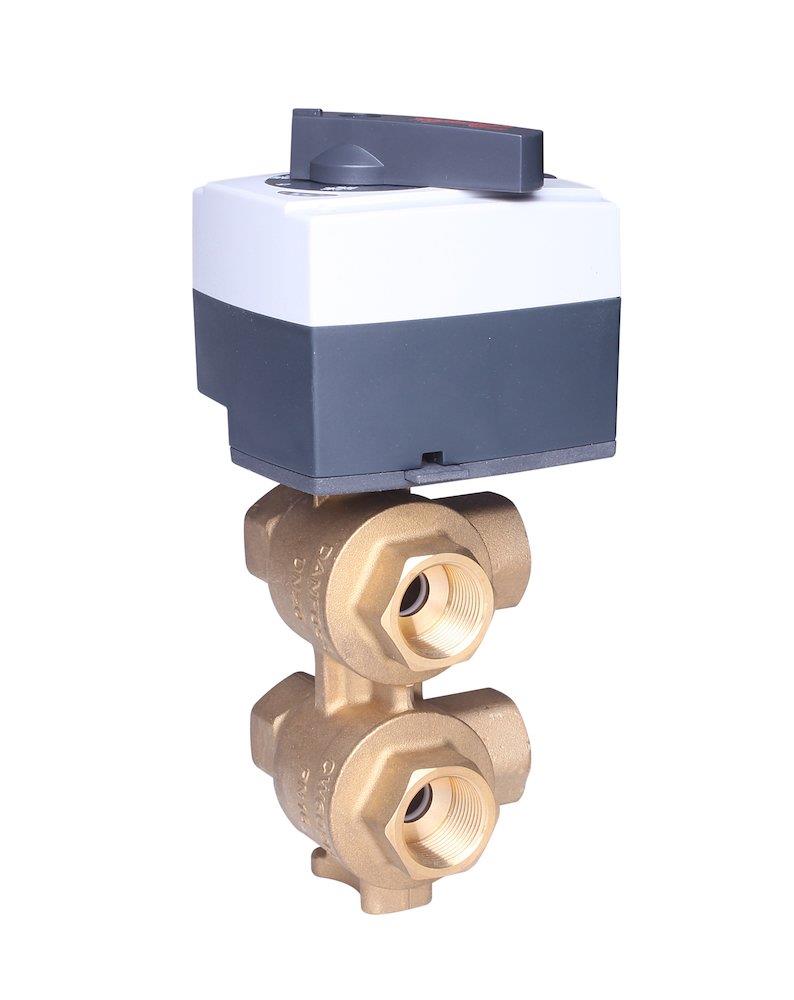

Danfoss Motor Valve. Seat valves (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 20, thread 3/4". Supplied under manufacturer part number 003Z3151, EAN 5702428960212, HS code 8481.90, country of origin Denmark.
Technical Specifications
- Product type
- Seat valves
- Product group
- Heat
- DN dimension
- 20
- Thread
- 3/4"
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 4.4000 kg CO2e per pcs
- Environmental declaration
- EPD internally verified
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84819000
- HS code
- 8481.90
- Manufacturer part number
- 003Z3151
- VVS number
- 460961051
- EAN
- 5702428960212
- Net weight
- 1.75 Kilogram
- Type
- ChangeOver6 valve
- Actuator connection
- Quick fix connection
- China RoHS compliance
- Out of scope
- Connection types
- Internal thread
- Description
- ChangeOver6 DN 20, motorized 6-port ball valve
- EPD available
- Yes
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- For valve size
- DN 20
- Kvs values [m³/h]
- 4 m³/h
- Label product
- Yes
- Media temperature [°C] [Max]
- 90 °C
- Media temperature [°C] [Min]
- 0 °C
- Pressure class
- PN 16
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Shut off pressure [kPa] [Max]
- 801 KPa
- Shut-off function
- Yes
- Valve body material
- DZR Brass (CW 602N)
Standards & Compliance
- HS Code
- 8481.90
Cross References
- MPN 003Z3151
- EAN 5702428960212
- VVS 460961051
Product Documentation
