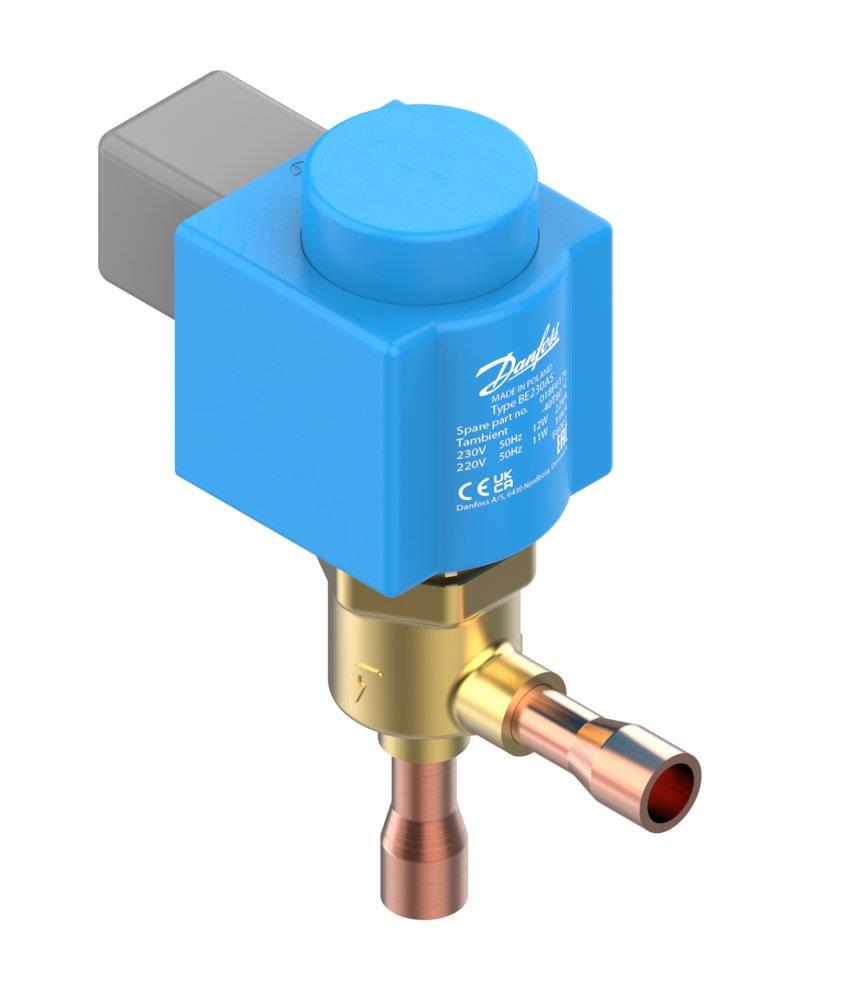

Danfoss OPTIONALLY Solenoid Valve solder - 140bar, R744 (CO2), OPTIONALLY 2
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss OPTIONALLY Solenoid Valve solder. Solenoid valves for refrigeration systems (Refrigeration technology / Cooling technical components). Principal data: working pressure max 140 bar, coolant R744 (CO2), type designation OPTIONALLY 2. Supplied under manufacturer part number 068F0601, EAN 5715162438763, HS code 8481.80, country of origin Denmark.
Technical Specifications
- Product type
- Solenoid valves for refrigeration systems
- Product group
- Cooling technical components
- Working pressure max
- 140 bar
- Coolant
- R744 (CO2)
- Type designation
- OPTIONALLY 2
- Sales unit
- Pack
- Carbon footprint (EPD)
- 6.1852 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84818079
- HS code
- 8481.80
- Manufacturer part number
- 068F0601
- EAN
- 5715162438763
- Net weight
- 240 Gram
- Type
- OPTIONALLY 2.0
- Actuator system [mm]
- 13.5 mm
- Ambient temperature range [°C] [max]
- 50 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 122 °F
- Ambient temperature range [°F] [min]
- -104 °F
- Body material
- Brass
- China RoHS compliance
- Yes
- Coil
- No
- Connection Code
- (3002:X:10)
- Connection material
- Copper
- Cv value [gal/min]
- 0.1 gal/min
- Direction
- Angleway
- EU RoHS compliance
- Yes
- Function
- NC
- Identical product
- 068F0627
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 3/8 in
- Kv value [m³/h]
- 0.1 m³/h
- Lubricants compatibility
- PAG
- Manual operation option
- No
- Max. Working Pressure [bar]
- 140 bar
- Max. Working Pressure [psig]
- 2030 psig
- Medium temperature range [°C] [max]
- 150 °C
- Medium temperature range [°C] [min]
- 0 °C
- Medium temperature range [°F] [max]
- 302 °F
- Medium temperature range [°F] [min]
- -32 °F
- Min. PD keep open [bar]
- 0.4 bar
- Min. PD keep open [psi]
- 5.8 psi
- MinODP [bar]
- 2 bar
- MinODP [psi]
- 29 psi
- MOPD[bar/psi]
- 110 bar/1595 psi Coil Dependen
- Orifice size [mm]
- 2 mm
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 3/8 in
- REACH Candidate Strip substances
- No
- Refrigerants
- R744
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5715162438763
- MPN 068F0601
