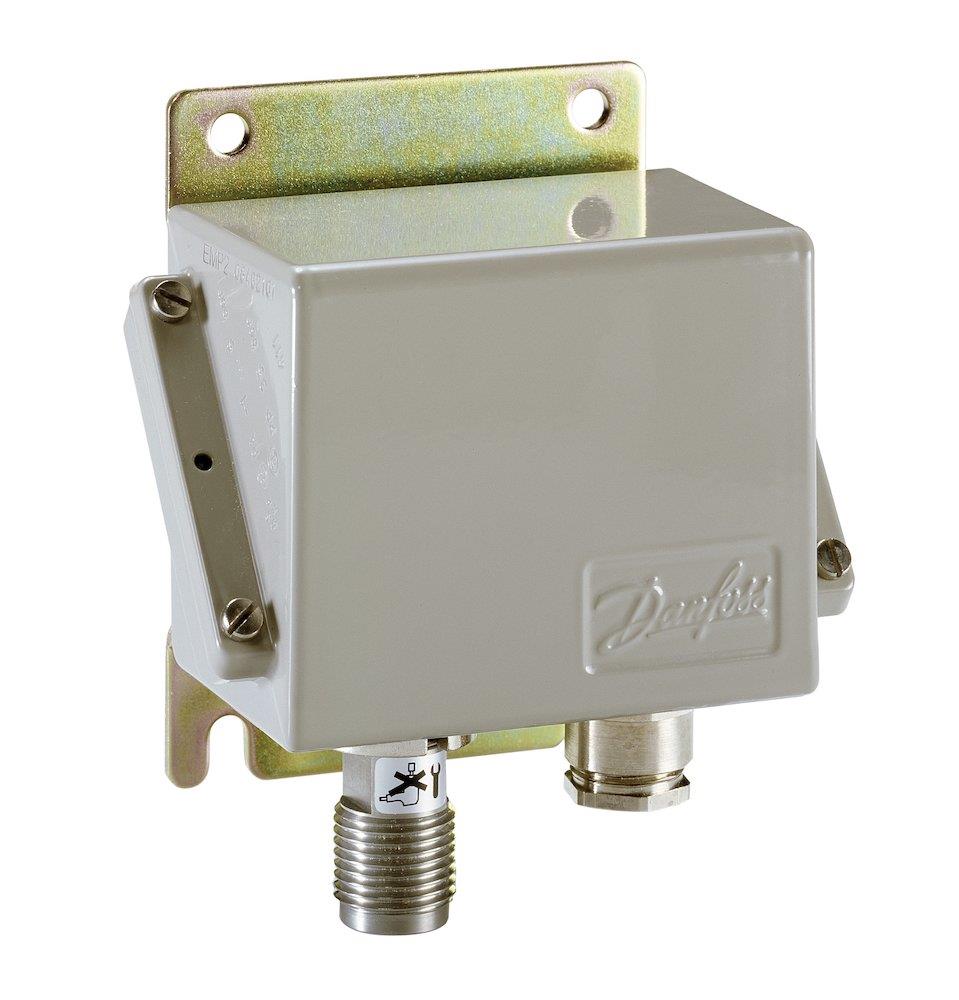

Danfoss EMP 2 Pressure Transmitter - 3/8", 0-40bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EMP 2 Pressure Transmitter. Push buttons (Plumbing / Heat / Valves for heating and cooling systems). Principal data: connection 3/8", setting range 0-40 bar. Supplied under manufacturer part number 084G2213, EAN 5702423043545, HS code 9026.20, country of origin China.
Technical Specifications
- Product type
- Push buttons
- Product group
- Heat
- Connection
- 3/8"
- Setting range
- 0-40 bar
- Type
- EMP 2
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 7.3634 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 90262020
- HS code
- 9026.20
- Manufacturer part number
- 084G2213
- VVS number
- 475159140
- EAN
- 5702423043545
- Net weight
- 0.98 Kilogram
- + supply
- P
- - common
- N
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Approval
- ABS
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 70 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 158 °F
- Compensated temp. range [°F] [min]
- 32 °F
- Electrical connection
- Terminal block
- Electrical connection size
- Pg 13.5
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 7(c)-I
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- International Article Number
- 5702423043545
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 70 °C
- Medium temperature range [°C] [min]
- -10 °C
- Medium temperature range [°F] [max]
- 158 °F
- Medium temperature range [°F] [min]
- 14 °F
- Non-linearity BFSL [±FS%]
- 0.3 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 80 bar
- Pressure connection notes
- MANO EXT.
- Pressure connection size
- 3/8
- Pressure connection standard
- EN 837
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 40 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 580 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- EMP 2-2631-F6CD25-2
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 12 V
- UL mark
- Yes
Standards & Compliance
- HS Code
- 9026.20
Cross References
- MPN 084G2213
- EAN 5702423043545
- VVS 475159140
