Product Description

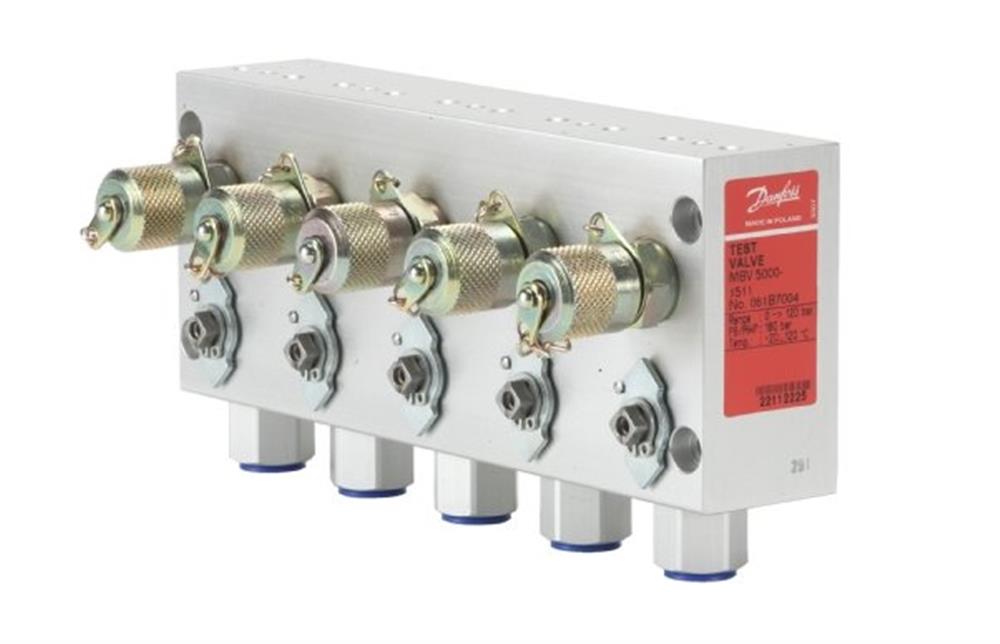

Danfoss MBV 5000 Test Valve. Push buttons (Plumbing / Heat / Valves for heating and cooling systems). Principal data: connection 1/4". Supplied under manufacturer part number 061B7012, EAN 5702423058921, HS code 8481.80, country of origin Poland.
Technical Specifications
- Product type
- Push buttons
- Product group
- Heat
- Connection
- 1/4"
- Type
- MBV 5000
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 12.4479 kg CO2e per pcs
- Country of origin
- Poland
- Customs tariff code (EU CN)
- 84818059
- HS code
- 8481.80
- Manufacturer part number
- 061B7012
- VVS number
- 475180305
- EAN
- 5702423058921
- Net weight
- 1.63 Kilogram
- Ambient temperature range [°C] [max]
- 120 °C
- Ambient temperature range [°C] [min]
- -20 °C
- Ambient temperature range [°F] [max]
- 248 °F
- Ambient temperature range [°F] [min]
- -4 °F
- Approval
- EAC
- China RoHS compliance
- Out of scope
- EU RoHS compliance
- Out of scope
- MiniMess included
- Yes
- Number of inputs [pc]
- 1 pc
- Number of outputs [pc]
- 5 pc
- Output connection type
- Flange
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 3852-E
- Pressure connection type
- G
- Pressure Male/Female
- Female
- Pressure range (Pi) [bar] [max]
- 120 bar
- Pressure range (Pi) [bar] [min]
- 0 bar
- Pressure range (Pi) [bar] oil [max]
- 180 bar
- Pressure range (Pi) [bar] oil [min]
- 0 bar
- Pressure thread conn standard
- ISO 228-1
- Pulse-snubber
- No
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Specification key
- MBV5000-3511
- Test function
- Common
- Test pressure connection size
- 16 x 2
- Test pressure connection type
- M
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 061B7012
- EAN 5702423058921
- VVS 475180305
Product Documentation
