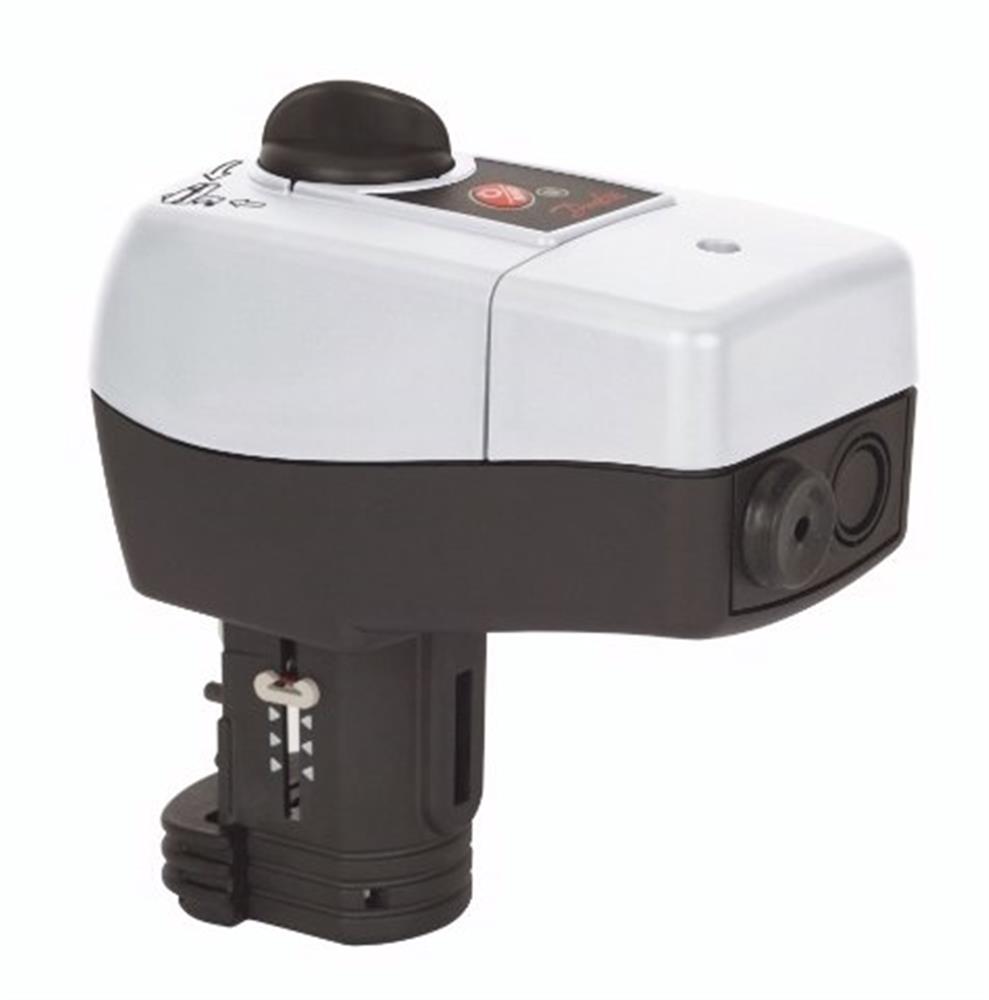

Danfoss AME 435 Gear Motor modulerende / 3-Point - 24V AC, 7MM/s
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AME 435 Gear Motor modulerende / 3-point. Engines/thermal engines (Plumbing / Heat / Valves for heating and cooling systems). Principal data: supply voltage 24 V AC, speed 7 mm/s. Supplied under manufacturer part number 082H0161, EAN 5710104006284, HS code 9032.89, country of origin Slovenia.
Technical Specifications
- Product type
- Engines/thermal engines
- Product group
- Heat
- Supply voltage
- 24 V AC
- Speed
- 7 mm/s
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack, Plt.
- Carbon footprint (EPD)
- 11.9000 kg CO2e per pcs
- Environmental declaration
- EPD internally verified
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 90328900
- HS code
- 9032.89
- Manufacturer part number
- 082H0161
- VVS number
- 460947470
- EAN
- 5710104006284
- Net weight
- 0.582 Kilogram
- Type
- AME 435
- Actuator speed [s/mm]
- 8 s/mm
- Actuator type
- Electrical
- Ambient temperature [°C] [max]
- 55 °C
- Ambient temperature [°C] [min]
- 0 °C
- Application
- HVAC
- Cable included
- No
- China RoHS compliance
- Out of scope
- Closing force [N]
- 400 N
- Compatibility with valve
- VRB DN 15-50
- Control input signal Y [mA]
- 0(4) - 20 mA
- Control input signal Y [mA], impedance [Ohm]
- 500 Ohm
- Control input signal Y [V]
- 0(2) - 10 V
- Control input signal Y [V], impedance [kOhm]
- 95 kOhm
- Control signal type
- Modulating
- Description
- AME 435, 24V AC/DC, 3-15s/mm, 20mm, 400N
- Electrical Protection Class according to EN60730-1
- II
- EPD available
- Yes
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Frequency [Hz]
- 50/60
- IP protection class
- IP54
- Manual operation
- Yes
- Position feedback
- yes
- Power consumption [W]
- 5 W
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Safety function
- No
- Spring down (return)
- No
- Spring up
- No
- Storage temperature [°C] [Max]
- 70 °C
- Storage temperature [°C] [Min]
- -40 °C
- Stroke [mm]
- 20 mm
- Supply voltage [V]
- 24 V AC/DC
Standards & Compliance
- HS Code
- 9032.89
Cross References
- MPN 082H0161
- EAN 5710104006284
- VVS 460947470
Product Documentation
More from Danfoss
Danfoss

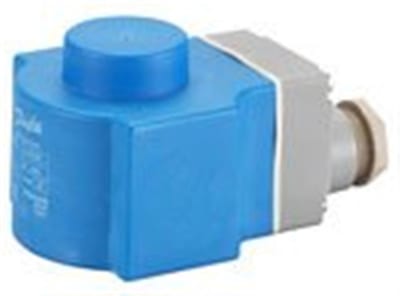

Danfoss BG024DS Coil with junction box - 24 V DC, 16W, System B
549444
Danfoss

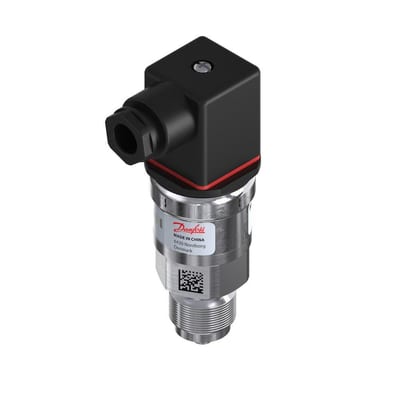

Danfoss MBS 33 Pressure Transmitter - 1/2", 0-25bar 10248629
060G3043
Danfoss

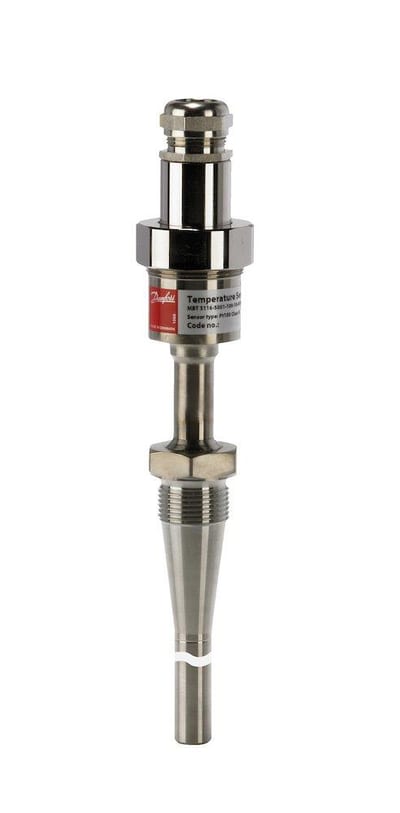

Danfoss MBT 5116 Sensor - 1/2", 80mm
10248050
Danfoss

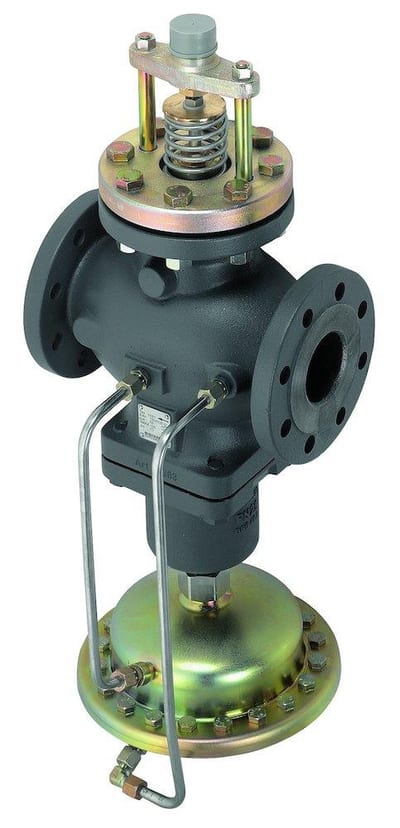

Danfoss AFQM Flow Limiter - 100, Flange/flange, 125M³/h
003G6065
Danfoss

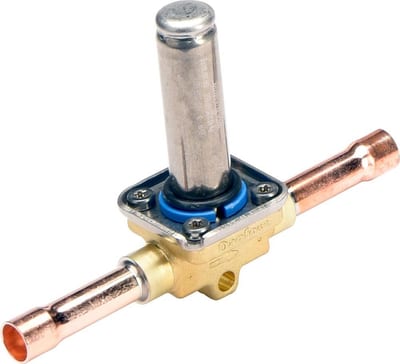

Danfoss EVR Solenoid Valve flare - 45.2bar, 0.27M³/h, 1/4" flare, 5kW, 3.8kW, 5.1kW, R22, R23, R32, R134A, R290, R404A, R407A, R407C, R407F, R410A, R417A, R438A, R448A, R449A, R450A, R452A, R452B, R454A (XL40), R454C (XL20), R455A, R507, R513A, R600, R600A, R1234YF, R1234ZE, EVR 3
5702428093095
Danfoss

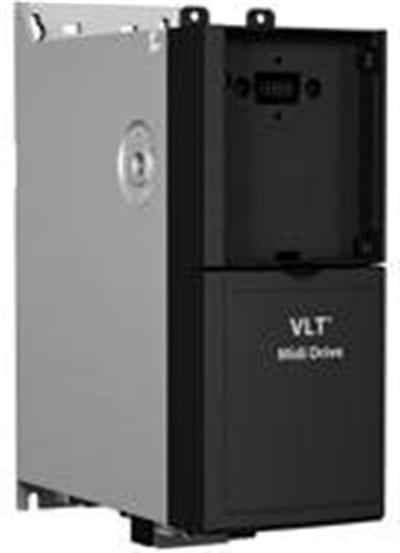

Danfoss FC 280 Midi Drive VLT frequency converter Profibus, without panel - IP 20, 3X400V, 1.1kW
2365120364
Danfoss

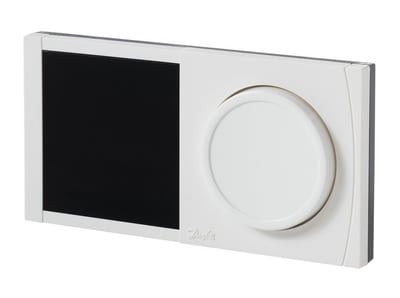

Danfoss ECA 30 Remote Control - ECL Comfort 210/310
087H3200
Danfoss

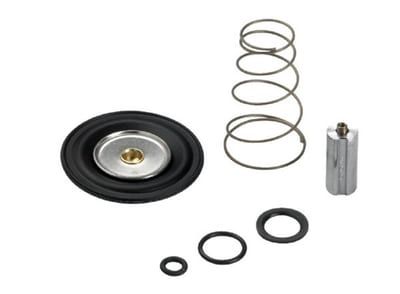

Danfoss Spare Part Set - 10248420
