Product Description

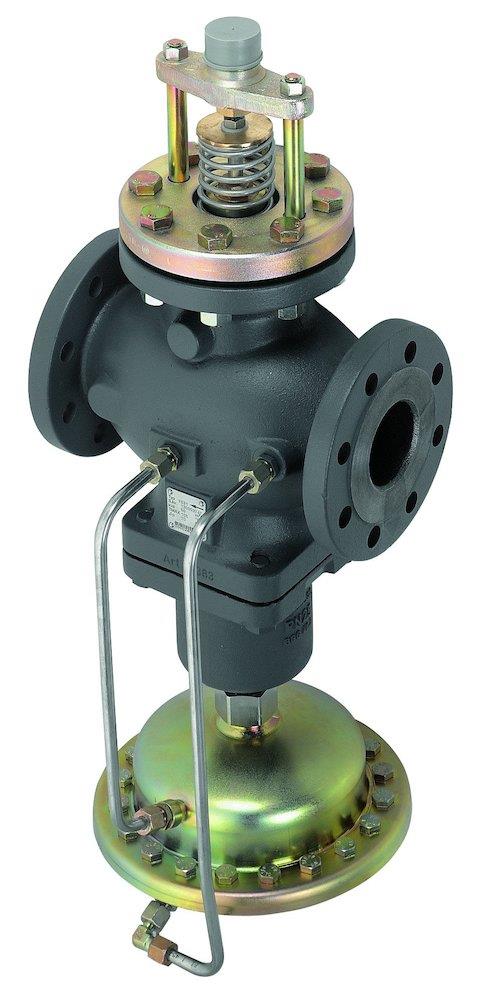

Danfoss AFQM Flow Limiter. Control valves and accessories (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 100, connection Flange/flange, kvs value 125 m³/h. Supplied under manufacturer part number 003G6065, EAN 5710104501444, HS code 8481.80, country of origin Slovenia.
Technical Specifications
- Product type
- Control valves and accessories
- Product group
- Heat
- DN dimension
- 100
- Connection
- Flange/flange
- Kvs value
- 125 m³/h
- Media temperature min
- 2 °C
- Media temperature max
- 150 °C
- Flow
- 76000
- Flow min
- 12600
- Flow max
- 76000
- Carbon footprint (EPD)
- 416.5364 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 84818059
- HS code
- 8481.80
- Manufacturer part number
- 003G6065
- VVS number
- 461047416
- EAN
- 5710104501444
- Net weight
- 110 Kilogram
- Type
- AFQM
- Actuator diaphragm material
- EPDM (Rolling, fibre enforced)
- Actuator size [cm²]
- 250 cm²
- Application
- District Heating
- Cavitation factor
- 0.35
- Cavitation factor 100%
- 0.31
- Cavitation factor 25%
- 0.35
- Cavitation factor 50%
- 0.38
- Cavitation factor 75%
- 0.42
- China RoHS compliance
- Out of scope
- Connection size
- DN 100
- Connection types
- Flange
- Description
- AFQM PN16 100/125 /0,5 flange flow/ret
- Diameter [mm]
- 100 mm
- Differential pressure range [bar] [Max]
- 15 bar
- EU RoHS compliance
- Yes with exemptions
- Flow control
- Yes
- Flow limitation
- Yes
- Flow rate [m³/h]
- 76 m³/h
- Flow rate [m³/h] [Max]
- 76 m³/h
- Flow rate [m³/h] [Min]
- 12.6 m³/h
- Flow restrictor diff.pressure - dpb [bar]
- 0.5 bar
- Function
- Flow controller with int. control valve
- Function VSP - P
- No
- Function VSP - Q
- No
- Function VSP - T
- No
- Kvs values [m³/h]
- 125 m³/h
- Leakage rate [% Kvs]
- 0.01
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 150 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Free
- Number of ports
- 2
- Permissible media
- District heating/cooling circulation water
- PN alternative VSP
- 10
- Pressure class
- PN 16
- Pressure controller
- No
- Pressure nominal [bar]
- 16 bar
- Pressure relieve system control valve insert
- Bellows (Stainless steel M. No. 1.4571)
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Sealing CV material
- EPDM
- Sealing DP material
- EPDM
- Setting Type
- None
- Stem position
- Normally open
- Stroke [mm]
- 20 mm
- Valve body material
- Grey cast iron EN-GJL-250 (GG-25)
- Valve cone CV material
- Stainless steel mat. No. 1.4404
- Valve cone DP material
- Stainless steel, mat. No. 1.4404
- Valve seat material
- Stainless steel, mat. No. 1.4021
- Valve size
- DN 100
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 003G6065
- EAN 5710104501444
- VVS 461047416
