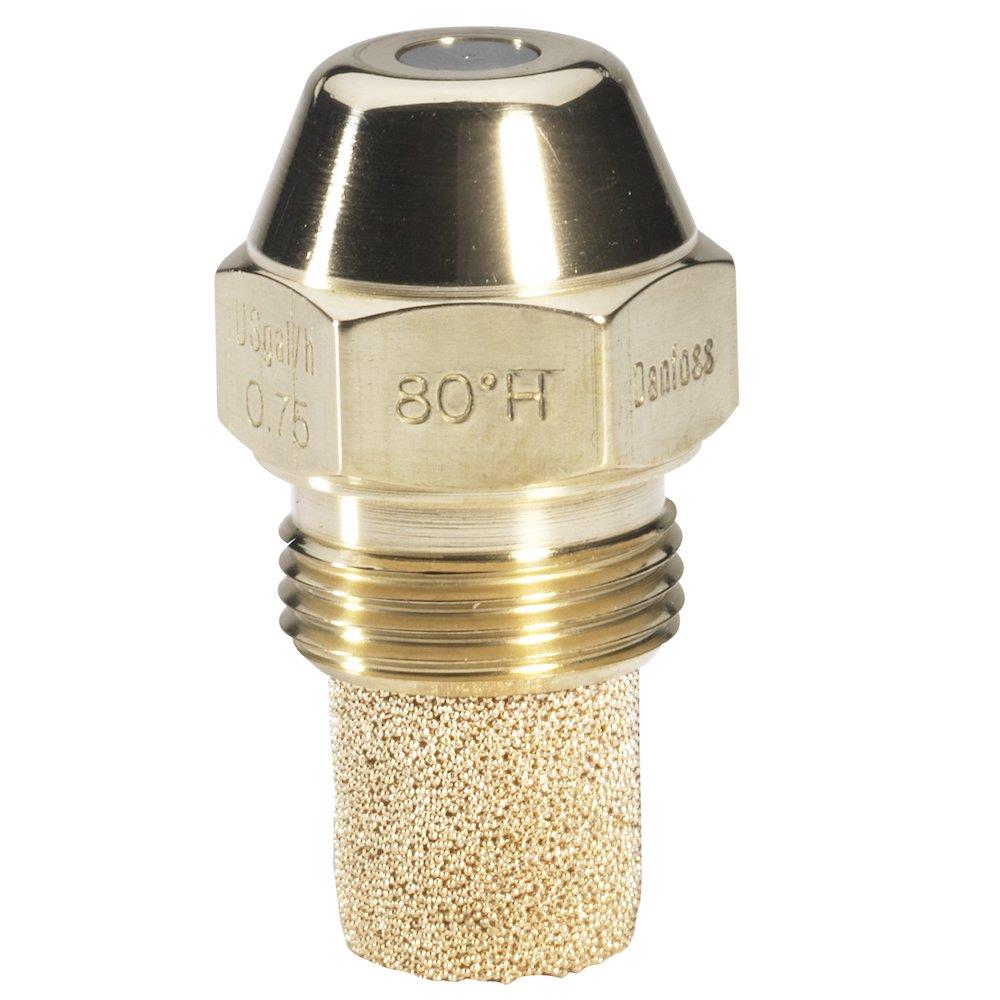

Danfoss H Oil nozzle - 3.31KG/h, 1.5US gal/h, 80gr, H, blue
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss H Oil nozzle. Oil pumps and accessories (Plumbing / Heat / Valves for heating and cooling systems). Principal data: capacity 3.31 kg/h, output per hour 1.5 US gal/h, beam angle 80°, spread pattern H. Supplied under manufacturer part number 030H8918, EAN 5702425016783, HS code 8416.90, country of origin Denmark.
Technical Specifications
- Product type
- Oil pumps and accessories
- Product group
- Heat
- Capacity
- 3.31 kg/h
- Output per hour
- 1.5 US gal/h
- Beam angle
- 80°
- Spread pattern
- H
- Color
- Blue
- Material
- Brass
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack, Ctn. , Plt.
- Carbon footprint (EPD)
- 0.3029 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84169000
- HS code
- 8416.90
- Manufacturer part number
- 030H8918
- VVS number
- 369252828
- EAN
- 5702425016783
- Net weight
- 0.032 Kilogram
- Type
- OD H
- Capacity [kg/h]
- 3.31 kg/h
- Capacity [l/h]
- 0 L/h
- Capacity [USgal/h]
- 0.85 gal/h
- CE mark
- No
- CEN
- Yes
- China RoHS compliance
- Yes
- Description
- 0.85GAL 80H CEN
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)-I
- Filter grade [µm]
- 45
- Filter type
- Sintered
- LE anti-drip valve
- No
- Material type
- Brass
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Reference point
- 7 bar, 3.4 cSt, 820 kg/m³
- Shape
- Conical
- Specification point
- 10 bar, 3.4 cSt, 840 kg/m³
- Spray angle [°]
- 80 °
- Spray pattern
- Hollow
- spray pattern marking
- H
- UL mark
- No
Standards & Compliance
- HS Code
- 8416.90
Cross References
- MPN 030H8918
- EAN 5702425016783
- VVS 369252828
Product Documentation
