Danfoss MBS 4010 Pressure Transmitter - 1", 0-16bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 4010 Pressure Transmitter. Push buttons (Plumbing / Heat / Valves for heating and cooling systems). Principal data: connection 1", setting range 0-16 bar. Supplied under manufacturer part number 060G2427, EAN 5702423085828, HS code 9026.20, country of origin China.
Technical Specifications
- Product type
- Push buttons
- Product group
- Heat
- Connection
- 1"
- Setting range
- 0-16 bar
- Type
- MBS 4010
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 3.9531 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 90262020
- HS code
- 9026.20
- Manufacturer part number
- 060G2427
- VVS number
- 475156060
- EAN
- 5702423085828
- Net weight
- 0.344 Kilogram
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 0.8 %
- Accuracy, typical [±FS%]
- 0.2 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -10 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- 14 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection
- Angular connector
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- Yes
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702423085828
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 50 bar
- Pressure connection HEX [mm]
- 41 mm
- Pressure connection size
- 1
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 16 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 232 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Gauge (relative)
- Pulse-snubber
- No
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 4010-2211-A1CB11-2
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- HS Code
- 9026.20
Cross References
- MPN 060G2427
- EAN 5702423085828
- VVS 475156060
Product Documentation
More from Danfoss
Danfoss
Danfoss KVP Evaporator Pressure Regulator - 18bar, 8M³/h, 1 1/8" solder, KVP 28
10400994
Danfoss
Danfoss FC 280 Midi Drive VLT frequency converter Profibus, without panel - IP 20, 3X400V, 0.75kW
2365120490
Danfoss
Danfoss DML Dryer Filter - 1/2" solder, R22, R23, R32, R134A, R290, R404A, R407A, R407C, R407F, R410A, R438A, R448A, R449A, R450A, R452A, R452B, R454A (XL40), R454B (XL41), R455A, R507, R513A, R600, R1234YF, R1233ZD, R1234ZE, DML84S
023Z457291
Danfoss
Danfoss VRB 2 Seat Valve 2-Way - 15, 1/2", coupling, 4M³/h
4007150
Danfoss
Danfoss MBS 33 Pressure Transmitter - 1/2", 0-1,6bar
060G3007
Danfoss

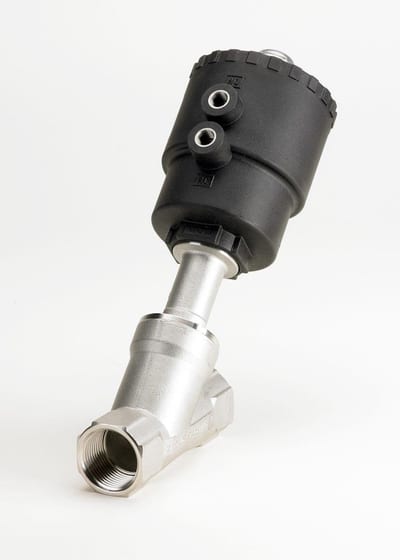

Danfoss AV210C 25B Solenoid Valve PTFE - 1", NO (Normally open)
042N4483
Danfoss

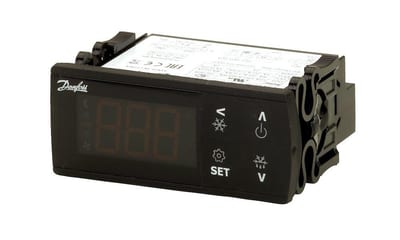

Danfoss ERC Cooling Control panel-mounted - 230V, 2, 4, 2, ERC 214
080G3463
Danfoss

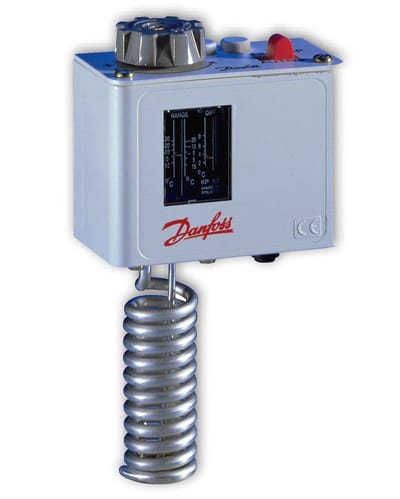

Danfoss KP Thermostat - 40 - 65°C, -30°C, 15°C, Diff. 5 - 20 / 2 - 8 °C, C2, KP 62
