Danfoss AV210C 25B Solenoid Valve PTFE - 1", NO (Normally open)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AV210C 25B Solenoid Valve PTFE. EV220B solenoid valve (Plumbing / Heat / Valves for heating and cooling systems). Principal data: connection 1", valve position NO (Normally open). Supplied under manufacturer part number 042N4483, EAN 5702423194629, HS code 8481.80, country of origin Italy.
Technical Specifications
- Product type
- EV220B solenoid valve
- Product group
- Heat
- Connection
- 1"
- Valve position
- NO (Normally open)
- Differential pressure
- 0 - 16 bar
- Control
- Piston (angled)
- Connection internal/external
- Internal
- Media temperature
- -30 - 180 °C
- Kv value
- 20
- Housing material
- Stainless steel
- Head diameter
- 63 mm
- Closure
- Against flow
- Ambient temperature max
- 60 °C
- Orifice size
- 25 mm
- Operating pressure max
- 25 bar
- Test pressure
- 37.5 bar
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 11.6323 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84818079
- HS code
- 8481.80
- Manufacturer part number
- 042N4483
- VVS number
- 470161708
- EAN
- 5702423194629
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 042N4483
- EAN 5702423194629
- VVS 470161708
Product Documentation
More from Danfoss
Danfoss
Danfoss ERC Cooling Control panel-mounted - 230V, 2, 4, 2, ERC 214
080G3463
Danfoss
Danfoss KP Thermostat - 40 - 65°C, -30°C, 15°C, Diff. 5 - 20 / 2 - 8 °C, C2, KP 62
10248471
Danfoss
Danfoss VF 2 Seat Valve 2-Way - 65, Flange, 63M³/h
10029010
Danfoss
Danfoss FC 202 Aqua Drive VLT frequency converter - IP 55, 3X400V, 4kW
2365109770
Danfoss
Danfoss MBT 5252 Sensor - 1/2", 0°C, 100°C, 200mm
10248067
Danfoss
Danfoss AV210B 20B Solenoid Valve PTFE - 3/4", NO (Normally open)
042N4432
Danfoss

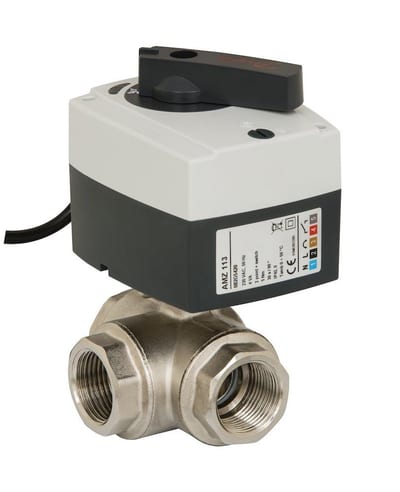

Danfoss AMZ 113 Zone Valve - coupling, 1", 3-Way, 13M³/h, 25, 24V AC
082G5414
Danfoss

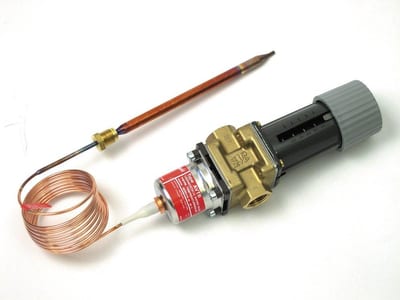

Danfoss AVTB 15 Water Valve with socket connection - 30°C, 100°C, 1.9M³/h, 15
