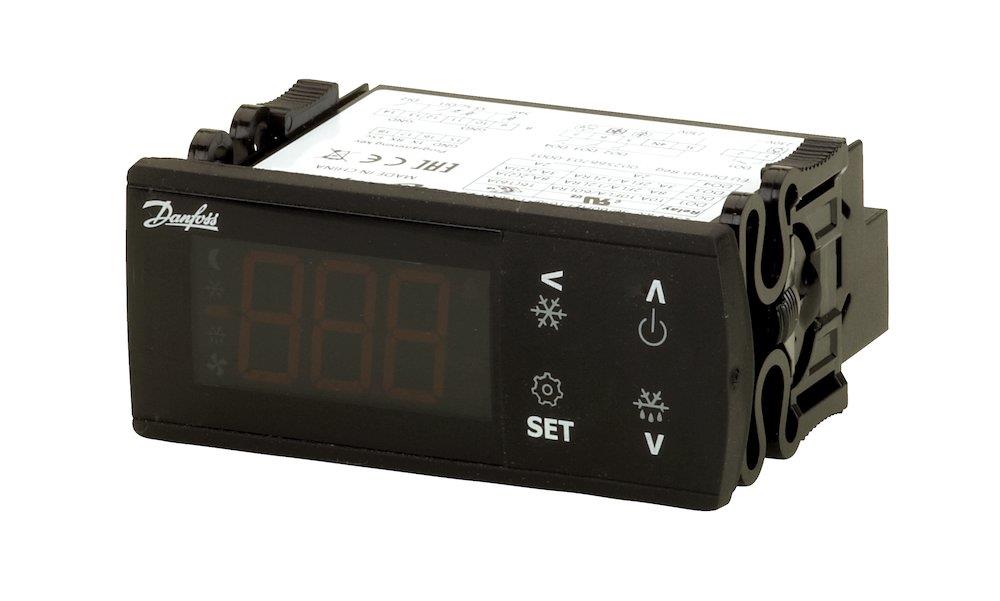

Danfoss ERC Cooling Control panel-mounted - 230V, 2, 4, 2, ERC 214
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ERC Cooling Control panel-mounted. Cooling controls (Refrigeration technology / Cooling controls, alarms, and detectors). Principal data: voltage 230 V, sensors 2, relays 4, digital input 2. Supplied under manufacturer part number 080G3463, EAN 5715162509036, HS code 9032.89, country of origin Denmark.
Technical Specifications
- Product type
- Cooling controls
- Product group
- Cooling controls, alarms, and detectors
- Voltage
- 230 V
- Sensors
- 2
- Relays
- 4
- Digital input
- 2
- Type designation
- ERC 214
- Type description
- Cold room and freezer control
- Sensor type
- PTC 1000/PT 1000/NTC
- Sales unit
- Pack
- Carbon footprint (EPD)
- 2.5698 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 90328900
- HS code
- 9032.89
- Manufacturer part number
- 080G3463
- EAN
- 5715162509036
- Net weight
- 224 Gram
- Type
- ERC 214
- Analog inputs (AI) [pc]
- 4 pc
- China RoHS compliance
- Yes with exemptions
- Digital inputs (DI) [pc]
- 2 pc
- Digital outputs (DO) [pc]
- 4 pc
- Division
- 25
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 7(a)
- In scope of WEEE
- Yes
- Other RoHS documentation
- EAEU RoHS
- PFAS content [Yes/No]
- No
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Supply voltage [V] AC [max]
- 240 V
- Supply voltage [V] AC [min]
- 100 V
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 5715162509036
- MPN 080G3463
