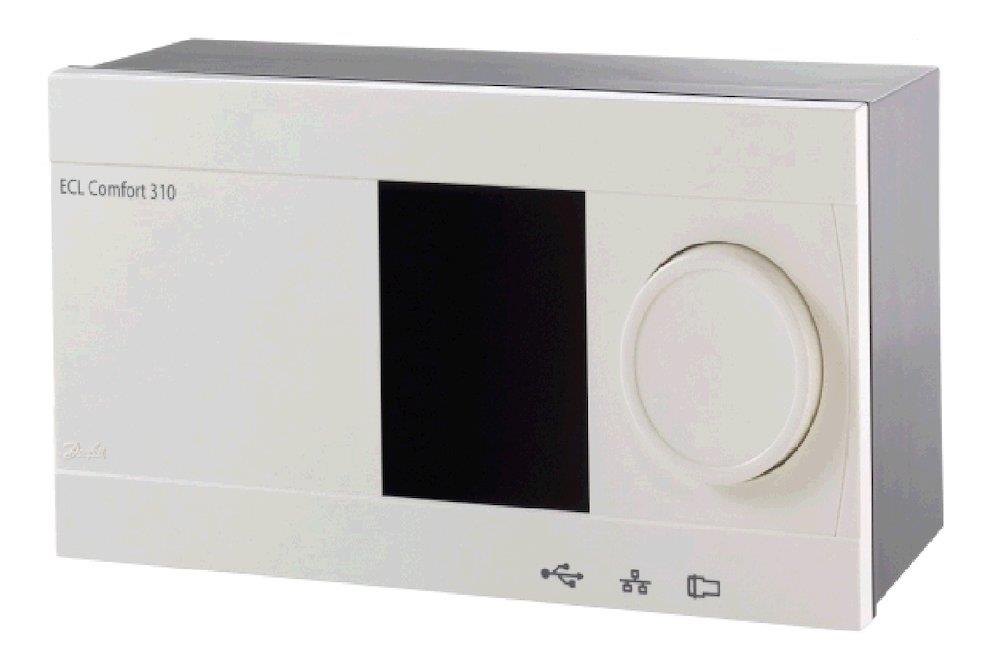

Danfoss ECL Comfort 310 Regulator - 230V AC, ECL 310
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ECL Comfort 310 Regulator. Weather compensation system (Plumbing / Heat / Valves for heating and cooling systems). Principal data: supply voltage 230 V AC, fits with ECL 310. Supplied under manufacturer part number 087H3040, EAN 5710104013244, HS code 9032.89, country of origin China.
Technical Specifications
- Product type
- Weather compensation system
- Product group
- Heat
- Supply voltage
- 230 V AC
- Fits with
- ECL 310
- Leakage class
- IP 41
- Ambient temperature min
- 0 °C
- Ambient temperature max
- 55 °C
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack, Plt.
- Carbon footprint (EPD)
- 5.0343 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 90328900
- HS code
- 9032.89
- Manufacturer part number
- 087H3040
- VVS number
- 460944310
- EAN
- 5710104013244
- Net weight
- 0.476 Kilogram
- Type
- ECL Comfort 310
- Actuator output load [VA]
- 15 VA
- Ambient humidity [% RH] [Max]
- 65 %
- Ambient temperature [°C] [max]
- 55 °C
- Ambient temperature [°C] [min]
- 0 °C
- Application source
- By ECL application key
- Approval
- CE
- Approval standard
- EMC-Directive: 2004/108/EC
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Communications
- ECL 485 Bus (non-galvanically isolated)
- Description
- ECL COMFORT 310/230 V
- DHW functions
- Anti-bacteria program
- Digital inputs type
- 12 V pull-up possible
- Display type
- LCD dot matrix
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- General functions
- Alarm functions
- Grade of enclosure
- IP41
- Heat curve setting for heating circuit
- 6 points
- In scope of WEEE
- Yes
- Number of 3-point motor control outputs
- 3
- Number of comfort periods per day
- 3
- Number of DHW circuits
- 2
- Number of DHW storage tank circuits
- 1
- Number of digital inputs
- 4
- Number of heating circuits
- 3
- Number of pumps
- 5
- Number of relay outputs
- 6
- Number of Sensor inputs
- 10 pc
- Power consumption [W]
- 5 W
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Relay output inductive load [A]
- 2 A
- Relay output ohmic load [A]
- 4 A
- Relay output voltage [V] AC
- 230 V
- Sensor cable length [m]
- 200 m
- Storage temperature [°C] [Max]
- 70 °C
- Storage temperature [°C] [Min]
- -40 °C
- Supply voltage [V] AC
- 230 V
- Supply voltage [V] AC [max]
- 244 V
- Supply voltage [V] AC [min]
- 207 V
- Supply voltage frequency [Hz]
- 50 Hz
- Temperature sensors type
- Pt 1000, configurable input
- Time switch power backup [h]
- 72 h
- Time switch type
- Week
- User input type
- Display
Standards & Compliance
- HS Code
- 9032.89
Cross References
- MPN 087H3040
- EAN 5710104013244
- VVS 460944310
Product Documentation
