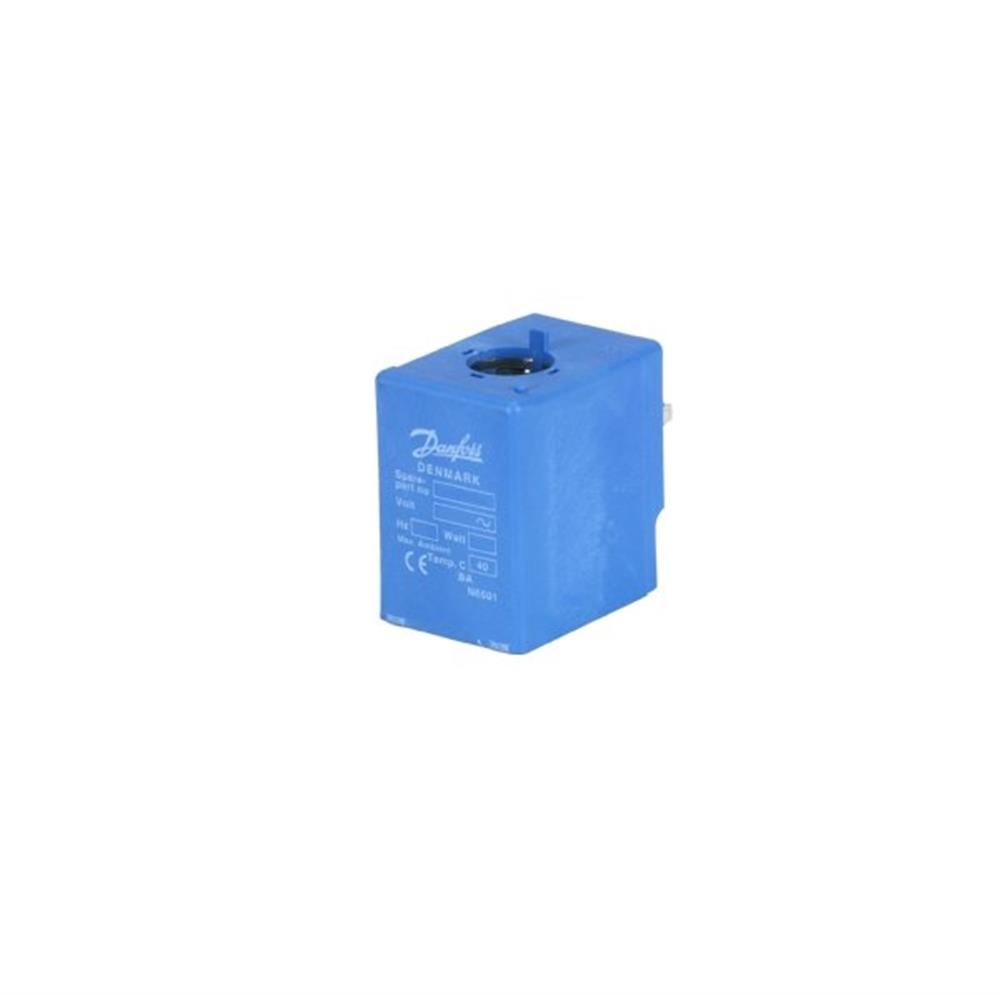

Danfoss Coil - 48 V AC, 10W
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Coil. Coils (Plumbing / Heat / Valves for heating and cooling systems). Principal data: voltage 48 V AC, power 10 W. Supplied under manufacturer part number 042N7510, EAN 5702423020270, HS code 8505.90, country of origin Denmark.
Technical Specifications
- Product type
- Coils
- Product group
- Heat
- Voltage
- 48 V AC
- Power
- 10 W
- Frequency
- 50 Hz
- Carbon footprint (EPD)
- 1.6700 kg CO2e per pcs
- Environmental declaration
- EPD internally verified
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 85059029
- HS code
- 8505.90
- Manufacturer part number
- 042N7510
- VVS number
- 470172048
- EAN
- 5702423020270
- Net weight
- 0.151 Kilogram
- Type
- BA048A
- Actuator size
- 13.5 mm
- Ambient temperature range [°C] [max]
- 40 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 104 °F
- Ambient temperature range [°F] [min]
- -40 °F
- China RoHS compliance
- Out of scope
- Coil connection
- DIN Spade
- Coil design standard
- VDE 0580
- Coil fastening
- Nut and snap
- Coil winding insulation class
- Class H to IEC 85
- Colour
- Blue
- Duty rating
- Continuous
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- DIN Spade
- Electrical connection size
- 6.3 mm x 0.8 mm
- Electrical connection standard
- EN175301-803
- Electrical connector
- 3 x spades
- Enclosure rating IP
- IP00
- EU RoHS compliance
- Yes
- Frequency [Hz]
- 50 Hz
- In scope of WEEE
- Yes
- Parts included
- Nut
- Power consumption 50Hz [VA]
- 18 VA
- Power consumption [W] 50Hz
- 10 W
- REACH Candidate Strip substances
- No
- Rel. Humidity [% RH] [max]
- 97 %
- Rel. Humidity [% RH] [min]
- 0 %
- Rel. Humidity conditions
- Non-condensation
- Supply voltage 50Hz Max [V]
- 48 V
- Type designation
- BA048A
Standards & Compliance
- HS Code
- 8505.90
Cross References
- MPN 042N7510
- EAN 5702423020270
- VVS 470172048
