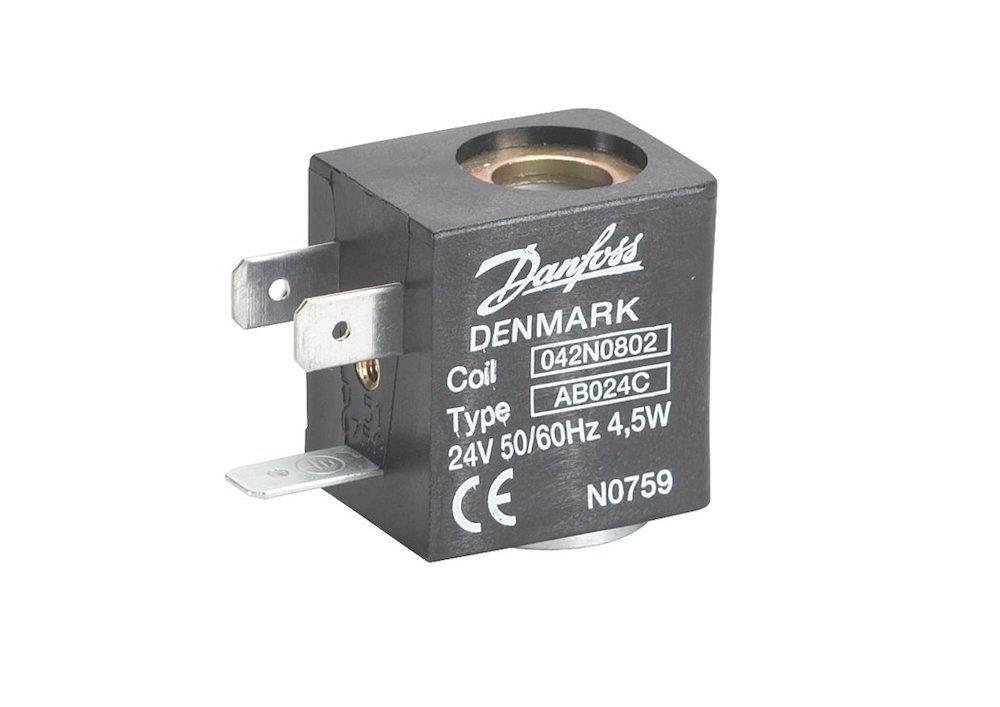

Danfoss Coil - 24 V AC, 4,5W
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Coil. Coils (Plumbing / Heat / Valves for heating and cooling systems). Principal data: voltage 24 V AC, power 4.5 W. Supplied under manufacturer part number 042N0802, EAN 5702423049783, HS code 8505.90, country of origin Italy.
Technical Specifications
- Product type
- Coils
- Product group
- Heat
- Voltage
- 24 V AC
- Power
- 4.5 W
- Frequency
- 50/60 Hz
- Carbon footprint (EPD)
- 0.6700 kg CO2e per pcs
- Environmental declaration
- EPD internally verified
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 85059090
- HS code
- 8505.90
- Manufacturer part number
- 042N0802
- VVS number
- 470400120
- EAN
- 5702423049783
- Net weight
- 0.051 Kilogram
- Type
- AB024C
- Actuator size
- 9 mm
- Ambient temperature range [°C] [max]
- 50 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 122 °F
- Ambient temperature range [°F] [min]
- -40 °F
- China RoHS compliance
- Yes
- Coil connection
- DIN Spade
- Coil fastening
- Finger screw
- Colour
- Black
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- DIN Spade
- Electrical connection size
- 6.3 mm x 0.8 mm
- Electrical connection standard
- EN175301-803
- Electrical connector
- 3 x spades
- Enclosure rating IP
- IP00
- EU RoHS compliance
- Yes
- Frequency [Hz]
- 50/60 Hz
- In scope of WEEE
- Yes
- Power consumption 50Hz [VA]
- 7 VA
- Power consumption 60Hz [VA]
- 6 VA
- Power consumption [W] 50Hz
- 4.5 W
- Power consumption [W] 60Hz
- 4.5 W
- REACH Candidate Strip substances
- No
- Supply voltage 50Hz Max [V]
- 24 V
- Supply voltage 60Hz Max [V]
- 24 V
- Supply voltage [V] AC
- 24 V
- Type designation
- AB024C
Standards & Compliance
- HS Code
- 8505.90
Cross References
- MPN 042N0802
- EAN 5702423049783
- VVS 470400120
Product Documentation
More from Danfoss
Danfoss
Danfoss FC 280 Midi Drive VLT frequency converter with brake chopper - IP 20, 3X400V, 4kW
2365120076
Danfoss
Danfoss ETS electronic expansion valve - ETS 6 - 25
034G5035
Danfoss
Danfoss Ester Oil POE - MTZ, NTZ, 2.5L, 175PZ
120Z0639
Danfoss
Danfoss Spare Part Set - 10024079
032U1067
Danfoss
Danfoss Equalizing Nozzle - 10024074
032U0086
Danfoss
Danfoss MBT 3252 Sensor - 1/2", 150mm
10248007
Danfoss
Danfoss Immersion Tube - 1/2", 100mm 10247974
Danfoss
Danfoss Immersion Tube - 10247987
060L328166
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 042N0802?
- 042N0802 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 042N0802.
- What is the HS code for 042N0802?
- The customs tariff (HS) code for 042N0802 is 8505.90.
- Who manufactures 042N0802?
- 042N0802 is a Danfoss product in the HVAC & Refrigeration range.
- Is a datasheet available for 042N0802?
- Yes — the 042N0802 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 042N0802?
- The minimum order quantity is 1.
- Is 042N0802 available?
- Yes — 042N0802 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
