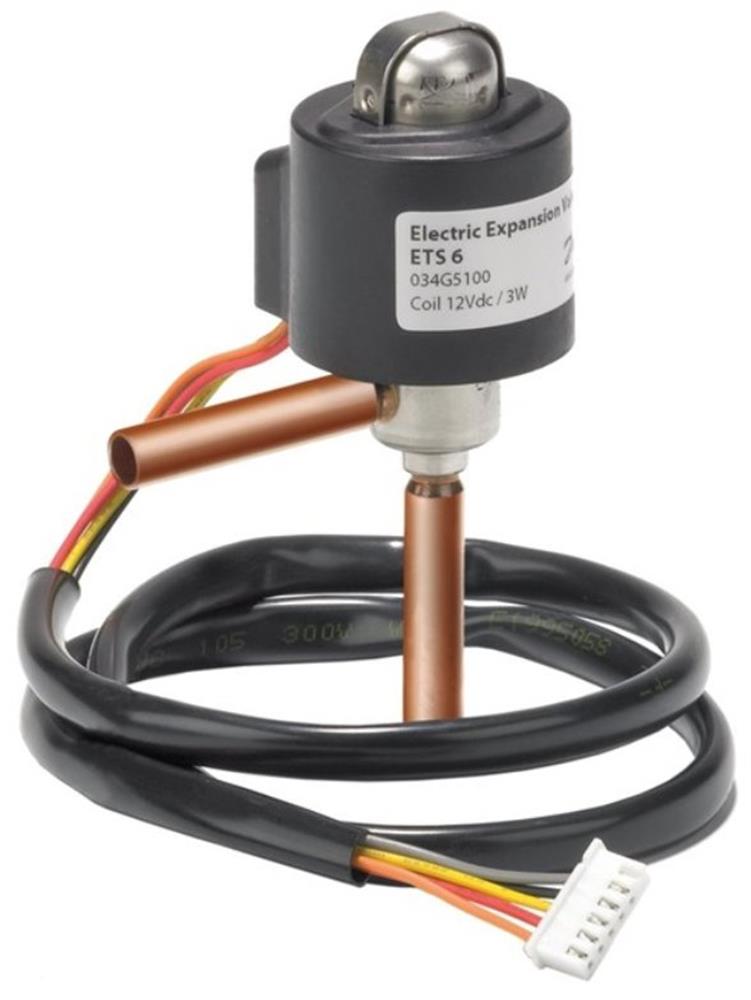

Danfoss ETS electronic expansion valve - ETS 6 - 25
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ETS electronic expansion valve. Electronic expansion valves (Refrigeration technology / Cooling technical components / Expansion valves). Principal data: type designation ETS 6 - 25. Supplied under manufacturer part number 034G5035, HS code 8481.80, country of origin Japan.
Technical Specifications
- Product type
- Electronic expansion valves
- Product group
- Cooling technical components
- Type designation
- ETS 6 - 25
- Carbon footprint (EPD)
- 0.6148 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 84818099
- HS code
- 8481.80
- Manufacturer part number
- 034G5035
- EAN
- 5702428825511
- Net weight
- 0.054 Kilogram
- Type
- ETS 6 - 25
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -30 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -22 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Compatible Danfoss controllers
- EIM 336
- Connection Code
- (3002:X:8)
- Connection material
- Copper
- Connection type
- Solder, ODF
- Direction
- Angleway
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Fluid Group
- 2
- Full travel time speed [s] [max]
- 16 s
- Full travel time speed [s] [min]
- 6 s
- Identical product
- 034G5030
- Inlet size [in]
- 5/16 in
- Inlet size [mm]
- 7.94 mm
- Lubricants compatibility
- MO
- Manual operation option
- AST-G service driver
- Max. Working Pressure [bar]
- 47 bar
- Max. Working Pressure [psig]
- 681 psig
- MaxOPD [bar]
- 35 bar
- MaxOPD [psig]
- 507 psig
- MOPD[bar/psi]
- 35 bar
- Motor type
- Permanent magnet stepper motor
- Orifice size [mm]
- 2.5 mm
- Outlet size [in]
- 5/16 in
- Outlet size [mm]
- 7.94 mm
- PED category
- Art. 4, par. 3
- Rated cap. conditions [IMP]
- Subcooling=32 ºF
- Rated cap. conditions [SI]
- Subcooling=0 ºc
- Rated cap. R404A/R507A [kW]
- 13.8 kW
- Rated cap. R404A/R507A [TR]
- 3.92 TR
- Rated capacity R134a [kW]
- 15.3 kW
- Rated capacity R134a [TR]
- 4.35 TR
- Rated capacity R22 [kW]
- 19.6 kW
- Rated capacity R22 [TR]
- 5.57 TR
- Rated capacity R407C [kW]
- 20.1 kW
- Rated capacity R407C [TR]
- 5.72 TR
- Rated capacity R410A [kW]
- 23 kW
- Rated capacity R410A [TR]
- 6.54 TR
- REACH Candidate Strip substances
- No
- Refrigerant temperature [ºC] [max]
- 70 °C
- Refrigerant temperature [ºC] [min]
- -30 °C
- Refrigerant temperature [ºF] [max]
- 158 °F
- Refrigerant temperature [ºF] [min]
- -22 °F
- Refrigerants
- R1234yf
- Step mode
- 2-phase full step
- Total steps
- 480 (half steps)
- UL approved refrigerants
- R134a
- UL mark
- Yes
