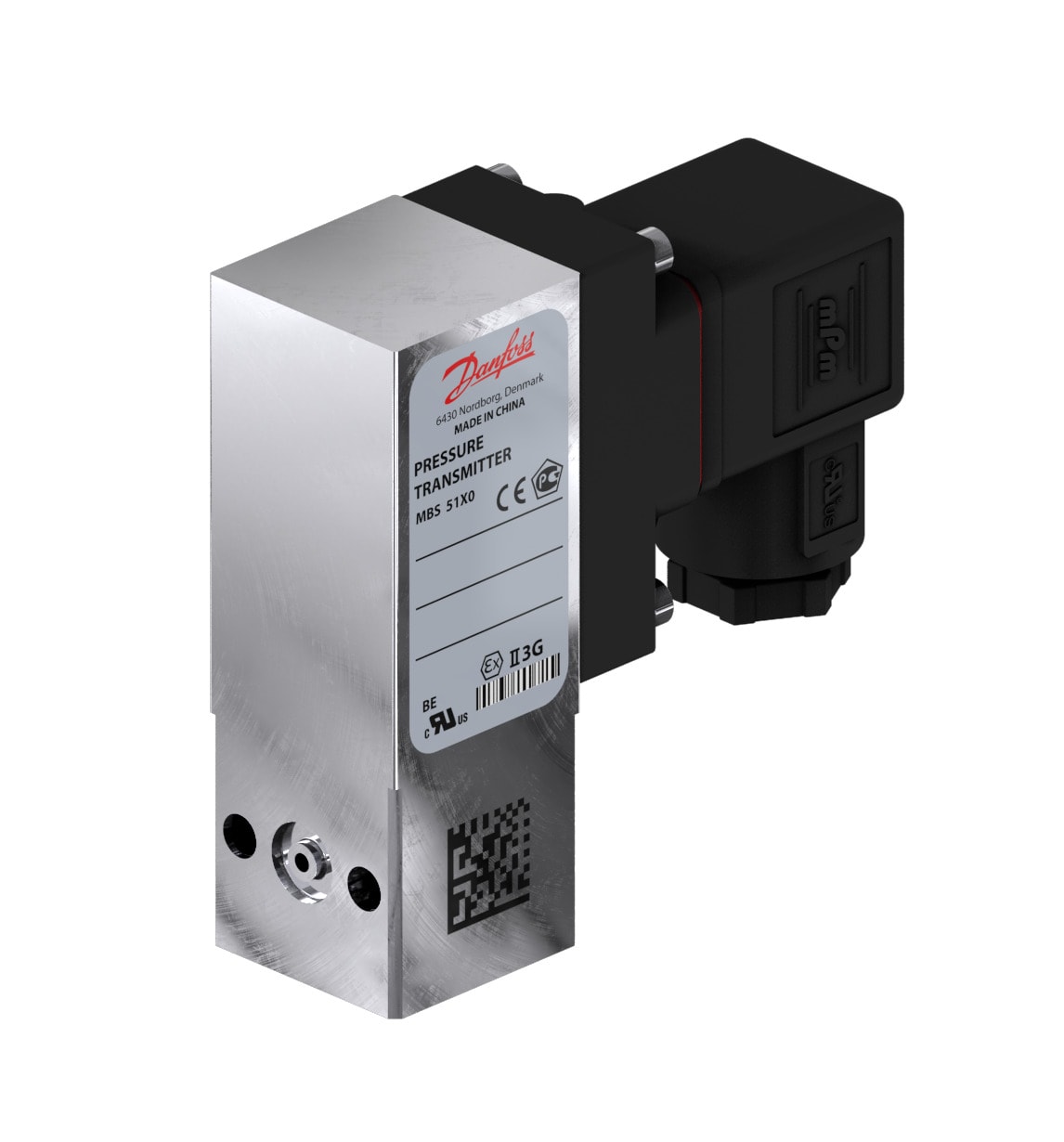

Danfoss block transmitter MBS 5100,4-20MA — 0/100bar

Danfoss block transmitter MBS 5100,4-20MA — 0/100bar. Reference part number 060N1041.

Code number

060N1041

EAN

5702423059379

Net weight

0.332 Kilogram

- common

Pin 2

+ supply

Pin 1

Accuracy, max. [±FS%]

0.30 %

Accuracy, typical [±FS%]

0.1 %

Adj. zero point and span

No

Approval

C UL US UL Recognized; CE

CE mark

Yes

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 11

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

Flush diaphragm

No

High Clipping Level

22.40

Intrinsically safe

No

Low Clipping level

3.60

Non-linearity BFSL [±FS%]

0.20 %

Output signal

Current

Overload pressure max. [bar]

200.0 bar

Pressure connection notes

With flange

Pressure connection size

1/4

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Female

Pressure reference

Sealed gauge

Product group

Sensors

Product line

Sensing Solutions

Product Type

MBS 5100

Pulse-snubber

No

Response time max. [ms]

4 ms

Specification key

MBS 5100-3031-A6DB04-4

Test Signal

PIN 3

UL mark

Yes

Ambient temperature range [°C]

-40 °C … 85 °C

Compensated temp. range [°C]

0 °C … 80 °C

Medium temperature range [°C]

-40 °C … 85 °C

Output signal [mA]

4 mA … 20 mA

Pressure range [bar]

0.00 bar … 100.00 bar

Supply voltage [V] DC

9.00 V … 32.00 V

Measuring range

0–100 bar

Gross weight

0.403 Kilogram

Volume

0.647 Liter

Type

MBS 5100

Product Name Description

Pressure transmitter

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

International Article Number

5702423059379

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Pressure range [bar] [max]

100 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

1450 psi

Pressure range [psi] [min]

0 psi

REACH Candidate Strip substances

Lead (CAS no. 7439-92-1)

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

• EAN 5702423059379
