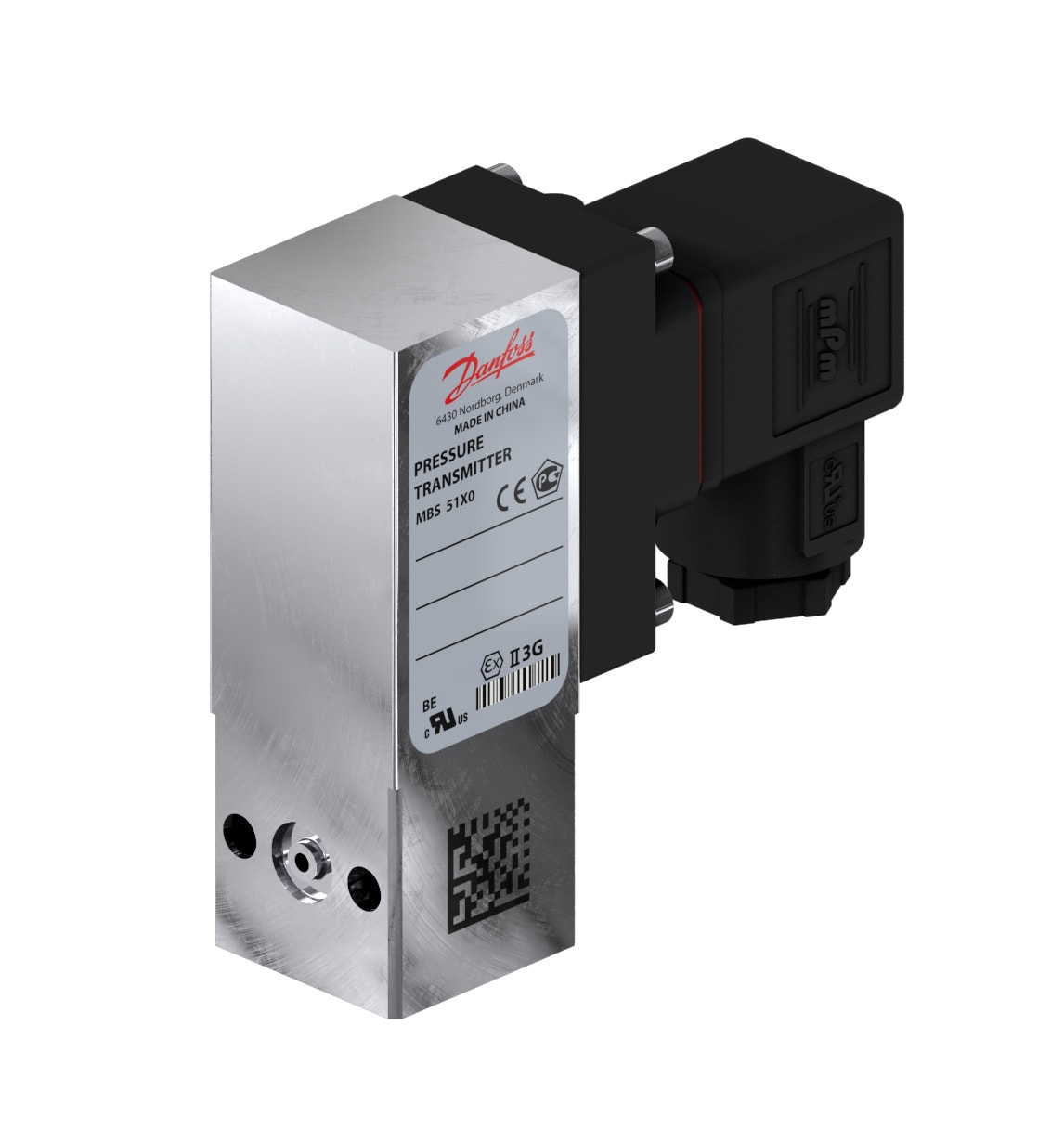

Danfoss block transmitter MBS 5100,4-20MA — 0/2,5 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss block transmitter MBS 5100,4-20MA — 0/2,5 bar. Reference part number 060N1033.
Technical Specifications
- Code number
- 060N1033
- EAN
- 5702423059362
- Net weight
- 0.332 Kilogram
- - common
- Pin 2
- + supply
- Pin 1
- Accuracy, max. [±FS%]
- 0.30 %
- Accuracy, typical [±FS%]
- 0.1 %
- Adj. zero point and span
- No
- Approval
- C UL US UL Recognized; CE
- CE mark
- Yes
- Electrical conn. Male/Female
- Male and Female
- Electrical connection
- Angular connector
- Electrical connection size
- Pg 11
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- Flush diaphragm
- No
- High Clipping Level
- 22.40
- Intrinsically safe
- No
- Low Clipping level
- 3.60
- Non-linearity BFSL [±FS%]
- 0.20 %
- Output signal
- Current
- Overload pressure max. [bar]
- 8.0 bar
- Pressure connection notes
- With flange
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Female
- Pressure reference
- Gauge (relative)
- Product group
- Sensors
- Product line
- Sensing Solutions
- Product Type
- MBS 5100
- Pulse-snubber
- No
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 5100-1411-A6DB04-4
- Test Signal
- PIN 3
- UL mark
- Yes
- Ambient temperature range [°C]
- -40 °C … 85 °C
- Compensated temp. range [°C]
- 0 °C … 80 °C
- Medium temperature range [°C]
- -40 °C … 85 °C
- Output signal [mA]
- 4 mA … 20 mA
- Pressure range [bar]
- 0.00 bar … 2.50 bar
- Supply voltage [V] DC
- 9.00 V … 32.00 V
- Measuring range
- 0–2.5 bar
- Gross weight
- 0.403 Kilogram
- Volume
- 0.647 Liter
- Type
- MBS 5100
- Product Name Description
- Pressure transmitter
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- International Article Number
- 5702423059362
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Pressure range [bar] [max]
- 2.5 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 36.25 psi
- Pressure range [psi] [min]
- 0 psi
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
