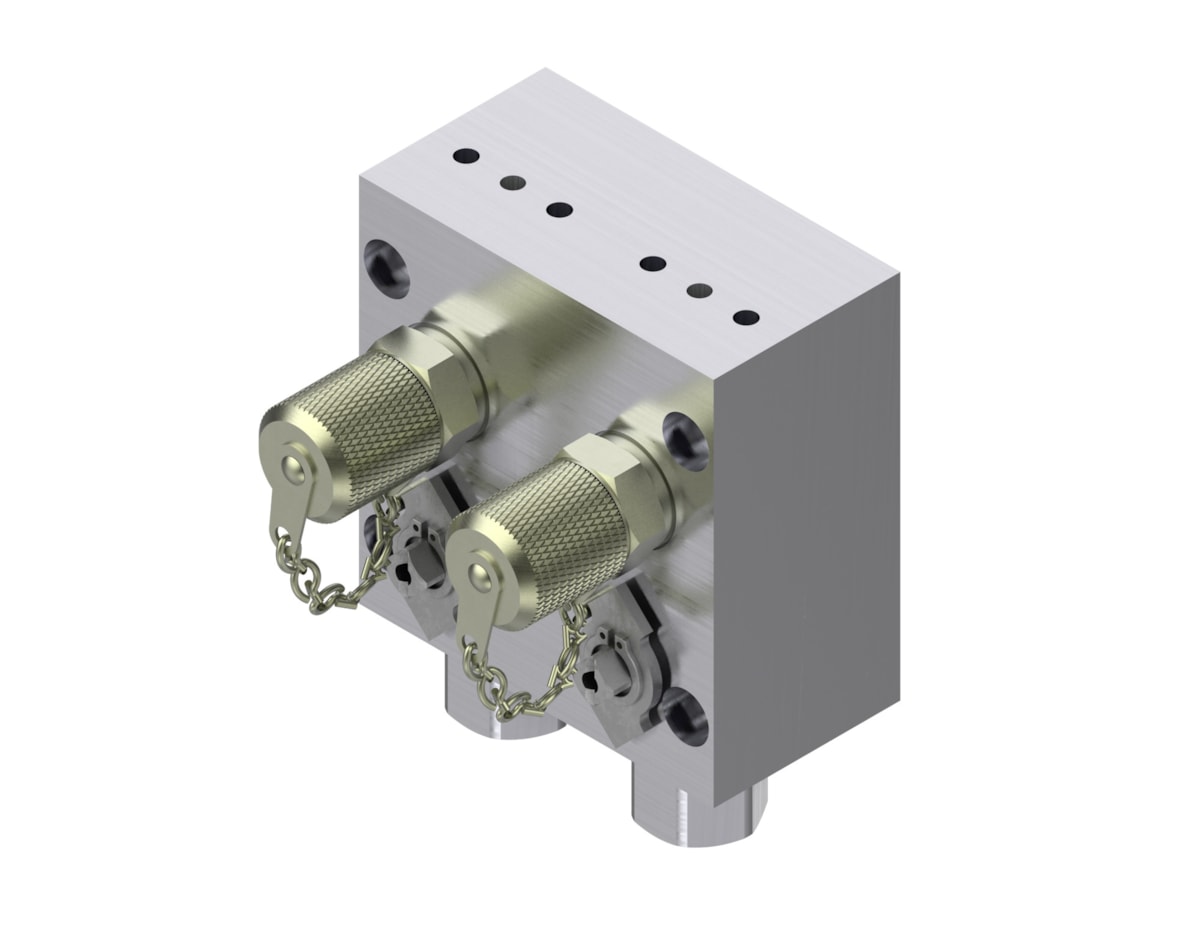

Danfoss 061B7001 MBV 5000 Test Valve — 2 Inlets / 2 Outlets, Separate Test Function, G 1/4 Flange Connection

The Danfoss 061B7001 is an MBV 5000 test valve — a shut-off and test manifold that sits between the system and a pressure transmitter or pressure switch. It lets the transmitter be isolated, checked against a reference gauge and changed without draining or shutting down the plant, which is what makes it standard fitting on commercial refrigeration and air-conditioning pressure circuits where the alternative is pumping down the system to swap a sensor. This version has 2 inlets and 2 outlets, with a separate test function, so each line can be tested independently of the others. The test point takes a MiniMess coupling, which is included, so a gauge or datalogger can be connected under pressure without breaking into the circuit. Pressure connection is G 1/4 female to DIN 3852-E, and the outlet connection is flanged. Working pressure range is 0 bar to 120 bar (0 bar to 180 bar on oil). Ambient temperature range -20 °C to 120 °C. Manufacturer part number (code number) 061B7001. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Code number

061B7001

EAN

5702423058983

Net weight

0.8 Kilogram

Approval

EAC; LLC CDC EURO-TYSK; RoHS

EU RoHS compliance

Out of scope

MiniMess included

Yes

Number of inputs [pc]

2 pc

Number of outputs [pc]

2 pc

Output connection type

Flange

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Female

Pressure thread conn standard

ISO 228-1

Product group

Shut-off and regulating valves

Product line

Air Conditioning and Commercial Refrigeration

Product Type

MBV 5000

Pulse-snubber

No

Specification key

MBV5000-1211

Test function

Separate

Test pressure connection size

16 x 2

Test pressure connection type

M

Ambient temperature range [°C]

-20 °C … 120 °C

Pressure range (Pi) [bar]

0 bar … 120 bar

Pressure range (Pi) [bar] oil

0 bar … 180 bar

Gross weight

0.864 Kilogram

Volume

1.118 Liter

Type

MBV 5000

Product Name Description

Test valve

Ambient temperature range [°C] [max]

120 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

248 °F

Ambient temperature range [°F] [min]

-4 °F

China RoHS compliance

Out of scope

Pressure range (Pi) [bar] [max]

120 bar

Pressure range (Pi) [bar] [min]

0 bar

Pressure range (Pi) [bar] oil [max]

180 bar

Pressure range (Pi) [bar] oil [min]

0 bar

REACH Candidate Strip substances

Lead (CAS no. 7439-92-1)

Product family

Danfoss MBV 5000 test valve (manifold)

Device type

Shut-off and test valve manifold for pressure transmitters

Configuration

2 inlets / 2 outlets

Test connection

MiniMess (included)

Typical application

Isolation and testing of pressure transmitters and pressure switches in refrigeration and air-conditioning plant

• EAN 5702423058983
• Danfoss code number 061B7001
• MBV 5000 2in/2out
