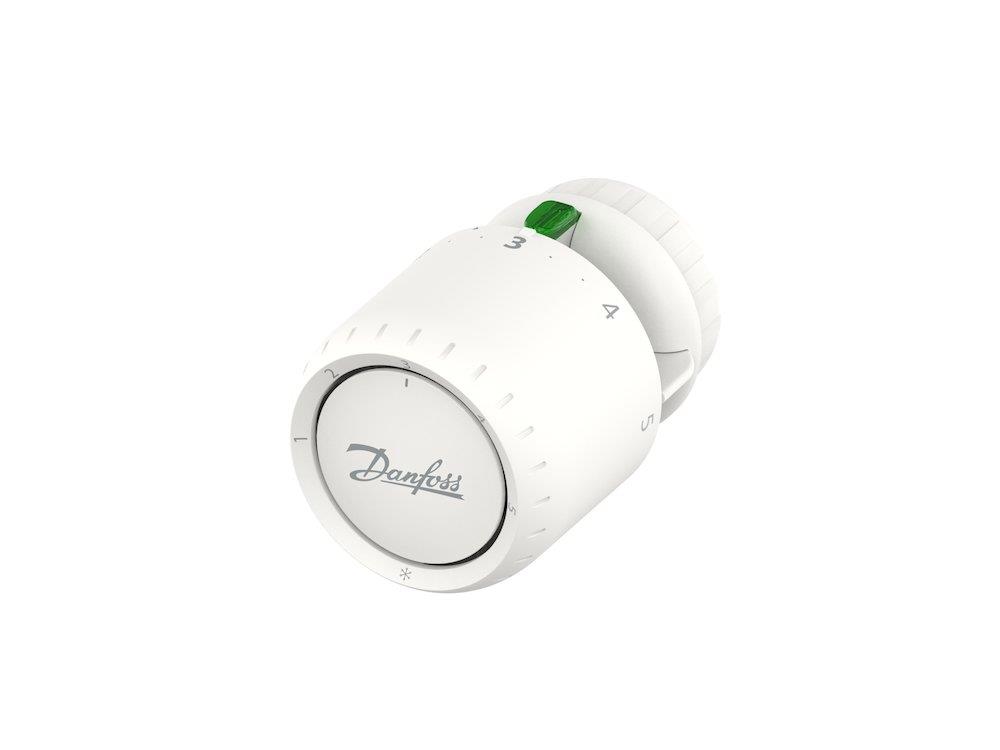

Danfoss Aveo Sensor Element - RA snapkobling, Built-in 10352391
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Aveo Sensor Element. Thermostats and sensing elements (Plumbing / Heat / Radiators, valves & accessories). Principal data: connection RA snapkobling, sensor type Built-in. Supplied under manufacturer part number 015G4090, EAN 5715162436417, HS code 9032.10, country of origin Denmark.
Technical Specifications
- Product type
- Thermostats and sensing elements
- Product group
- Heat
- Connection
- RA snapkobling
- Sensor type
- Built-in
- Color
- White
- Setting temperature min
- 7 °C
- Setting temperature max
- 28 °C
- Sales unit
- Ctn. , Plt.
- Carbon footprint (EPD)
- 0.8920 kg CO2e per pcs
- Environmental declaration
- EPD internally verified
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 90321080
- HS code
- 9032.10
- Manufacturer part number
- 015G4090
- VVS number
- 403224090
- EAN
- 5715162436417
- Net weight
- 0.156 Kilogram
- Type
- Danfoss Aveo® Sensors
- CE mark
- No
- China RoHS compliance
- Out of scope
- Colour
- White RAL 9016
- Connection type sensor
- RA-click
- Connection type to valve
- RA
- Contents of set
- Sensor
- Description
- Danfoss Aveo™ thermostatic sensor for Danfoss RA valves. Tactile feedback for improved user experience.
- EN 215 Certified
- Yes
- EPD available
- Yes
- EU RoHS compliance
- Yes
- Frost protection
- Yes
- Limiter pins
- Yes
- Product height [mm]
- 56 mm
- Product length [mm]
- 84 mm
- Product width [mm]
- 56 mm
- REACH Candidate Strip substances
- No
- Response time [m]
- 10 min
- Sensor design
- Danfoss Aveo®
- Sensor media
- Gas
- Sensor setting temperature [°C] [Max]
- 28 °C
- Sensor setting temperature [°C] [Min]
- 7 °C
- Sensor setting temperature [°F] [Max]
- 82 °F
- Sensor setting temperature [°F] [Min]
- 45 °F
- Sensor version
- Standard
- Shut-off function
- No
- Temperature limitation
- Yes
- UL mark
- No
- Zero-blocking
- No
Standards & Compliance
- HS Code
- 9032.10
Cross References
- MPN 015G4090
- EAN 5715162436417
- VVS 403224090
Product Documentation
