Product Description

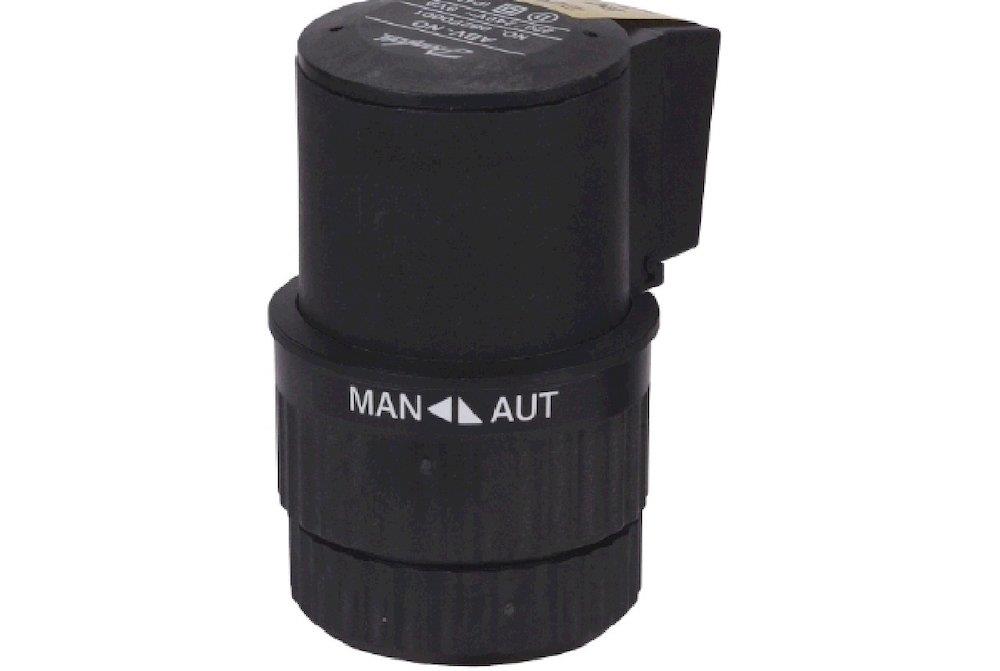

Danfoss ABV-NO Thermo Motor with manual control on/off. Engines/thermal engines (Plumbing / Heat / Valves for heating and cooling systems). Principal data: supply voltage 230 V AC, speed 135 mm/s. Supplied under manufacturer part number 082F0001, EAN 5702421509289, HS code 8414.51, country of origin Slovenia.
Technical Specifications
- Product type
- Engines/thermal engines
- Product group
- Heat
- Supply voltage
- 230 V AC
- Speed
- 135 mm/s
- Protection class (IP)
- 41
- Power max
- 80 nm
- Ambient temperature
- 0-55 °C
- REACH SVHC substance above 0.1%
- Lead
- Sales unit
- Pack, Plt.
- Carbon footprint (EPD)
- 1.7442 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 84145100
- HS code
- 8414.51
- Manufacturer part number
- 082F0001
- VVS number
- 460947730
- EAN
- 5702421509289
- Net weight
- 0.308 Kilogram
- Type
- ABV
- Actuator speed [s/mm]
- 540 s/mm
- Actuator type
- Thermo-pneumatic
- Ambient temperature [°C] [max]
- 60 °C
- Ambient temperature [°C] [min]
- 0 °C
- Application
- flow temperature
- China RoHS compliance
- Out of scope
- Control signal type
- 2-point
- Description
- ABV NO-220V AKT
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Frequency [Hz]
- 50/60
- Grade of enclosure
- IP41
- Manual operation
- Yes
- Power consumption [W]
- 9 W
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Safety function
- No
- Speed type
- Standard
- Spring down (return)
- No
- Spring up
- No
- Storage temperature [°C] [Max]
- 70 °C
- Storage temperature [°C] [Min]
- -40 °C
- Supply voltage [V]
- 230 V AC
- Turn time per 90° [s]
- 0 "
Standards & Compliance
- HS Code
- 8414.51
Cross References
- MPN 082F0001
- EAN 5702421509289
- VVS 460947730
