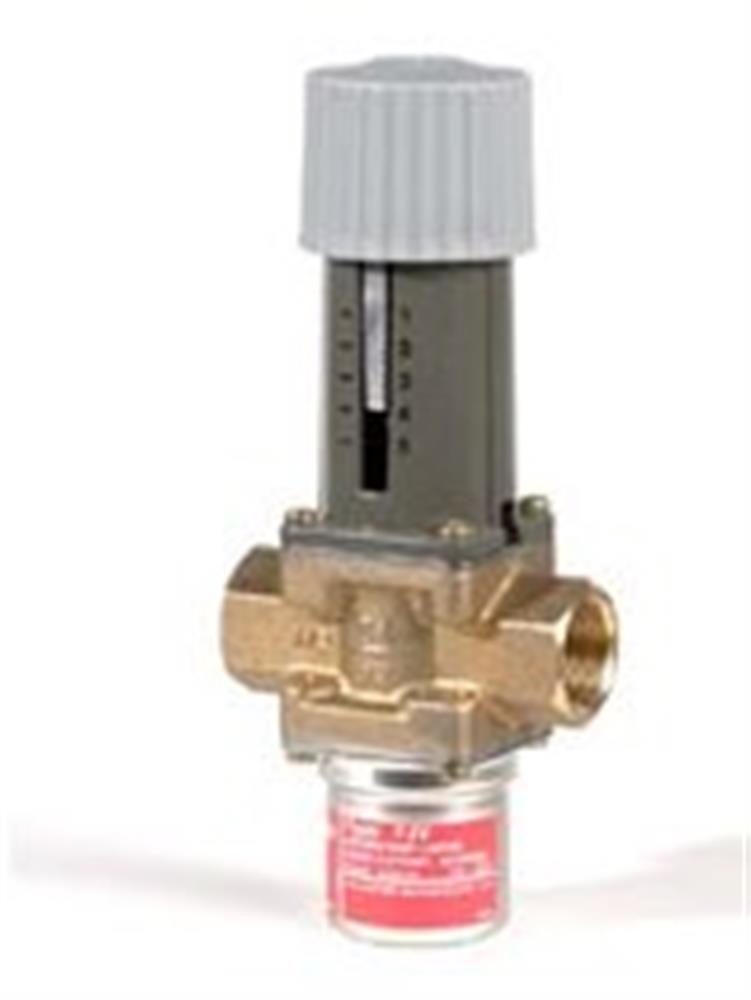

Danfoss FJV 15 Return Flow Thermostat with socket connection - 20°C, 60°C, 1.9M³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FJV 15 Return Flow Thermostat with socket connection. Valves and fittings return (Plumbing / Heat / Radiators, valves & accessories). Principal data: setting temperature min 20 °C, setting temperature max 60 °C, kvs value 1.9 m³/h. Supplied under manufacturer part number 003N2250, EAN 5702421100141, HS code 8481.80, country of origin Poland.
Technical Specifications
- Product type
- Valves and fittings return
- Product group
- Heat
- Setting temperature min
- 20 °C
- Setting temperature max
- 60 °C
- Kvs value
- 1.9 m³/h
- Thread
- 1/2"
- Media temperature max
- 130 °C
- Pressure PN
- 16 bar
- Sales unit
- Pack, Plt.
- Carbon footprint (EPD)
- 10.7054 kg CO2e per pcs
- Country of origin
- Poland
- Customs tariff code (EU CN)
- 84818051
- HS code
- 8481.80
- Manufacturer part number
- 003N2250
- VVS number
- 406010004
- EAN
- 5702421100141
- Net weight
- 1.294 Kilogram
- Type
- FJV
- Ambient temperature [°C] [max]
- 70 °C
- Ambient temperature [°C] [min]
- 0 °C
- Approval standard
- ETA VA 1.54/18952
- Capillary tube length [m]
- 2 m
- Cavitation factor
- 0.4
- China RoHS compliance
- Out of scope
- Cone /seat sealing material
- NBR / Brass W. No 2.0402
- Connection size
- Rp 1/2
- Connection standard
- ISO 7/1
- Connection types
- Internal thread
- Description
- FJV 15 Thermostatic valve 20-60#C
- Diameter [mm]
- 15 mm
- Differential pressure range [bar] [Max]
- 10 bar
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flow characteristic
- Linear
- Flow control
- No
- Function
- Temp. limiter
- Function VSP - P
- No
- Function VSP - Q
- No
- Function VSP - T
- Yes
- Kvs values [m³/h]
- 1.9 m³/h
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 130 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Return
- Number of ports
- 2
- Permissible media
- District heating/cooling circulation water
- PN alternative VSP
- 10
- Pressure class
- PN 16
- Pressure nominal [bar]
- 16 bar
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Return limiter function
- Yes
- Temperature control
- No
- Temperature setting range [°C] [Max]
- 60 °C
- Temperature setting range [°C] [Min]
- 20 °C
- Transport temperature [°C] [Max]
- 50 °C
- Transport temperature [°C] [Min]
- -20 °C
- Valve body material
- Brass CuZn40Pb2 W. no 2.0402
- Valve cone material
- NBR rubber
- Valve seat material
- Cr Ni steel W.no 1.4301
- Valve size
- DN 15
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 003N2250
- EAN 5702421100141
- VVS 406010004
Product Documentation
More from Danfoss
Danfoss
Danfoss Spare Part Set - 10024078
032U1066
Danfoss
Danfoss S Oil nozzle - 2.67KG/h, 0.65US gal/h, 80gr, S
030F8914
Danfoss
Danfoss AVTB 20 Water Valve with nipple connection - 20°C, 60°C, 3.4M³/h, 20
003N5115
Danfoss
Danfoss T2/TE2 Nozzle insert flare - 2, T2 - serie, Dyse 02 T2
068-2015
Danfoss
Danfoss MSV-BD Leno Handle - 15-50
003Z4652
Danfoss
Danfoss MBS 4010 Pressure Transmitter - 1", 0-4bar
060G2424
Danfoss
Danfoss Spare Part Set - 10024005
Danfoss

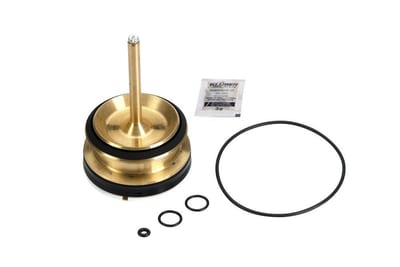

Danfoss Spare Part Set - 10024092
