Product Description

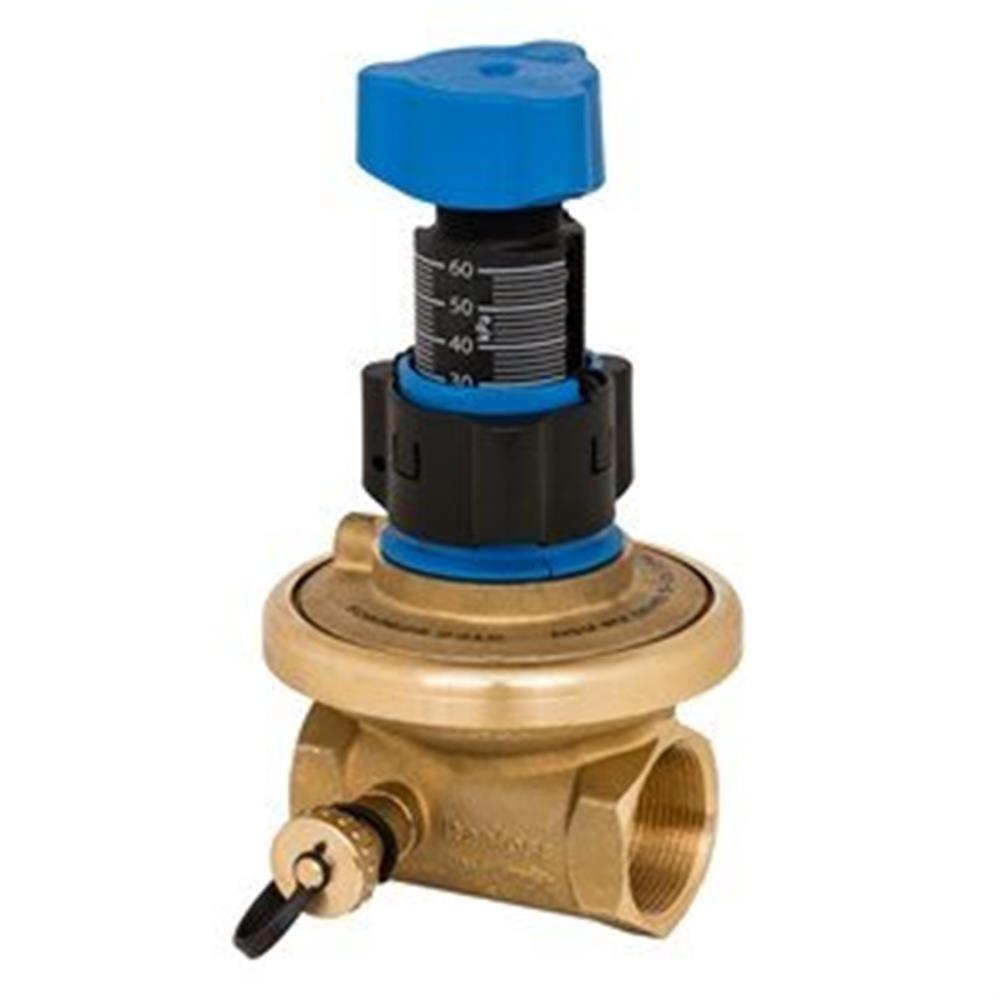

Danfoss ASV-PV Balancing Valve. Control valves and accessories (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 20, connection Socket/socket, cable length 1.5 m, kvs value 2.5 m³/h. Supplied under manufacturer part number 003Z5542, EAN 5710104086224, HS code 8481.80, country of origin Slovenia.
Technical Specifications
- Product type
- Control valves and accessories
- Product group
- Heat
- DN dimension
- 20
- Connection
- Socket/socket
- Cable length
- 1.5 m
- Kvs value
- 2.5 m³/h
- Media temperature min
- 0 °C
- Media temperature max
- 120 °C
- Setting range
- 20-60 kPa
- Material
- Brass
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 4.3531 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 84818039
- HS code
- 8481.80
- Manufacturer part number
- 003Z5542
- GTIN (EAN)
- 5710104086224
- VVS number
- 406853706
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 003Z5542
- EAN 5710104086224
- VVS 406853706
Product Documentation
