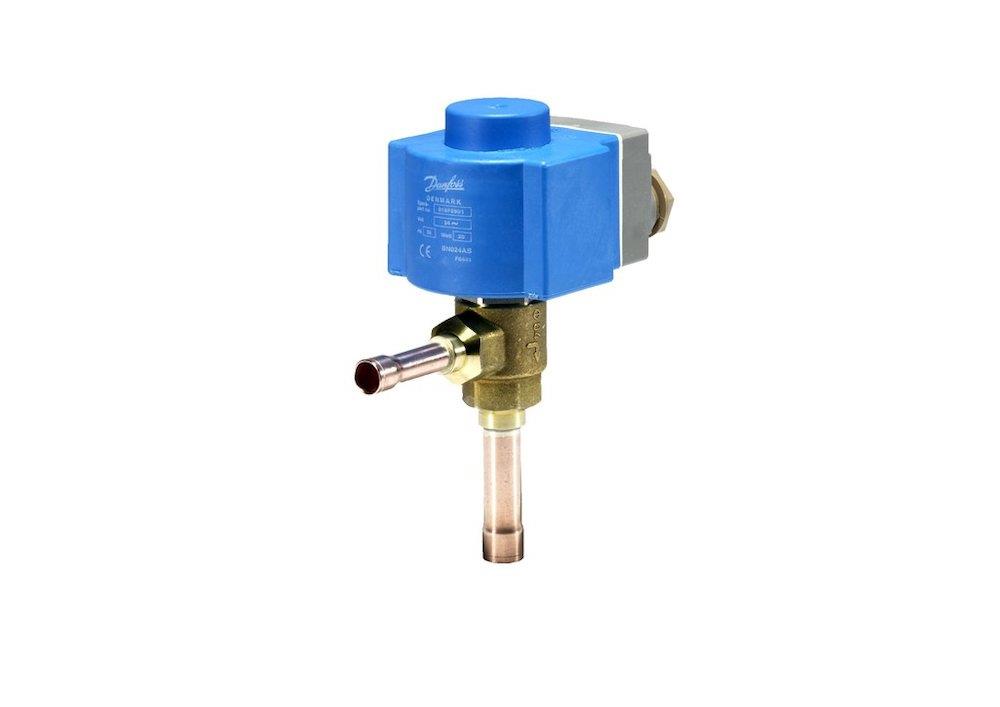

Danfoss AKV 10PS Electronic expansion valve - 24.6kW, -60-60°C, 90bar, AKV 10PS7
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKV 10PS Electronic expansion valve. Electronic expansion valves (Refrigeration technology / Cooling technical components / Expansion valves). Principal data: cooling capacity 24.6 kW, working temperature -60-60 °C, working pressure max 90 bar, type designation AKV 10PS7. Supplied under manufacturer part number 068F4047, HS code 8481.80, country of origin Poland.
Technical Specifications
- Product type
- Electronic expansion valves
- Product group
- Cooling technical components
- Cooling capacity
- 24.6 kW
- Working temperature
- -60-60 °C
- Working pressure max
- 90 bar
- Type designation
- AKV 10PS7
- Coolant
- R134a, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R452A, R507, R513A, R744 (CO2)
- Sales unit
- Pack
- Carbon footprint (EPD)
- 2.7589 kg CO2e per pcs
- Country of origin
- Poland
- Customs tariff code (EU CN)
- 84818099
- HS code
- 8481.80
- Manufacturer part number
- 068F4047
- EAN
- 5702428934169
- Net weight
- 0.266 Kilogram
- Type
- AKV 10PS7
- Actuator system [mm]
- 13.5 mm
- Ambient temperature
- -50 - 50 °C
- Ambient temperature range [°F] [max]
- 120 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- C UL US LISTED
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Coil
- No
- Cv value [gal/min]
- 0.236 gal/min
- Direction
- Angleway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Function
- NC
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 1/2 in
- Kv value [m³/h]
- 0.204 m³/h
- Manual operation option
- No
- Max. Working Pressure [bar]
- 90 bar
- Max. Working Pressure [psig]
- 1305 psig
- Medium temperature range [°C] [max]
- 60 °C
- Medium temperature range [°C] [min]
- -50 °C
- Medium temperature range [°F] [max]
- 140 °F
- Medium temperature range [°F] [min]
- -58 °F
- MinODP [bar]
- 0.1 bar
- MinODP [psi]
- 1.45 psi
- MOPD[bar/psi]
- 55 bar/798 psi Coil Dependent
- Orifice size [mm]
- 3 mm
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 5/8 in
- Rated capacity R744 [kW]
- 16 kW
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1233zd(E)
- UL approved refrigerants
- R1233zd(E)
- UL mark
- Yes
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 068F4047
Product Documentation
