Product Description
Danfoss VMT/8 Seat Valve 2-way. Seat valves (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 25, thread 1 1/4", connection Male thread, kvs value 3.1 m³/h. Supplied under manufacturer part number 065F0125, EAN 5702420022291, HS code 8481.80, country of origin Denmark.
Technical Specifications
- Product type
- Seat valves
- Product group
- Heat
- DN dimension
- 25
- Thread
- 1 1/4"
- Connection
- Male thread
- Kvs value
- 3.1 m³/h
- Carbon footprint (EPD)
- 6.8634 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84818079
- HS code
- 8481.80
- Manufacturer part number
- 065F0125
- VVS number
- 451263008
- EAN
- 5702420022291
- Net weight
- 0.647 Kilogram
- Type
- VMT
- Application
- Heating and cooling
- Cavitation factor
- 0.5
- China RoHS compliance
- Out of scope
- Connection size
- G 1 1/4 A
- Connection types
- External Thread
- Description
- VMT PN10 25/3,1 2-way/8 ext.thr Straight
- Diameter [mm]
- 25 mm
- Differential pressure range [bar] [Max]
- 0.8 bar
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flow characteristic
- Linear
- Function
- Control valve
- Kvs values [m³/h]
- 3.1 m³/h
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 120 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Free
- Number of ports
- 2
- Permissible media
- District heating/cooling circulation water
- PN alternative VSP
- 6
- Pressure class
- PN 10
- Pressure nominal [bar]
- 10 bar
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Spindle position
- Normally open
- Stroke [mm]
- 1.1 mm
- Valve body material
- Brass W. No 2.0402
- Valve cone material
- NBR rubber
- Valve size
- DN 25
- Valve stem material
- CrMo steel
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 065F0125
- EAN 5702420022291
- VVS 451263008
Product Documentation
More from Danfoss
Danfoss
Danfoss Coupling Box
10248100
Danfoss
Danfoss AVTA 15 Thermostatic Valve - 25°C, 65°C, 1.9M³/h
10023959
Danfoss

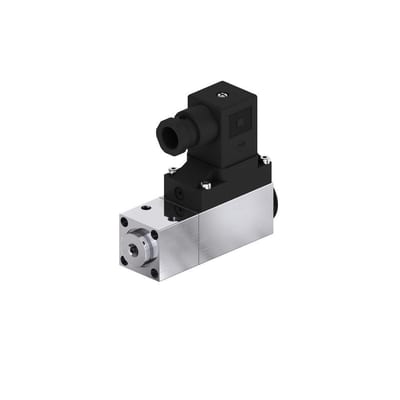

Danfoss MBC 5100 Pressure Switch - 10-100bar
10248377
Danfoss
Danfoss Cable Plug 24V - 9-22 coil AB/AC
042N0267
Danfoss

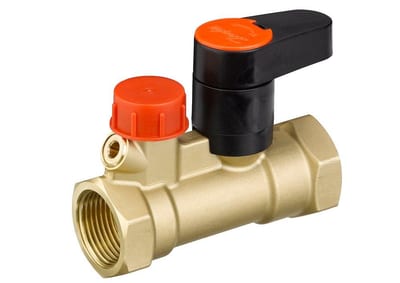

Danfoss MSV-S Ball Valve with 3/4” drain and connection nipple - 50, coupling/coupling, 2", 40M³/h
10023663
Danfoss

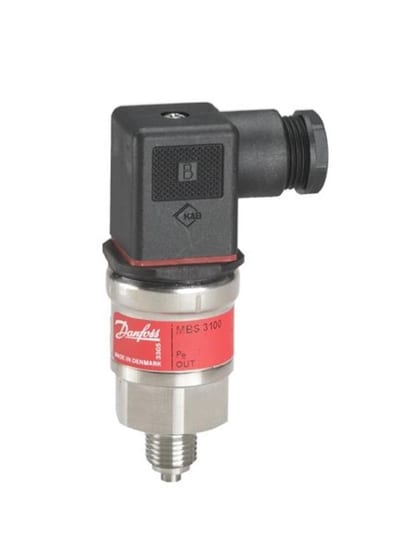

Danfoss MBS 3300 Pressure Transmitter - 1/4", 0-25bar
060G1467
Danfoss

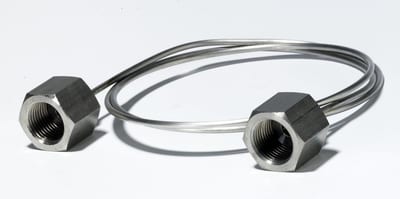

Danfoss Damping Loop - 1/2", 1000mm
060-016966
Danfoss

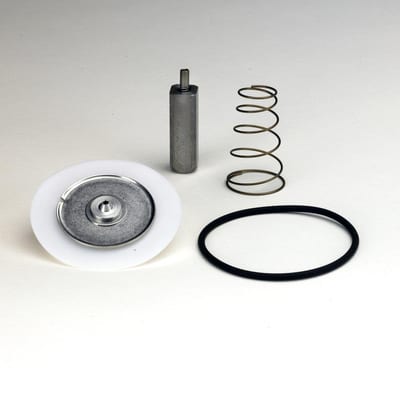

Danfoss Spare Part Set - 10024006
