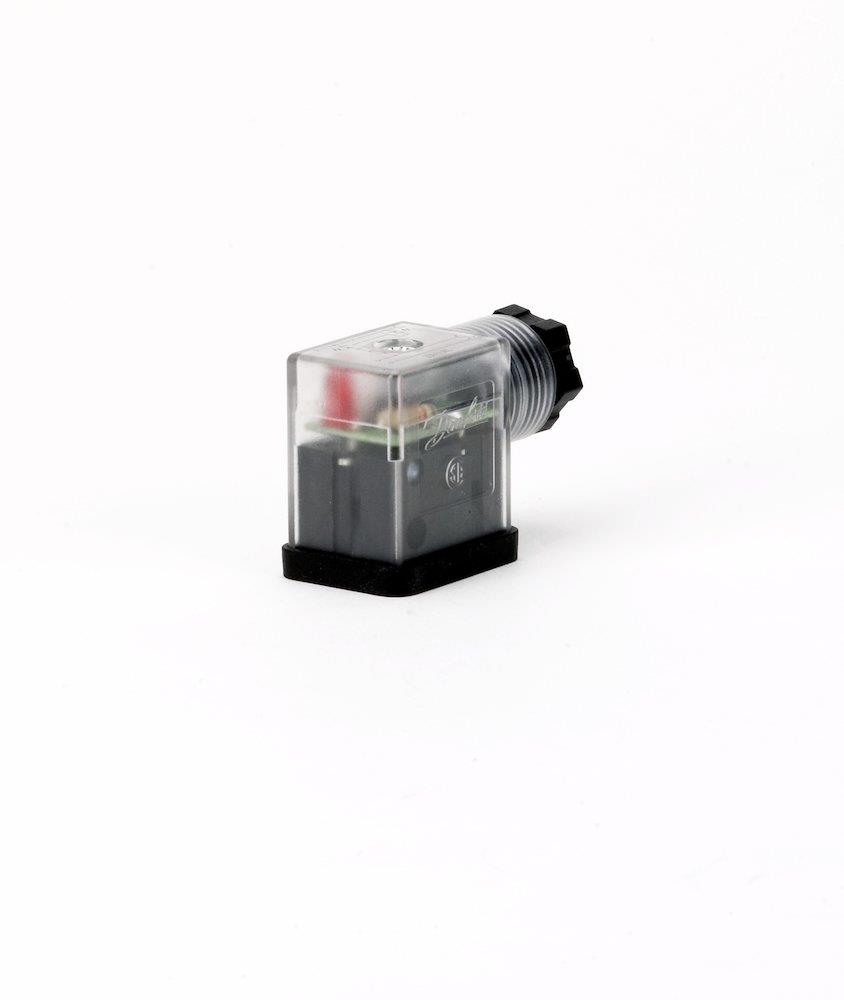

Danfoss Cable Plug 24V - 9-22 coil AB/AC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Cable Plug 24V. Spare parts and accessories for solenoid valves (Plumbing / Heat / Valves for heating and cooling systems). Principal data: used for 9-22 coil AB/AC. Supplied under manufacturer part number 042N0267, EAN 5702423205905, HS code 8536.69, country of origin Poland.
Technical Specifications
- Product type
- Spare parts and accessories for solenoid valves
- Product group
- Heat
- Used for
- 9-22 coil AB/AC
- Carbon footprint (EPD)
- 0.1051 kg CO2e per pcs
- Country of origin
- Poland
- Customs tariff code (EU CN)
- 85366990
- HS code
- 8536.69
- Manufacturer part number
- 042N0267
- VVS number
- 470198165
- EAN
- 5702423205905
- Net weight
- 0.012 Kilogram
- Type
- Spare part
- Ambient temperature range [°C] [max]
- 90 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 194 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CE
- Body type
- Translucent
- Cable diameter [in] [max]
- 0.32 in
- Cable diameter [in] [min]
- 0.24 in
- Cable diameter [mm] [max]
- 8 mm
- Cable diameter [mm] [min]
- 6 mm
- CE mark
- Yes
- China RoHS compliance
- Yes
- Conductor size, max. [mm2]
- 1.5 mm²
- Contact material
- CuZn (Cu/Sn plated)
- Contact resistance max. [mOhm]
- 15 mOhm
- Contacts
- 2 + PE
- Electrical connection form
- Industrial form
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes
- Gasket material
- NBR
- Gasket type
- Profiled
- LED colour
- Red
- Operating current max. [A]
- 16 A
- REACH Candidate Strip substances
- No
- Supply voltage [V] AC
- 24 V
- Supply voltage [V] DC
- 24 V
- Tolerance
- ± 10%
- Type designation
- Cable plug
- Used for product
- 9-22 Coil AB/AC
Standards & Compliance
- HS Code
- 8536.69
Cross References
- MPN 042N0267
- EAN 5702423205905
- VVS 470198165
