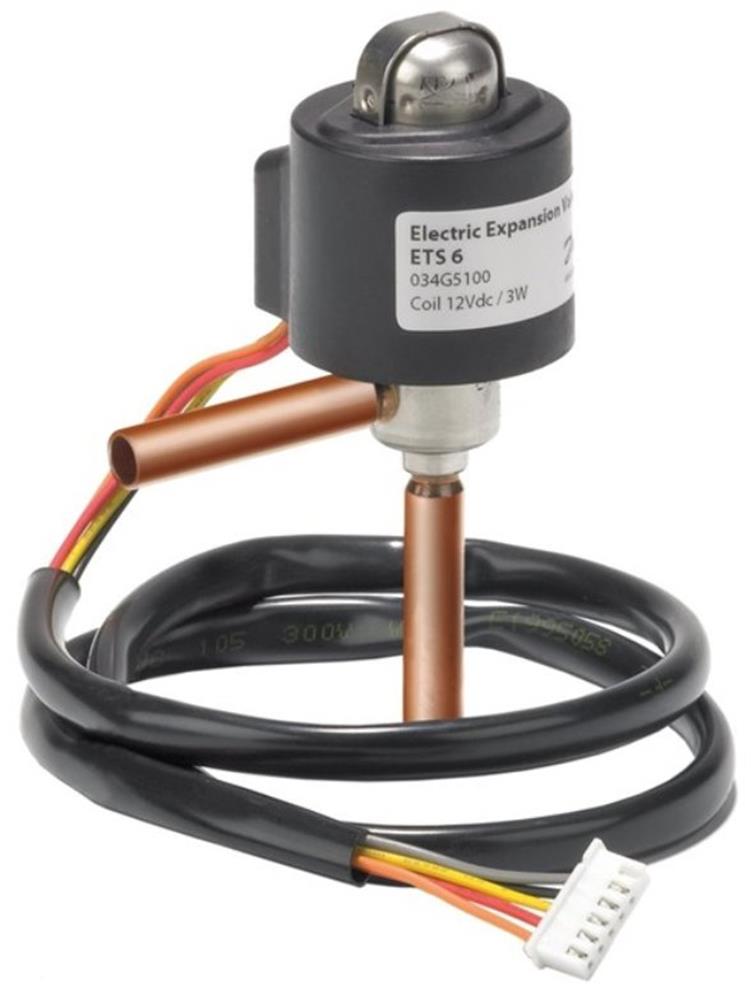

Danfoss ETS electronic expansion valve - ETS 6 - 32
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ETS electronic expansion valve. Electronic expansion valves (Refrigeration technology / Cooling technical components / Expansion valves). Principal data: type designation ETS 6 - 32. Supplied under manufacturer part number 034G5055, HS code 8481.80, country of origin Japan.
Technical Specifications
- Product type
- Electronic expansion valves
- Product group
- Cooling technical components
- Type designation
- ETS 6 - 32
- Carbon footprint (EPD)
- 0.6070 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 84818099
- HS code
- 8481.80
- Manufacturer part number
- 034G5055
- EAN
- 5702428825498
- Net weight
- 0.048 Kilogram
- Type
- ETS 6 - 32
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -30 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -22 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Compatible Danfoss controllers
- EIM 336
- Connection Code
- (3002:X:8)
- Connection material
- Copper
- Connection type
- Solder, ODF
- Direction
- Angleway
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Fluid Group
- 2
- Full travel time speed [s] [max]
- 16 s
- Full travel time speed [s] [min]
- 6 s
- Identical product
- 034G5050
- Inlet size [in]
- 5/16 in
- Inlet size [mm]
- 7.94 mm
- Lubricants compatibility
- MO
- Manual operation option
- AST-G service driver
- Max. Working Pressure [bar]
- 47 bar
- Max. Working Pressure [psig]
- 681 psig
- MaxOPD [bar]
- 28 bar
- MaxOPD [psig]
- 406 psig
- MOPD[bar/psi]
- 28 bar
- Motor type
- Permanent magnet stepper motor
- Orifice size [mm]
- 3.2 mm
- Outlet size [in]
- 5/16 in
- Outlet size [mm]
- 7.94 mm
- PED category
- Art. 4, par. 3
- Rated cap. conditions [IMP]
- Subcooling=32 ºF
- Rated cap. conditions [SI]
- Subcooling=0 ºc
- Rated cap. R404A/R507A [kW]
- 20.3 kW
- Rated cap. R404A/R507A [TR]
- 5.77 TR
- Rated capacity R134a [kW]
- 22.5 kW
- Rated capacity R134a [TR]
- 6.4 TR
- Rated capacity R22 [kW]
- 28.8 kW
- Rated capacity R22 [TR]
- 8.19 TR
- Rated capacity R407C [kW]
- 29.6 kW
- Rated capacity R407C [TR]
- 8.42 TR
- Rated capacity R410A [kW]
- 33.9 kW
- Rated capacity R410A [TR]
- 9.64 TR
- REACH Candidate Strip substances
- No
- Refrigerant temperature [ºC] [max]
- 70 °C
- Refrigerant temperature [ºC] [min]
- -30 °C
- Refrigerant temperature [ºF] [max]
- 158 °F
- Refrigerant temperature [ºF] [min]
- -22 °F
- Refrigerants
- R1234yf
- Step mode
- 2-phase full step
- Total steps
- 480 (half steps)
- UL approved refrigerants
- R134a
- UL mark
- Yes
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 034G5055
Product Documentation
More from Danfoss
Danfoss
Danfoss EMP 2 Pressure Transmitter - 1/2", 0-1,6bar
084G2104
Danfoss
Danfoss BE220BS Coil - 220 V AC, 13W
018F6189
Danfoss
Danfoss ADAP-KOOL Refrigeration Furniture/Room Controller - 230V, 5, 3, AK-CC55
084B4083
Danfoss
Danfoss MBV 5000 Test Valve - 1/4" 10248530
Danfoss
Danfoss Insulation Cap - ASV-PV-4G, 32
003Z7803
Danfoss
Danfoss Spare Part Set - 10024088
032U1081
Danfoss
Danfoss Pressure Switch - 10248366
Danfoss
Danfoss Adapter - 10152416
060G1023
Technical guides
- Expansion Valve Finder — Danfoss TE 2 / TE 5 / TE 12 / TE 20 / TE 55, TGE, TUA / TUB / TUBE, T2 / TS2, AKV and ETS Colibri by Refrigerant, Connection and Type
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 034G5055?
- 034G5055 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 034G5055.
- What is the HS code for 034G5055?
- The customs tariff (HS) code for 034G5055 is 8481.80.
- Who manufactures 034G5055?
- 034G5055 is a Danfoss product in the HVAC & Refrigeration range.
- Is a datasheet available for 034G5055?
- Yes — the 034G5055 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 034G5055?
- The minimum order quantity is 1.
- Is 034G5055 available?
- Yes — 034G5055 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
