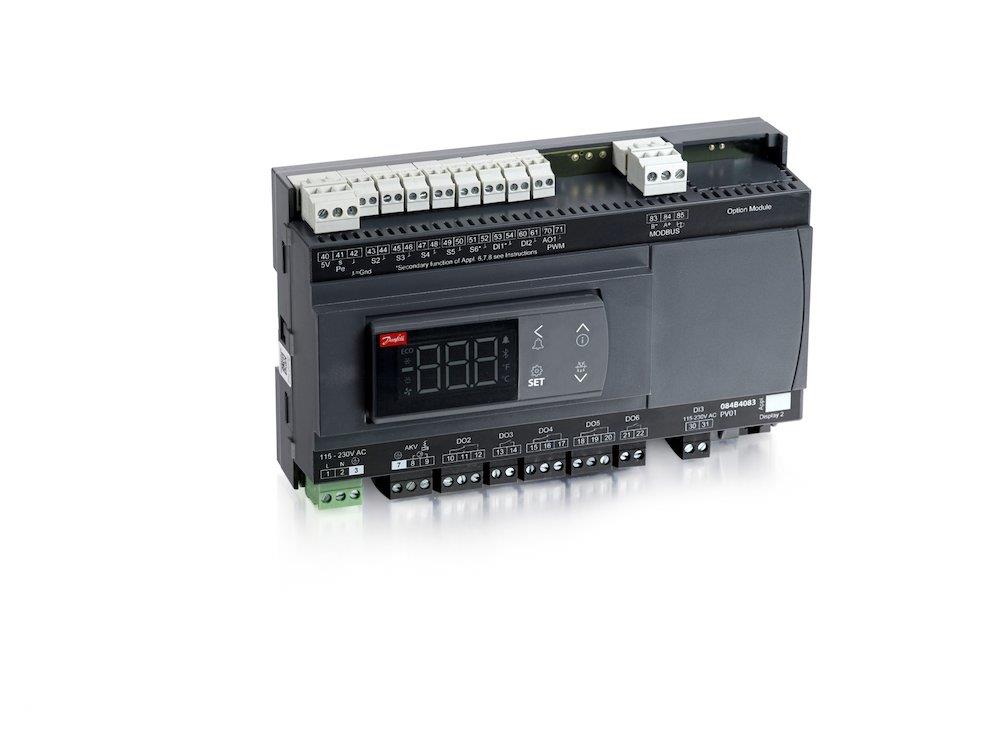

Danfoss ADAP-KOOL Refrigeration Furniture/Room Controller - 230V, 5, 3, AK-CC55
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ADAP-KOOL Refrigeration Furniture/Room Controller. Cooling controls (Refrigeration technology / Cooling controls, alarms, and detectors). Principal data: voltage 230 V, relays 5, digital input 3, type designation AK-CC55. Supplied under manufacturer part number 084B4083, EAN 5702428523639, HS code 8537.10, country of origin Denmark.
Technical Specifications
- Product type
- Cooling controls
- Product group
- Cooling controls, alarms, and detectors
- Voltage
- 230 V
- Relays
- 5
- Digital input
- 3
- Type designation
- AK-CC55
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 85371098
- HS code
- 8537.10
- Manufacturer part number
- 084B4083
- EAN
- 5702428523639
- Net weight
- 350 Gram
- Type
- AK-CC55 Single Coil UI
- Analog inputs (AI) [pc]
- 6 pc
- Analog outputs (AO) [pc]
- 1 pc
- Application area
- Refrigeration control
- Approval
- C-TICK
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Communication built-in
- MODBUS
- Communication card option
- LON RS485
- Communication type
- MODBUS
- Controller type
- Case Contr. Single Coil w. Dis
- Digital inputs (DI) [pc]
- 3 pc
- Digital outputs (DO) [pc]
- 6 pc
- Display on front
- Yes
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Frequency [Hz]
- 50/60 Hz
- Function
- AKV, Pe, 5 Relays, Display
- Identical product
- 084B4183
- In scope of WEEE
- Yes
- Number of Evaporators max.
- 1 pc
- Other RoHS documentation
- EAEU RoHS
- Power consumption [VA]
- 5 VA
- Press. Transmitter support
- RATIOMETRIC
- Product features
- CO2 compliant
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Sensor connection
- Screw terminals
- Supply voltage [V] AC [max]
- 230 V
- Supply voltage [V] AC [min]
- 115 V
- Temp. sensor support
- NTC 5000
- Valve output type
- AKV
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 5702428523639
- MPN 084B4083
