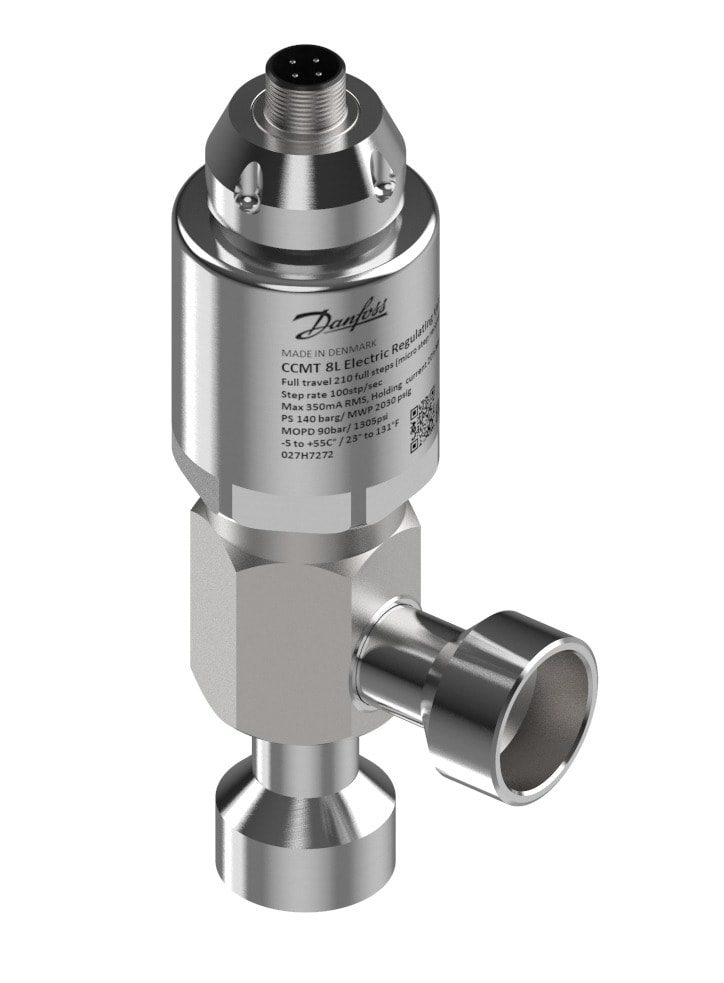

Danfoss CCMT 8L electric regulating valve, solder ODF 7/8 in / weld 3/4 in (code 027H7272)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss CCMT 8L electric regulating valve (code 027H7272), part of the Colibri electrically operated valve range for transcritical and subcritical CO2 (R744) refrigeration. Solder ODF 7/8 in / weld 3/4 in connection; Kv 0.8 m3/h, maximum working pressure 140 bar (2030 psig). Motor-operated for stepless capacity and pressure regulation; the matching actuator drive and controller are ordered separately.
Specifications
- Part number
- 027H7272
- HS code
- 8481.80
- Pressure rating
- 140 bar
Compatibility
CCMT 8L for CO2 capacity control. Confirm Kv (0.8 m3/h) and MWP (140 bar) against your duty; the matching CCM/ICAD actuator drive and controller are ordered separately.
Approvals
