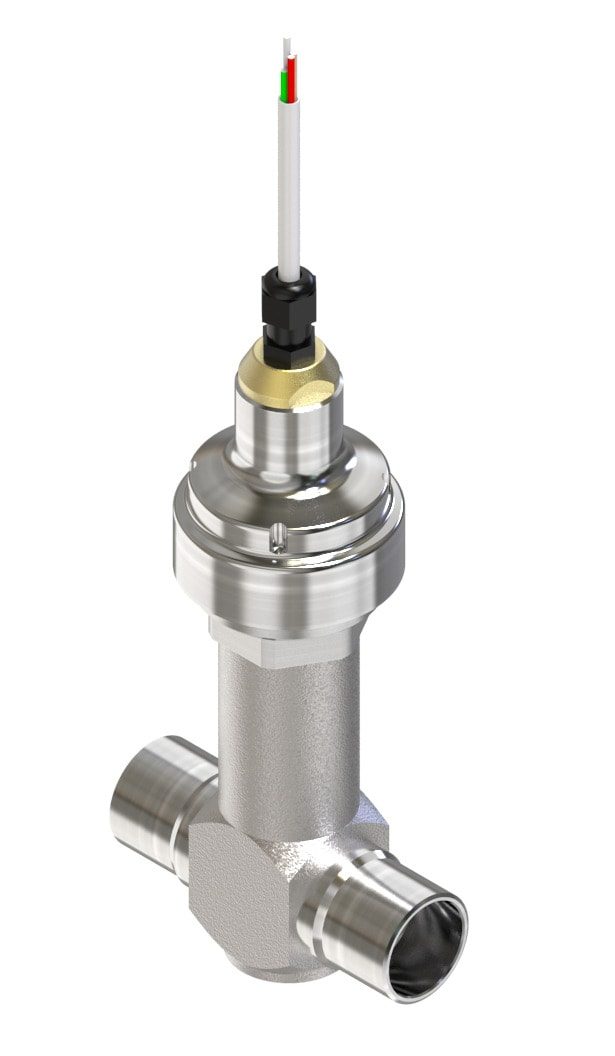

Danfoss CCM 30 electric regulating valve, solder ODF 1 1/8 in / weld 1 in
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CCM 30 electric regulating valve (code 027H7186), a motor-operated modulating valve for capacity, hot-gas and pressure regulation in R134a, R404A, R449A and R744 (CO2) refrigeration systems. Solder ODF 1 1/8 in / weld 1 in connection; Kv 2.78 m3/h, maximum working pressure 90 bar (1305 psig). The CCM actuator (motor) is ordered separately.
Technical Specifications
- Type
- CCM 30 electric regulating valve
- Code number
- 027H7186
- Connection type
- solder, ODF
- Solder connection size
- 1 1/8 in
- Weld connection size
- 1 in
- Kv value
- 2.78 m3/h
- Maximum working pressure
- 90 bar (1305 psig)
- Valve operation
- electrically (motor) operated
- Refrigerants
- R134a, R404A, R449A, R744
- Net weight
- 1.945 kg; gross weight: 2.196 kg
- Approvals
- UL (cURus)
- REACH candidate substance
- Lead (CAS 7439-92-1)
- EAN
- 5702428375733
- Product group
- Press. and temp. regul. valves
- Ambient temperature range [°C] [max]
- 60 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 140 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- LLC CDC TYSK
- China RoHS compliance
- Out of scope
- Connection Code
- (2501:D26:25); (3002:X:29)
- Connection Solder size [in]
- 1 1/8 in
- Connection standard
- EN10220
- Connection Weld size [in]
- 1 in
- Cv value [gal/min]
- 2.784 gal/min
- Diff.press.setting range [bar]
- 50 bar
- Diff.press.setting range [psi]
- 725 psi
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Out of scope
- Kv value [m³/h]
- 2.78 m³/h
- Max. Working Pressure [bar]
- 90 bar
- Max. Working Pressure [psig]
- 1305 psig
- MaxOPD [bar]
- 50 bar
- MaxOPD [psig]
- 725 psig
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Temperature range [°C] [max]
- 60 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 140 °F
- Temperature range [°F] [min]
- -40 °F
- UL approved refrigerants
- R134a
- UL mark
- Yes
Standards & Compliance
- Pressure Rating
- 90 bar
- HS Code
- 8481.80
Compatibility & Fitment
CCM 30 for capacity/hot-gas control. Confirm Kv (2.78 m3/h) and MWP (90 bar); the CCM actuator (motor) and controller are ordered separately.
