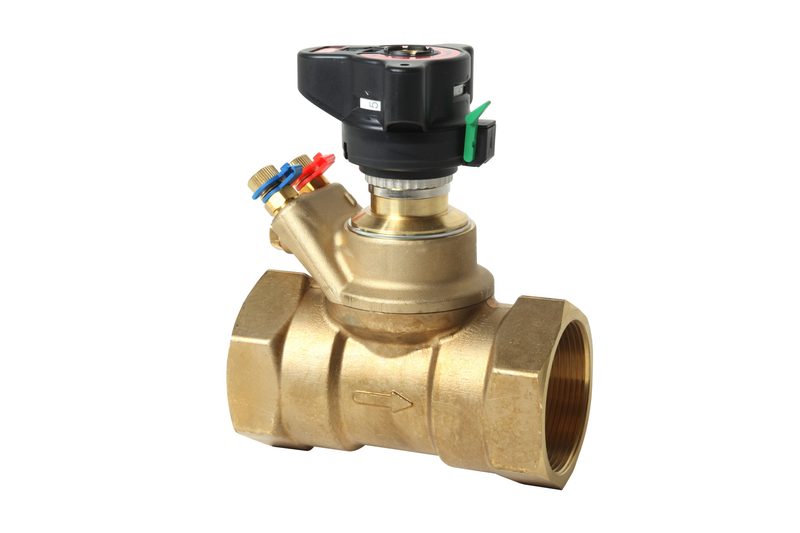

Danfoss ASV-BD DN 50 Internal thread partner valve

Danfoss ASV-BD — partner valve for ASV-PV differential-pressure controllers, OEM order code 003Z4046. Partner valve for the supply pipe of a riser controlled by a Danfoss ASV-PV self-acting differential-pressure controller. The ASV-PV impulse tube connects to this valve, which additionally provides flow limitation (presetting), a measuring/setting scale, integral shut-off and an optional drain, so the riser can be preset, measured, isolated and drained from one point. (ASV-BD DN 50, Internal thread, shut-off valve.) Nominal size DN 50, Kvs 40 m³/h, PN 20, Internal thread connection, DZR brass body, media temperature -20 °C to 120 °C. Net weight 2.358 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 003Z4046). OEM P/N 003Z4046, EAN 5702420114828.

Brand

Danfoss

Part number

003Z4046

Type

ASV-BD

Product group

Automatic balancing

Function

partner valve for ASV-PV differential-pressure controllers

Store description

ASV-BD DN 50, Internal thread, shut-off valve

Nominal size

DN 50

Kvs value

40 m³/h

Connection type

Internal thread

Pressure class

PN 20

Mounting position

Supply pipe

Setting scale

Yes

Flow limitation

Yes

Shut-off function

Yes

Drain function

Optional via accessory

Valve body material

DZR brass

Media temperature

-20 °C to 120 °C

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

2.358 Kilogram

Gross weight

2.566 Kilogram

EAN

5702420114828

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Valve body DZR brass

Pressure Rating

PN 20

Temperature Range

-20 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
