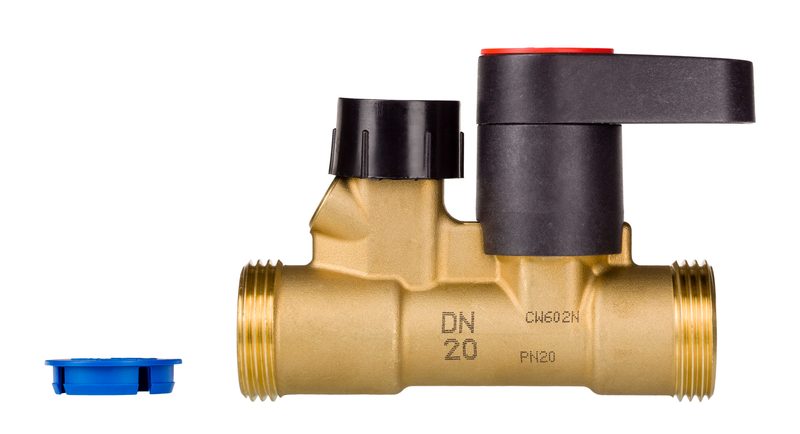

Danfoss LENO MSV-S DN 20 External Thread partner / shut-off valve

Danfoss LENO MSV-S — manual partner / shut-off valve, OEM order code 003Z4112. Manual partner (shut-off) valve for the return of a hydronic branch or riser, used together with a LENO MSV-BD/MSV-O measuring-and-presetting balancing valve on the supply. It provides positive shut-off and a drain facility so a terminal or branch can be isolated and drained for service without disturbing the balanced setting of the partner valve. (MSV-S DN 20, External thread, partner valve.) Nominal size DN 20, Kvs 6 m³/h, PN 20, External Thread connection (G 1 A), DZR brass body, media temperature -20 °C to 120 °C. Net weight 0.471 Kilogram. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 003Z4112). OEM P/N 003Z4112, EAN 5702420091839. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Brand

Danfoss

Part number

003Z4112

Type

LENO MSV-S

Product group

Manual balancing

Function

manual partner / shut-off valve

Store description

MSV-S DN 20, External thread, partner valve

Nominal size

DN 20

Kvs value

6 m³/h

Connection thread size

G 1 A

Connection type

External Thread

Pressure class

PN 20

Setting scale

No

Test plugs

Without test plugs

Shut-off function

Yes

Drain function

Yes

Valve body material

DZR brass

Media temperature

-20 °C to 120 °C

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.471 Kilogram

Gross weight

0.513 Kilogram

EAN

5702420091839

HS code

8481.80 (taps, cocks, valves for pipes, tanks, vats or the like)

Material

Valve body DZR brass

Pressure Rating

PN 20

Temperature Range

-20 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
