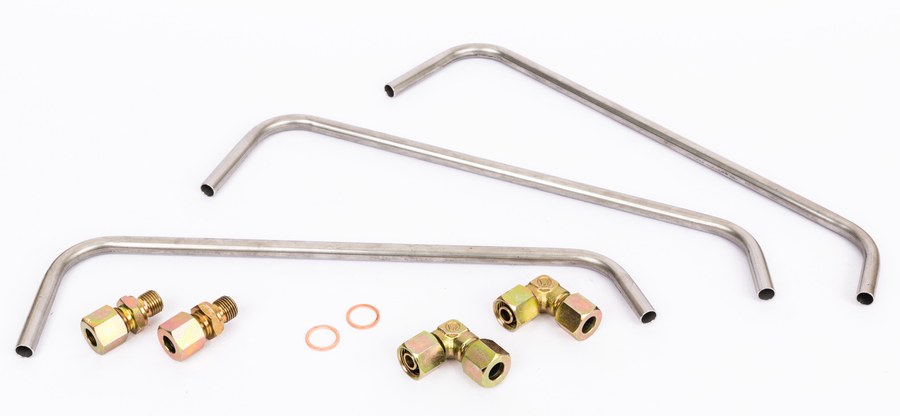

Danfoss AF-range impulse tube set for AFPQ4 controllers — valve DN 50, PN 40, 10 mm × G 1/4, Stainless steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AF-range impulse tube set (OEM designation "Impulse tubes for AFPQ4 PN40 50"). The impulse tubes connect the diaphragm chamber of a Danfoss self-acting AF-range pressure/flow controller actuator to the pressure-sensing tapping(s) on the pipework, transmitting the pipe pressure to the actuator so it can hold the set differential pressure or flow. This set is matched to the AFPQ4 controller on valve size DN 50 at PN 40. Tube outer diameter 10 mm; union connection G 1/4; material Stainless steel. Permissible medium: District heating/cooling circulation water. OEM P/N 003G1383. EAN 5702421812334. Technical data quoted verbatim from store.danfoss.com (code 003G1383).
Technical Specifications
- Code number
- 003G1383
- Type
- Impulse tubes
- Product group
- Accessories - SAC
- Gross weight
- 0.37 Kilogram
- Net weight
- 0.37 Kilogram
- Volume
- 2.35 Liter
- Connection size
- G 1/4
- Contains batteries
- No
- Description
- Impulse tubes for AFPQ4 PN40 50
- Diameter [mm]
- 10 mm
- EU RoHS compliance
- Yes with exemptions
- For product type
- AFPQ4
- For valve size
- DN 50
- Material
- Stainless steel
- Permissible media
- District heating/cooling circulation water
- Pressure nominal [bar]
- 40 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- SCIP dossier no.
- 4faab7a1-b51b-40d1-b265-5c393b635759
- SCIP dossier product name
- AF IMPULSE TUBES (2)
- Suitable for valve of diameter [mm] [Max]
- 50 mm
- Suitable for valve of diameter [mm] [Min]
- 50 mm
- Suitable for valve of pressure [bar] [Max]
- 40 bar
- Suitable for valve of pressure [bar] [Min]
- 16 bar
- EAN
- 5702421812334
- HS code
- 8481.90
Standards & Compliance
- Size / Series
- Impulse tubes
- Material
- Stainless steel
- Thread Standard
- G 1/4
- Pressure Rating
- PN 40
- HS Code
- 8481.90
Compatibility & Fitment
Impulse tubes are ordered to match the controller Type and the valve size/pressure class. This set fits AFPQ4 controllers at valve size DN 50, PN 40. Confirm the controller Type, valve DN and PN against the AF-range data sheet before ordering — impulse tube length and fittings differ between controller families (AFQ, AFP/AFPB, AFPQ, AFPQ4/AVPQ).
Product Documentation
More from Danfoss
Danfoss
Danfoss AF-range impulse tube set for AFPQ4 controllers — valve DN 65/80, PN 40, 10 mm × G 1/4, Stainless steel
003G1384
Danfoss
Danfoss AF-range impulse tube set for AFPQ4 controllers — valve DN 100, PN 40, 10 mm × G 1/4, Stainless steel
003G1386
Danfoss
Danfoss AF-range impulse tube set for AFPQ4 controllers — valve DN 125, PN 40, 10 mm × G 1/4, Stainless steel
003G1387
Danfoss
Danfoss AF-range impulse tube set for AFPQ4 controllers — valve DN 150, PN 40, 10 mm × G 1/4, Stainless steel
003G1388
Danfoss
Danfoss AF-range impulse tube set for AFPQ4 controllers — valve DN 200, PN 40, 10 mm × G 1/4, Stainless steel
003G1389
Danfoss
Danfoss AF-range impulse tube set — universal AFP(Q)/B, 1.5 m, 10 mm × G 1/4, Copper CW 024A
003G1391
Danfoss
Danfoss AF-range seal pot V1 — 1 L condensate/seal pot for self-acting controller actuators
003G1392
Danfoss

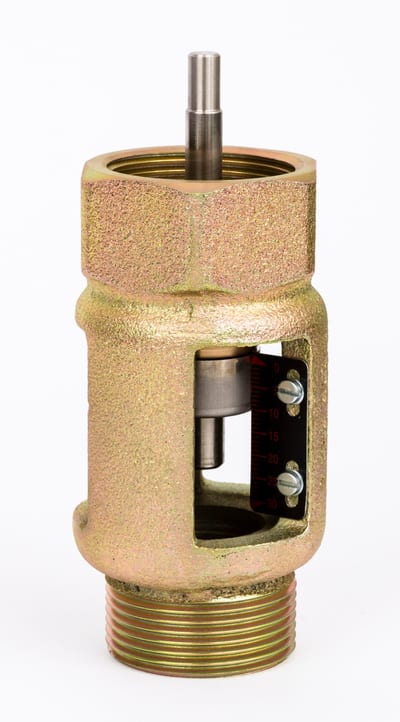

Danfoss AF-range stem extension ZF 6 — insulation spacer for valve bodies DN 15–125
