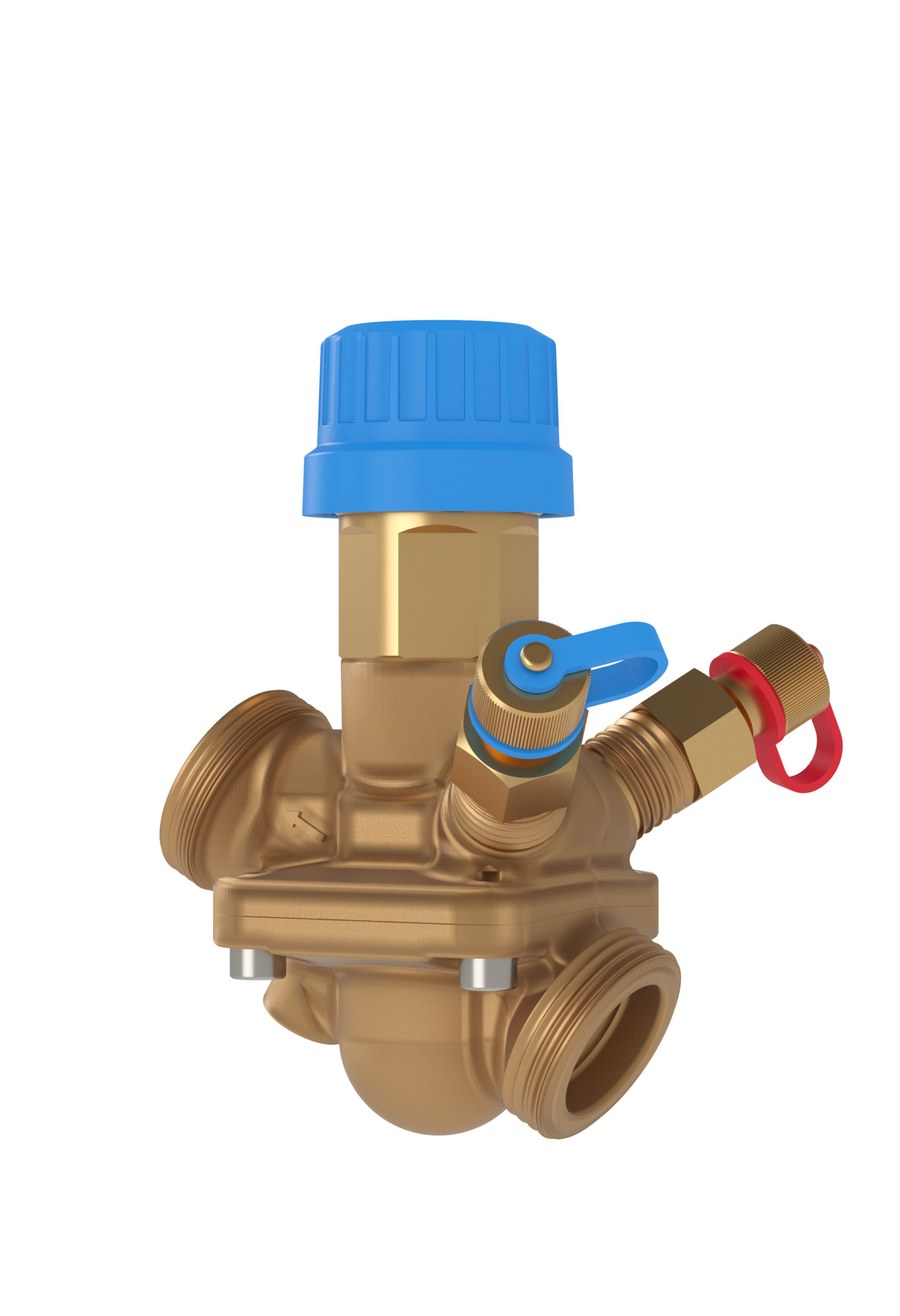

Danfoss AB-QM DN 10 LF Eurocon low-flow pressure-independent balancing & control valve, with test plugs

Danfoss AB-QM DN 10 LF — low-flow pressure-independent balancing and control valve (PICV) for the terminal branches of heating and cooling systems where design flows are small. A built-in differential-pressure controller keeps the flow through the settable orifice constant regardless of pressure fluctuations elsewhere in the network, so each terminal delivers its design flow without manual re-balancing; the presetting dial fixes the maximum flow (settable) and the valve also acts as a shut-off. DZR brass body, Eurocon (ISO 228/1) connection, AB-QM 3.0, PN 16, nominal flow 0.15 m³/h, media temperature -10 °C to 120 °C. Supplied with pressure test plugs for flow verification. Actuator connection M30 x 1.5. OEM P/N 003Z1281. EAN 5710104094144. Technical data quoted verbatim from store.danfoss.com (code 003Z1281).

Code number

003Z1281

Type

AB-QM

Version

AB-QM 3.0

Product group

Pressure independent balancing and control valves

Description

AB-QM DN 10 Low flow, Eurocon, with test plugs, pressure independent balancing and control valve

Valve size

DN 10 Low flow

Valve body material

DZR brass

Connection types

External thread ISO 228/1

Actuator connection

M30 x 1.5

Test plugs

With test plugs

Flow nominal [m³/h]

0.15 m³/h

Stroke [mm]

2.25 mm

Pressure class

PN 16

Differential pressure [kPa] [Max]

600 KPa

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

120 °C

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

Net weight

0.398 Kilogram

Gross weight

0.398 Kilogram

Volume

0.903 Liter

EAN

5710104094144

Material

Valve body DZR brass

Pressure Rating

PN 16

Temperature Range

-10 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
