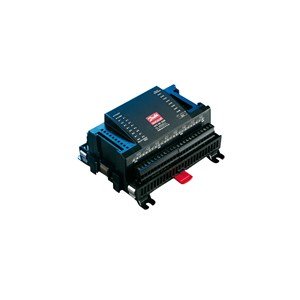

Danfoss AK-XM 204A I/O extension module, 8 outputs
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AK-XM 204A output extension module for Danfoss ADAP-KOOL AK2 refrigeration system controllers (AK-SM system managers, AK-PC pack controllers, AK-CC case/evaporator controllers). Adds eight digital outputs to a controller over the AK2 local bus. Power consumption 3.7 VA. DIN-rail module. EAN 5702428089319.
Technical Specifications
- Type
- AK-XM 204A I/O extension module
- Function
- Additional in- and outputs
- Digital outputs (DO)
- 8
- Communication bus
- AK2 local bus
- Power consumption
- 3.7 VA
- Net weight
- 0.49 kg
- Gross weight
- 0.618 kg
- Approvals
- C-TICK, CE, LLC CDC TYSK, UR
- Danfoss code
- 080Z0011
- EAN
- 5702428089319
- Product group
- I/O and communication modules
- Application area
- Additional In- and Outputs
- Approval
- C-TICK
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Communication type
- AK2 LOCAL BUS
- Controller type
- Extension Module
- Digital outputs (DO) [pc]
- 8 pc
- Display on front
- No
- Division
- 25
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Equipment
- Euro blocks
- EU RoHS compliance
- Out of scope
- In scope of WEEE
- Yes
- PFAS content [Yes/No]
- No
- Power consumption [VA]
- 3.7 VA
- REACH Candidate List substances
- 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7)
Standards & Compliance
- Classification / Approval
- C-TICK, CE, LLC CDC TYSK, UR
- HS Code
- 9032.90
Compatibility & Fitment
Output extension module for the Danfoss ADAP-KOOL AK2 platform. Adds 8 digital outputs on the AK2 local bus. The AK-XM 204B (080Z0018) adds an override board; confirm which variant the application needs.
