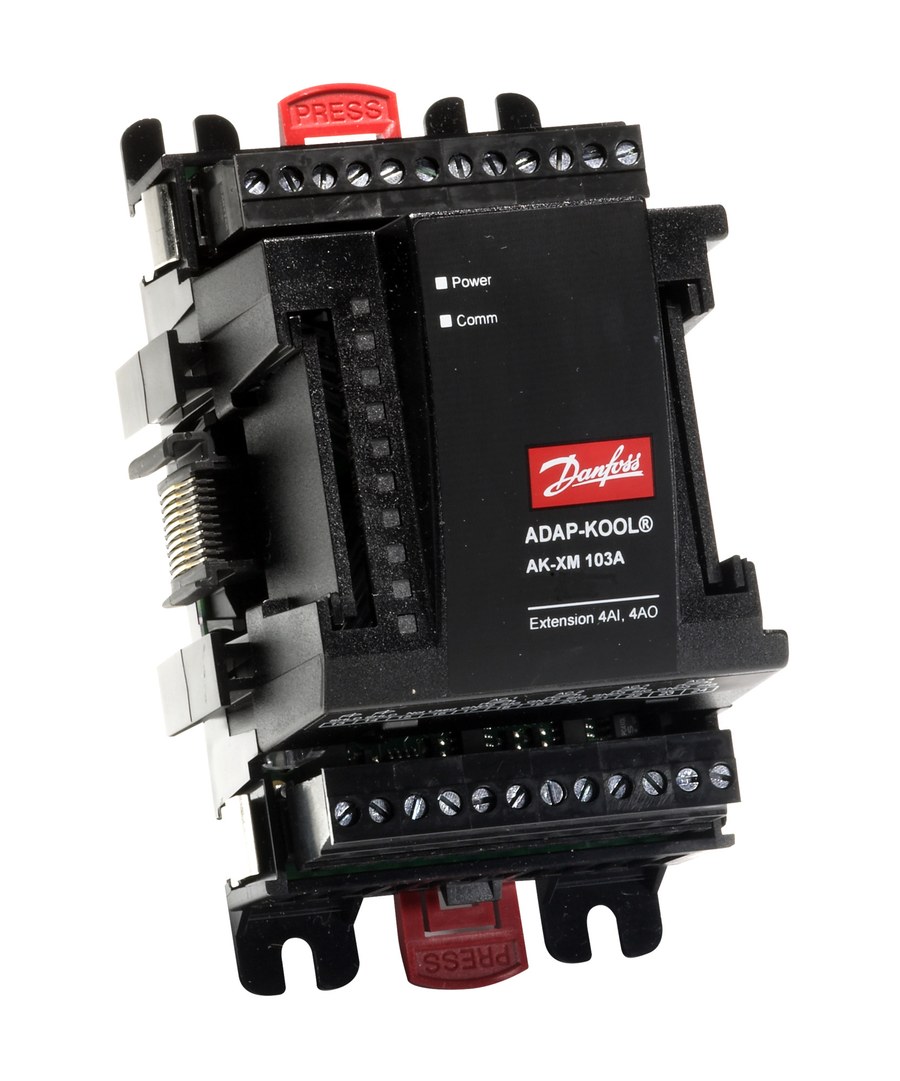

Danfoss AK-XM 103A I/O extension module, 4 analog inputs + 4 analog outputs
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AK-XM 103A combined extension module for Danfoss ADAP-KOOL AK2 refrigeration system controllers (AK-SM system managers, AK-PC pack controllers, AK-CC case/evaporator controllers). Adds four analog inputs and four analog (0-10 V) outputs to a controller over the AK2 local bus. Power consumption 1.5 VA. DIN-rail module. EAN 5702423279852.
Technical Specifications
- Type
- AK-XM 103A I/O extension module
- Function
- Additional in- and outputs
- Analog inputs (AI)
- 4
- Analog outputs (AO)
- 4
- Communication bus
- AK2 local bus
- Power consumption
- 1.5 VA
- Net weight
- 0.2 kg
- Gross weight
- 0.362 kg
- Approvals
- C-TICK, CE, LLC CDC TYSK, cURus
- Danfoss code
- 080Z0032
- EAN
- 5702423279852
- Product group
- I/O and communication modules
- Analog inputs (AI) [pc]
- 4 pc
- Analog outputs (AO) [pc]
- 4 pc
- Application area
- Additional In- and Outputs
- Approval
- C-TICK
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Controller type
- Extension Module
- Display on front
- No
- Division
- 25
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Out of scope
- In scope of WEEE
- Yes
- PFAS content [Yes/No]
- No
- Power consumption [VA]
- 1.5 VA
- Rated cap. cond. Range N [IMP]
- treceiver=32 ºF
- REACH Candidate List substances
- 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7)
- Refrigerants
- R744
- UL mark
- Yes
- Used for product
- T 2
Standards & Compliance
- Classification / Approval
- C-TICK, CE, LLC CDC TYSK, cURus
- HS Code
- 9032.90
Compatibility & Fitment
Combined analog I/O extension module for the Danfoss ADAP-KOOL AK2 platform. Confirm controller AK2 compatibility and the analog-output signal type (0-10 V) needed before ordering.
