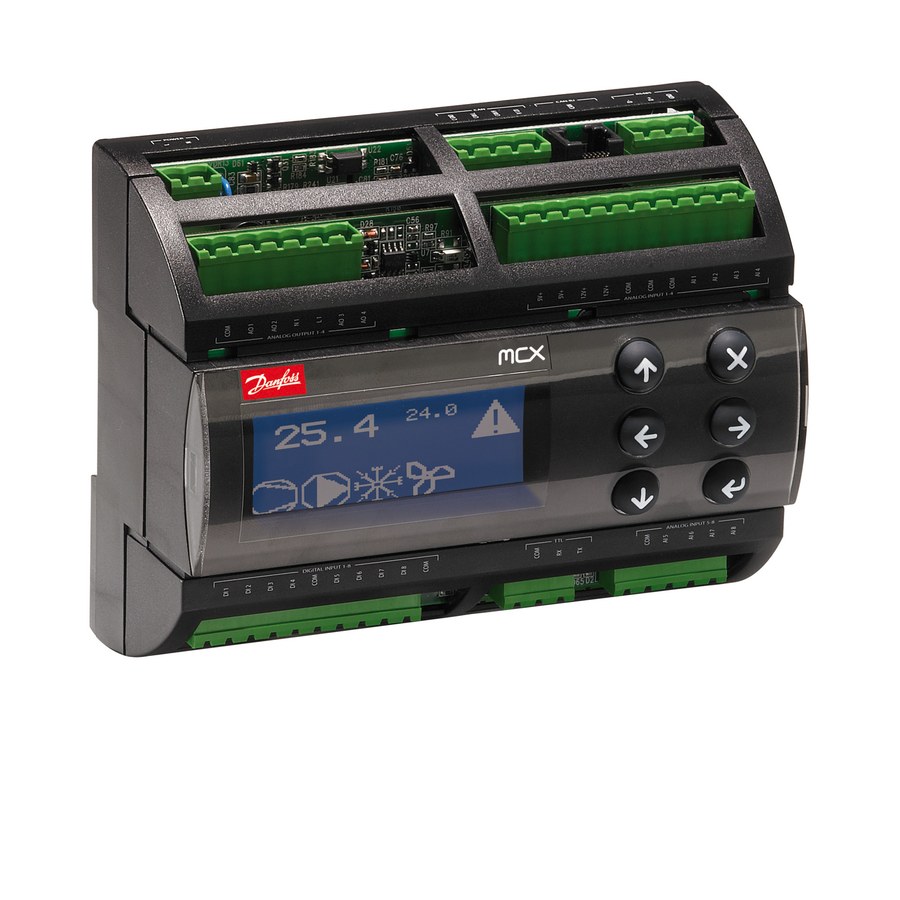

Danfoss MCX08M2 programmable controller, 8 relays, 24 V, LCD
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MCX08M2 programmable refrigeration controller with 8 relay outputs, 24 V AC/DC supply and LCD display, for OEM refrigeration and HVAC applications on the MCX platform. CANbus / Modbus / RS485 communication. DIN-rail, IP40. EAN 5702428945875.
Technical Specifications
- Type
- MCX08M2 programmable controller
- Function
- Programmable controller, 8 relays
- Supply voltage
- 24 V AC / 24 V DC
- Frequency
- 50/60 Hz
- Digital inputs (DI)
- 8 pc
- Digital outputs (DO)
- 8 pc
- Analog inputs (AI)
- 8 pc
- Analog outputs (AO)
- 4 pc
- Communication
- CANbus; Modbus; RS485
- Display
- LCD
- Enclosure rating
- IP40
- Mounting
- DIN rail
- Power consumption
- 10 W
- Battery
- Lithium coin cell CR1620
- Packing
- Single pack
- Net weight
- 0.63 kg
- Approvals
- CE, EAC, LLC CDC TYSK, UL
- Danfoss code
- 080G0310
- EAN
- 5702428945875
- Product group
- Programmable controllers
- 1 Primary battery SUM weight Kg
- 0.001
- 1 Primary battery weight Kg
- 0.001
- Analog inputs (AI) [pc]
- 8 pc
- Analog outputs (AO) [pc]
- 4 pc
- Approval
- CE
- Battery qty
- 1
- Battery type or Name
- Lithium coin cell (CR1620)
- Buzzer
- Yes
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.3
- Communication type
- CANBUS
- Connector kit Code No.
- 080G0180
- Connector kit included
- Yes
- Digital inputs (DI) [pc]
- 8 pc
- Digital outputs (DO) [pc]
- 8 pc
- Display type
- LCD
- Division
- 25
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Enclosure rating IP
- IP40
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Frequency [Hz]
- 50/60 Hz
- Identical product
- 080G0315
- In scope of WEEE
- Yes
- Mounting method
- DIN rail
- PFAS content [Yes/No]
- No
- Power consumption [W]
- 10 W
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Real time clock
- Yes
- Supply voltage [V] AC
- 24 V
- Supply voltage [V] DC
- 24 V
- Type designation
- MCX08M2
- UL mark
- Yes
Standards & Compliance
- IP Rating
- IP40
- Classification / Approval
- CE, EAC, LLC CDC TYSK, UL
- HS Code
- 9032.89
Compatibility & Fitment
Freely programmable OEM controller on the Danfoss MCX platform, 8 relays, LCD, 24 V AC/DC single pack. The 110-230 V LCD build is 080G0307. The no-display 24 V builds are 080G0293 (single pack, connector kit) and 080G0303 (industrial 24-pack). Requires MCX Shape / Design programming tools.
