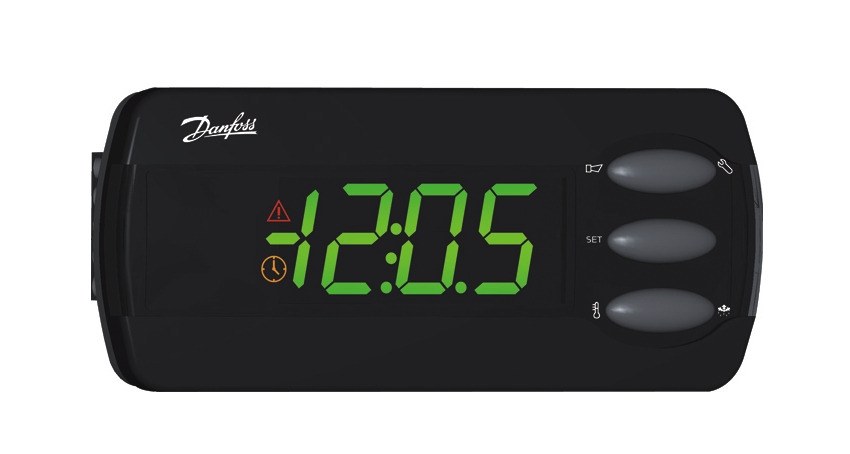

Danfoss MMILDS operator display panel, MCX series
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MMILDS operator display panel for the MCX programmable-controller platform. Panel-mount LED display connected over CANbus, 12 V AC/DC, IP65. EAN 5702423288632. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Type
- MMILDS operator panel
- Function
- Operator display panel
- Supply voltage
- 12 V AC / 12 V DC
- Frequency
- 50/60 Hz
- Analog inputs (AI)
- 2 pc
- Communication
- CANbus
- Display
- LED
- Enclosure rating
- IP65 (NEMA 3R)
- Mounting
- Panel mounting
- Power consumption
- 1.5 W
- Net weight
- 0.04 kg
- Approvals
- CE, GOST R
- Packing format
- Industrial pack, 25 pc
- Danfoss code
- 080G0233
- EAN
- 5702423288632
- Product group
- Programmable controllers
- Analog inputs (AI) [pc]
- 2 pc
- Analog outputs (AO) [pc]
- 0 pc
- Approval
- CE
- Buzzer
- No
- CE mark
- Yes
- China RoHS compliance
- Yes
- Communication type
- CANBUS
- Connector kit included
- No
- Digital inputs (DI) [pc]
- 0 pc
- Digital outputs (DO) [pc]
- 0 pc
- Display type
- LED
- Division
- 25
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Enclosure rating IP
- IP65
- Enclosure rating Nema (~)
- 3R
- EU RoHS compliance
- Yes
- Frequency [Hz]
- 50/60 Hz
- Identical product
- 080G0232
- In scope of WEEE
- Yes
- Mounting method
- Panel mounting
- PFAS content [Yes/No]
- No
- Power consumption [W]
- 1.5 W
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Real time clock
- No
- Supply voltage [V] AC
- 12 V
- Supply voltage [V] DC
- 12 V
- Type designation
- MMILDS
Standards & Compliance
- IP Rating
- IP65
- Classification / Approval
- CE, GOST R
- HS Code
- 9032.90
Compatibility & Fitment
LED remote operator display for Danfoss MCX controllers over CANbus (connects with cable 080G0239). The larger graphic panel is the MMIGRS2 (080G0295); touch-screen panels are MMITSS (080G0301) and MMITXS (080G0302). Confirm the controller supports an MMILDS CANbus display before ordering.
