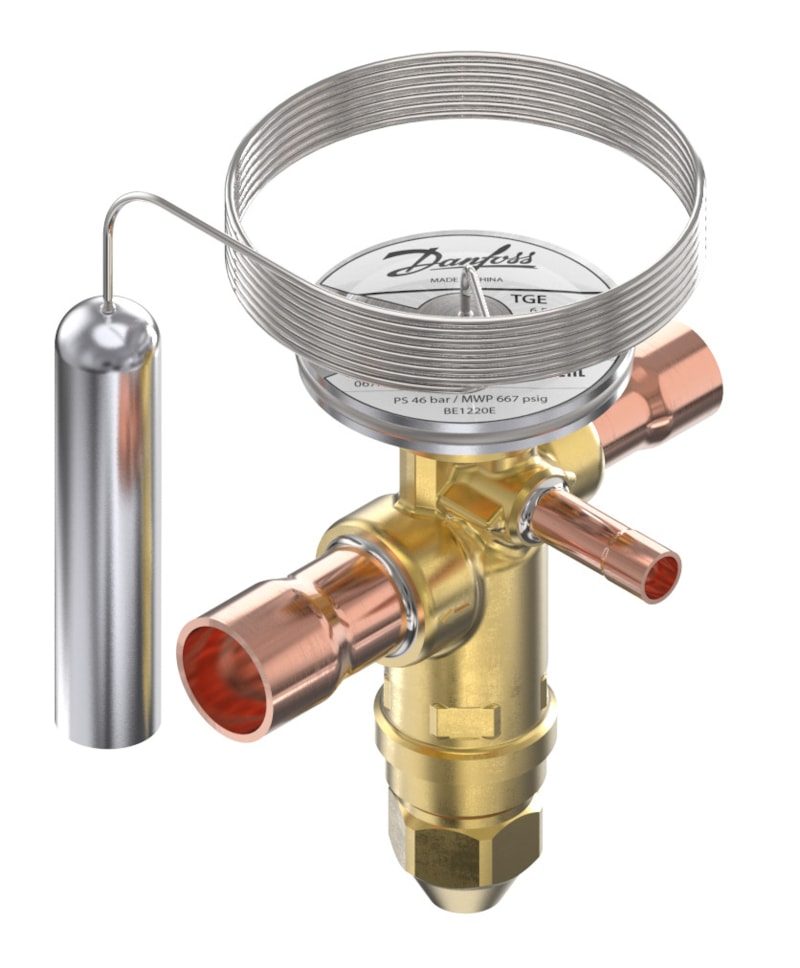

Danfoss TGE thermostatic expansion valve, R410A, 12 mm x 16 mm solder ODF
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TGE thermostatic expansion valve, OEM P/N 067N3063. Externally equalized, balanced-port, bi-flow (straightway) design with adjustable superheat. Refrigerant R410A. Orifice assembly size 6. Nominal capacity 24 kW (6.5 TR) at the standard rating condition. Evaporating temperature range -25 to 10 °C. Inlet 12 mm, outlet 16 mm, external equalizer 6 mm, all solder ODF. Static superheat 4 °C (adjustable). MOP 165 psig at 15 °C. Max working pressure 49 bar (711 psig). Brass body, copper connections; 1500 mm capillary tube with bulb strap. PED Art. 4 par. 3. EAN 5702428140447.
Technical Specifications
- Brand
- Danfoss
- Part number
- 067N3063
- Type
- TGE (externally equalized, balanced port, bi-flow)
- Category
- Expansion valves — thermostatic
- Refrigerant
- R410A
- Nominal capacity
- 24 kW (6.5 TR)
- Orifice size
- 6
- Pressure equalization
- Externally equalized
- Inlet connection
- 12 mm, Solder ODF
- Outlet connection
- 16 mm, Solder ODF
- External equalizer connection
- 6 mm, Solder ODF
- Static superheat
- 4 °C, adjustable
- MOP 165 psig at 15 °C
- Evaporating temperature range
- -25 to 10 °C
- Max working pressure
- 49 bar (711 psig)
- Body material
- Brass
- Connection material
- Copper
- Capillary tube
- 1500 mm with bulb strap
- PED category
- Art. 4, par. 3
- EAN
- 5702428140447
- Approvals
- UL (C UL US), EAC
Standards & Compliance
- Size / Series
- 12 mm x 16 mm
- Material
- Brass body, copper connections
- Pressure Rating
- 49 bar (711 psig) max working pressure
- Temperature Range
- -25 to 10 °C (evaporating)
- Classification / Approval
- UL (C UL US), EAC
- HS Code
- 8481.80
Compatibility & Fitment
Rated for R410A. Select orifice/capacity to the evaporator load and rating condition per the TGE data sheet before ordering.
