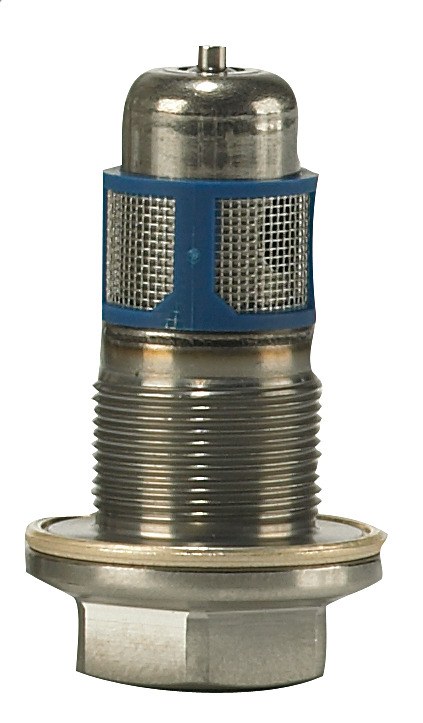

Danfoss ORF orifice for thermostatic expansion valve, size 2, straightway
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ORF interchangeable orifice for thermostatic expansion valves, OEM P/N 068U4101. Straightway orifice assembly, size 2, for the TCAE expansion-valve family. Multi-refrigerant rated (R134a/R513A, R22/R407C, R23, R404A, R404A/R452A, R404A/R507A, R407C, R410A, R448A, R449A, R450A, R452A, R454C). Rated capacity (Range N): R410A 27.5 kW, R407C 23 kW, R404A 16 kW, R134a 14.5 kW, R513A 13.2 kW. Evaporating temperature range -40 to 10 °C. Fluid group 1; PED Art. 4 par. 3. Supplied as a 9-piece service pack. EAN 5702428051477.
Technical Specifications
- Brand
- Danfoss
- Part number
- 068U4101
- Type
- ORF (interchangeable expansion-valve orifice)
- Category
- Expansion valves — spare parts
- Orifice size
- 2
- Direction
- Straightway
- Used for product
- TCAE
- Rated capacity (Range N)
- R410A 27.5 kW, R407C 23 kW, R404A 16 kW, R134a 14.5 kW, R513A 13.2 kW
- Evaporating temperature range
- -40 to 10 °C
- Fluid group
- 1
- PED category
- Art. 4, par. 3
- Packing format
- Multi pack, 9 pc
- EAN
- 5702428051477
- Approvals
- EAC
- Net weight
- 0.042 Kilogram
- Product group
- Expansion valves
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Rated cap. cond. Range N [IMP]
- OS=7.2 ºF
- Rated cap. cond. Range N [SI]
- OS=4K
- Rated cap. R134a, Range N [kW]
- 14.5 kW
- Rated cap. R134a, Range N [TR]
- 4.1 TR
- Rated cap. R22, Range B [kW]
- 7.8 kW
- Rated cap. R22, Range B [TR]
- 2.2 TR
- Rated cap. R22, Range N [kW]
- 21 kW
- Rated cap. R22, Range N [TR]
- 6 TR
- Rated cap. R404A, Range N [kW]
- 16 kW
- Rated cap. R404A, Range N [TR]
- 4.5 TR
- Rated cap. R407C, Range N [kW]
- 23 kW
- Rated cap. R407C, Range N [TR]
- 6.5 TR
- Rated cap. R410A, Range N [kW]
- 27.5 kW
- Rated cap. R410A, Range N [TR]
- 7.8 TR
- Rated cap. R507, Range N [kW]
- 16 kW
- Rated cap. R507, Range N [TR]
- 4.5 TR
- Rated cap. R513A, Range N [kW]
- 13.2 kW
- Rated cap. R513A, Range N [TR]
- 3.8 TR
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a/R513A
- Temperature range [°C] [max]
- 10 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 50 °F
- Temperature range [°F] [min]
- -40 °F
Standards & Compliance
- Size / Series
- Orifice size 2
- Material
- Brass
- Temperature Range
- -40 to 10 °C (evaporating)
- Classification / Approval
- EAC
- HS Code
- 8481.90
Compatibility & Fitment
Interchangeable orifice for the Danfoss TCAE expansion-valve series. Match orifice size to the rated capacity and refrigerant per the ORF selection table.
Product Documentation
More from Danfoss
Danfoss
Danfoss TGE thermostatic expansion valve, R410A, 1/2 in x 5/8 in solder odf 067N3003
Danfoss

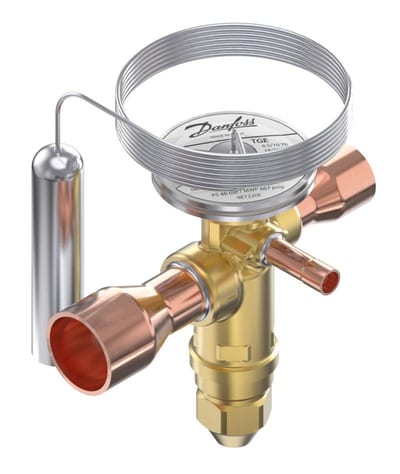

Danfoss TGE thermostatic expansion valve, R410A, 7/8 in x 1 3/8 in solder odf 067N3015
Danfoss
Danfoss TGE thermostatic expansion valve, R410A, 1 1/8 in x 1 3/8 in solder odf 067N3019
Danfoss
Danfoss TGE thermostatic expansion valve, R410A, 16 mm x 22 mm solder odf 067N3066
Danfoss
Danfoss TGE thermostatic expansion valve, R410A, 16 mm x 22 mm solder odf 067N3067
Danfoss

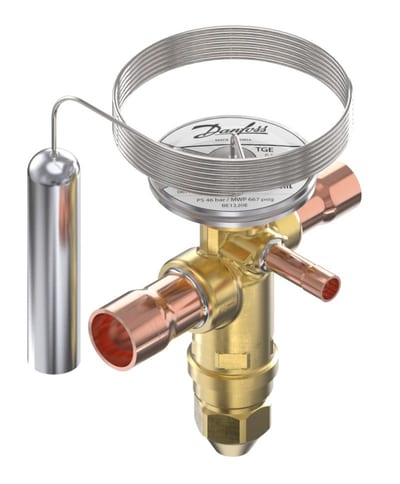

Danfoss TGE thermostatic expansion valve, R410A, 16 mm x 22 mm solder odf 067N3069
