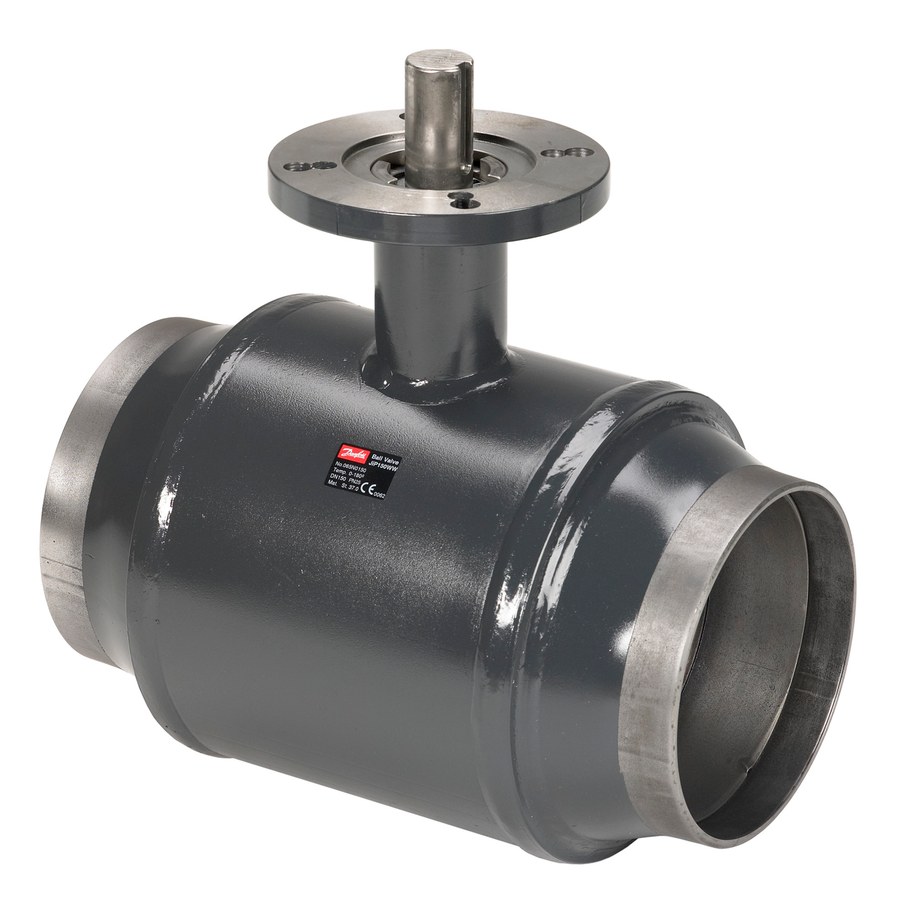

Danfoss JIP-WW ball valve DN 300 PN 25 — full bore, gear flange
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss JIP-WW industrial ball valve, DN 300 PN 25, full bore, welded × welded connection, gear flange operated. Two-port on/off isolation valve for Heating and cooling circulation water; weldable-steel body with stainless-steel ball and stem and a PTFE+C seat ring. Kvs 24000 m³/h. Rated PN 25, media temperature 0 °C to 180 °C. Approval: EN 12266 part 1 P10-P11-P12 & part 2 F20 PED Directive 97/23/EEC Module H1. OEM P/N 065N1167. EAN 5702421651421. Verbatim technical data from store.danfoss.com (code 065N1167).
Technical Specifications
- Code number
- 065N1167
- Type
- JIP-WW, FB, Gear flange
- Description
- JIP-WW DN300 FB PN25 GF H505
- Product group
- Ball valves
- Application
- Heating and cooling
- Function
- On/off
- Number of ports
- 2
- Valve size
- DN 300
- Pressure class
- PN 25
- Valve type
- Full Bore
- Operation type
- Gear Flange
- Connection types
- Welded
- Rotation angle
- 90 °
- Kvs values (m³/h)
- 24000 m³/h
- Leakage rate
- Leakage rate A
- Length (mm)
- 740 mm
- Differential pressure range (max)
- 25 bar
- Media temperature (min)
- 0 °C
- Media temperature (max)
- 180 °C
- Media pH [Min]
- 7
- Media pH [Max]
- 10
- Permissible media
- District heating/cooling circulation water
- Medium alternative
- Glycolic water up to 50%
- Ambient temperature (min)
- -40 °C
- Storage temperature (min)
- -40 °C
- Mounting orientation
- All
- Gear flange type
- F25
- Valve body material
- Weldable steel #20 or similar CE PED approved material
- Valve ball material
- Stainless steel
- Valve stem material
- Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306
- Cone /seat sealing material
- PTFE+C
- Stem sealing material
- PTFE/Graphite
- Welding ends material
- Weldable steel #20 or similar CE PED approved material
- Body material
- Weldable steel #20 or similar CE PED approved material
- Approval standard
- EN 12266 part 1 P10-P11-P12 & part 2 F20 PED Directive 97/23/EEC Module H1
- EU RoHS compliance
- Out of scope
- China RoHS compliance
- Out of scope
- REACH Candidate List substances
- No
- Net weight
- 310 kg
- Gross weight
- 328 kg
- EAN
- 5702421651421
Standards & Compliance
- Material
- Body: weldable steel (#20 / P235GH); ball & stem: stainless steel; seat: PTFE+C; stem seal: ptfe/graphite
- Pressure Rating
- PN25
- Temperature Range
- 0 °C to 180 °C (media)
- Classification / Approval
- CE / PED
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss JIP-WW DN 300 PN 25. Confirm bore (Full Bore), connection (welded × welded) and operator against the pipework; JIP-WW (weld/weld), JIP-FF (flange/flange) and JIP-FW (flange/weld) end configurations are not interchangeable. Hot-tap installation uses the matching JIP-HTT tooling (065N10xx).
