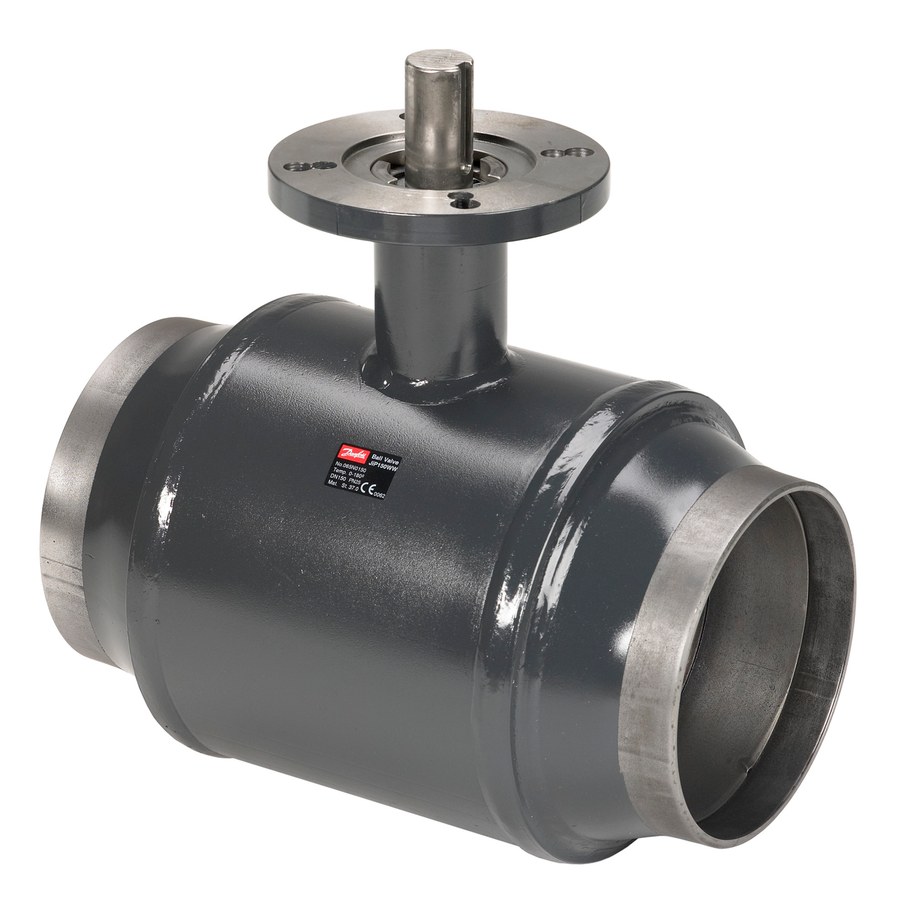

Danfoss JIP-WW ball valve DN 350 PN 25 — full bore, gear flange
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss JIP-WW industrial ball valve, DN 350 PN 25, full bore, welded × welded connection, gear flange operated. Two-port on/off isolation valve for Heating and cooling circulation water; weldable-steel body with stainless-steel ball and stem. Rated PN 25. OEM P/N 065N1174. EAN 5702428973373. Verbatim technical data from store.danfoss.com (code 065N1174).
Technical Specifications
- Code number
- 065N1174
- Type
- JIP-WW, FB, Gear flange
- Description
- JIP-WW DN350 FB PN25 GF
- Product group
- Ball valves
- Function
- On/off
- Valve size
- DN 350
- Pressure class
- PN 25
- Valve type
- Full Bore
- Connection types
- Welded
- Media temperature (max)
- 180 °C
- Media pH [Max]
- 10
- Valve body material
- Weldable steel #20 or similar CE PED approved material
- EU RoHS compliance
- Out of scope
- China RoHS compliance
- Out of scope
- REACH Candidate List substances
- No
- Net weight
- 522.2 kg
- Gross weight
- 522.2 kg
- EAN
- 5702428973373
- Media temperature [°C] [Max]
- 180 °C
Standards & Compliance
- Material
- Body: weldable steel (#20 / P235GH); ball & stem: stainless steel
- Pressure Rating
- PN25
- Classification / Approval
- CE / PED
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss JIP-WW DN 350 PN 25. Confirm bore (Full Bore), connection (welded × welded) and operator against the pipework; JIP-WW (weld/weld), JIP-FF (flange/flange) and JIP-FW (flange/weld) end configurations are not interchangeable. Hot-tap installation uses the matching JIP-HTT tooling (065N10xx).
