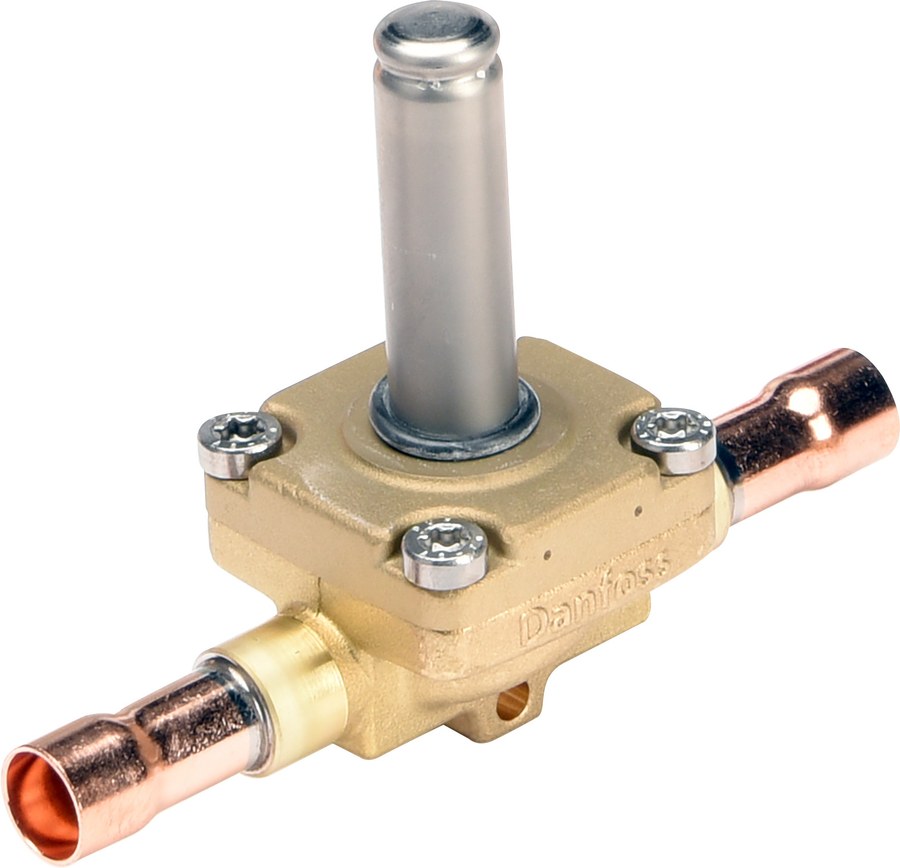

Danfoss EVR 10 Solenoid Valve 12 mm ODF Solder NO Refrigeration 032L1296
Danfoss · HVAC & Refrigeration · Solenoid Valves
Danfoss EVR 10 normally open (NO) servo-operated solenoid valve body, OEM P/N 032L1296. Controls the flow of liquid, suction and hot-gas refrigerant lines in commercial refrigeration and air-conditioning systems; the NO version passes flow when the coil is de-energised and closes when energised. Two-way servo-diaphragm design with solder ODF connections, 12 mm inlet and outlet, brass body. Max working pressure 45.2 bar (655 psig); media temperature -40 °C to 105 °C. The coil is ordered separately (AC or DC, clip-on). Refrigerant compatibility is listed on the datasheet — verify against your system charge.
Specifications
- Part number
- 032L1296
- HS code
- 8481.80
- Material
- Brass body — full material breakdown in the EVR datasheet
- Pressure rating
- 45.2 bar (655 psig) max working pressure
- Temperature range
- -40 °C to 105 °C
Compatibility
Normally open servo-operated solenoid valve for liquid, suction and hot-gas lines in refrigeration and air-conditioning systems; passes flow de-energised, closes energised. Coil ordered separately. Solder ODF connections — verify code and connection size before ordering. Image is a generic solenoid-valve category placeholder (no fabricated brand artwork).
Standards
Approvals
