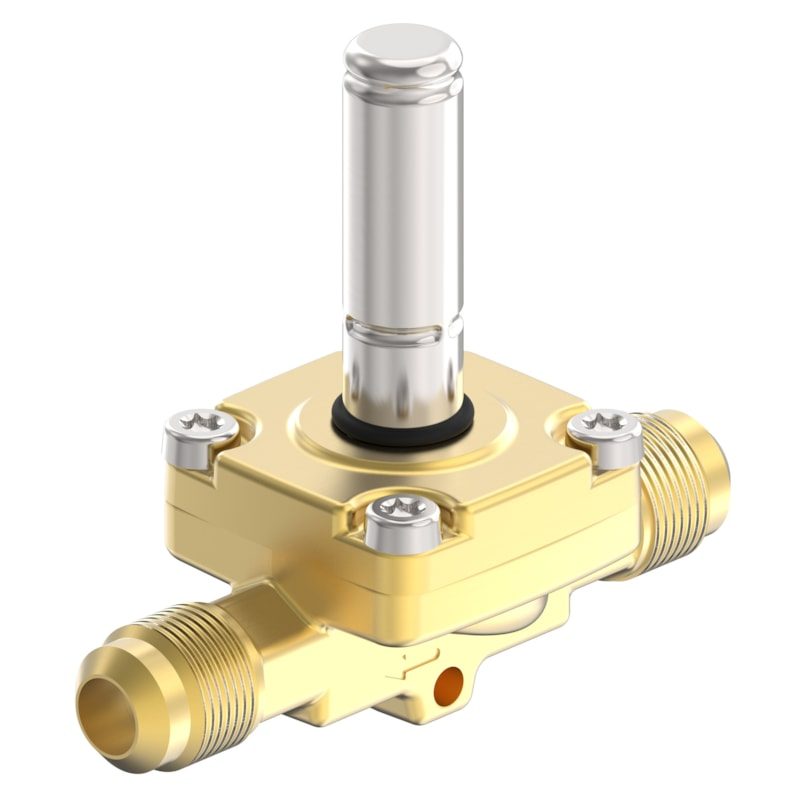

Danfoss EVR 10 Solenoid Valve 1/2 in (12 mm) Flare NO Refrigeration

Danfoss EVR 10 normally open (NO) servo-operated solenoid valve body, OEM P/N 032L8090. Controls the flow of liquid, suction and hot-gas refrigerant lines in commercial refrigeration and air-conditioning systems; the NO version passes flow when the coil is de-energised and closes when energised. Two-way servo-diaphragm design with 1/2 in (12 mm) flare (SAE) connections, brass body. Max working pressure 45.2 bar (655 psig); media temperature -40 °C to 105 °C. The coil is ordered separately (AC or DC, clip-on). Refrigerant compatibility is listed on the datasheet — verify against your system charge.

Brand

Danfoss

Part number

032L8090

Model

EVR 10 servo-operated solenoid valve (valve body)

Category

HVAC & Refrigeration — Solenoid Valves

Function

NO (normally open)

Type

2-way servo-diaphragm solenoid valve

Connection

Flare (SAE), 1/2 in (12 mm), inlet and outlet

Orifice

10 mm

Kv

2.2 m³/h (Cv 2.6 gal/min)

Max working pressure (PS/MWP)

45.2 bar (655 psig)

Media temperature range

-40 °C to 105 °C (-40 °F to 221 °F)

Body

brass

Coil

ordered separately (clip-on; AC/DC versions available)

Net weight

0.394 kg

Gross weight

0.473 kg

Approvals

UL (MH7648), CE / PED (2014/68/EU), EAC

HS code

8481.80

Code number

032L8090

Product group

Solenoid valves

Type designation

Solenoid valve

Direction

Straightway

Valve operation

Servo-diaphragm

Inlet connection type

Flare

Inlet size

12.00 mm

Outlet connection type

Flare

Outlet size

12.00 mm

Cv value

2.600 gal/min

MaxOPD 10W AC

21 bar

MaxOPD 20W DC

21 bar

MinODP

0.030 bar

Medium temperature range

-40 °C to 105 °C

Ambient temperature

-40 - 80 °C

Refrigerants

R1234yf; R1234ze(E); R125; R134a; R152a; R22; R32; R404A; R407A; R407C; R407F; R407H; R410A; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R512A; R513A; R513B; R515A; R515B; R516A

Lubricants compatibility

AB; MO; PAG; PAO; POE; PVE

Fluid Group

1; 2

PED category

Art. 4, par. 3

UL approved refrigerants

R1234ze(E); R125; R134a; R152a; R22; R32; R404A; R407A; R407C; R407F; R407H; R410A; R417A; R422A; R422B; R422D; R438A; R442A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R513A; R513B; R515A; R515B

UL mark

Yes

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

EAN

5702428952514

Material

Brass body — full material breakdown in the EVR datasheet

Pressure Rating

45.2 bar (655 psig) max working pressure

Temperature Range

-40 °C to 105 °C

Classification / Approval

UL (MH7648), CE / PED (2014/68/EU), EAC

HS Code

8481.80
