Danfoss EVR 3 Solenoid Valve 3/8 in (10 mm) Flare NC Refrigeration 032F8116
Danfoss · HVAC & Refrigeration · Solenoid Valves

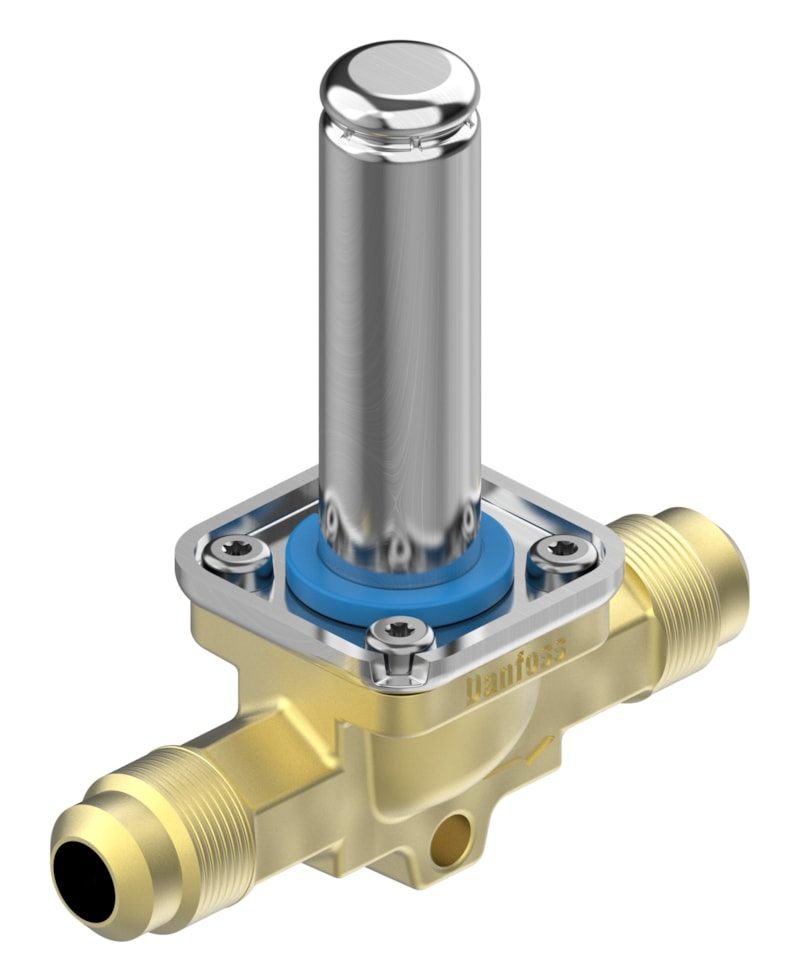

Danfoss EVR 3 normally closed (NC) servo-operated solenoid valve body, OEM P/N 032F8116. Controls the flow of liquid, suction and hot-gas refrigerant lines in commercial refrigeration and air-conditioning systems; the NC version closes when the coil is de-energised and opens when energised. Two-way servo-diaphragm design with 3/8 in (10 mm) flare (SAE) connections, brass body. Max working pressure 45.2 bar (655 psig); media temperature -40 °C to 105 °C. The coil is ordered separately (AC or DC, clip-on). Refrigerant compatibility is listed on the datasheet — verify against your system charge.
Specifications
- Part number
- 032F8116
- HS code
- 8481.80
- Material
- Brass body — full material breakdown in the EVR datasheet
- Pressure rating
- 45.2 bar (655 psig) max working pressure
- Temperature range
- -40 °C to 105 °C
Compatibility
Normally closed (NC) servo-operated solenoid valve for liquid, suction and hot-gas lines in refrigeration and air-conditioning systems; closes de-energised, opens energised. Coil ordered separately. Flare (SAE) connections — verify code and connection before ordering. Image is a generic solenoid-valve category placeholder (no fabricated brand artwork).
Standards
Approvals
