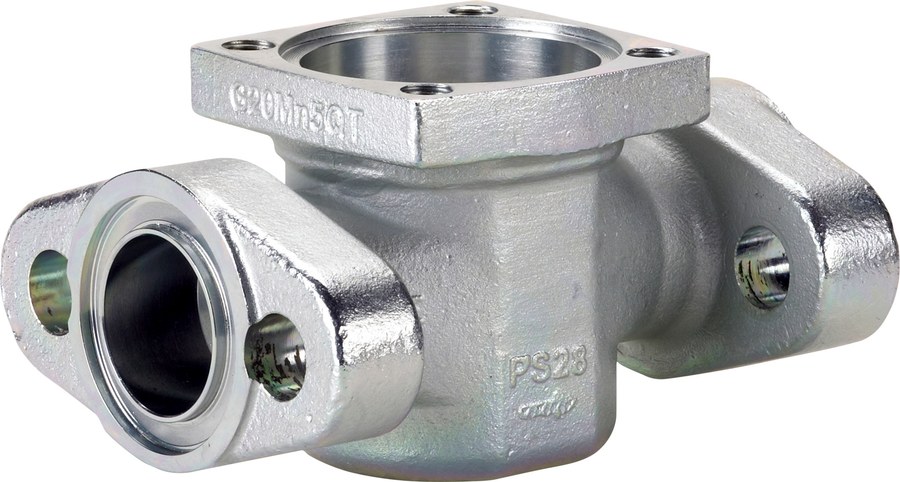

Danfoss ICV 25 PM multifunction valve body, flange
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICV 25 PM multifunction valve body with flange connection. Danfoss code number 027H2119. Steel housing for the ICV Flexline modular valve system; accepts a function module / pilot top and is used with ICS 25; ICM 25 in industrial refrigeration.
Technical Specifications
- Brand
- Danfoss
- Type
- ICV 25 PM multifunction valve body
- Code number
- 027H2119
- Connection type
- flange
- Connection material
- steel
- Body material
- steel
- Product group
- multifunction valves
- Used for
- ICS 25; ICM 25
- Volume
- 8.96 L
- Max. working pressure
- 28 bar (406 psig)
- Temperature range
- -60 to 120 °C (-76 to 248 °F)
- EAN
- 5702428869218
- Net weight
- 2.1 kg; gross weight: 2.612 kg
- EU RoHS / China RoHS
- compliant
- Approvals
- EAC
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection standard
- CUST. SPEC.
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Max. Working Pressure [bar]
- 28 bar
- Max. Working Pressure [psig]
- 406 psig
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- ICM 25
- Valve operation
- Function module
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 28 bar (406 psig)
- Temperature Range
- -60 to 120 °C
- Classification / Approval
- EAC, EU RoHS, China RoHS
- HS Code
- 8481.80
Compatibility & Fitment
ICV 25 PM body — pair with the matching ICM/ICS/ICLX 25 function module or pilot. Confirm port size and refrigerant against the system spec.
