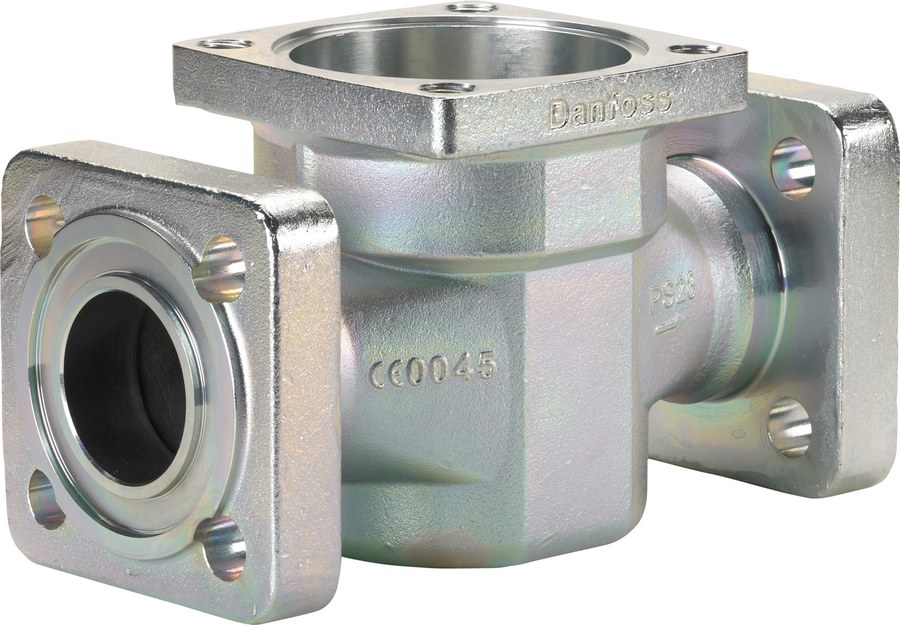

Danfoss ICV 50 PM multifunction valve body, flange
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICV 50 PM multifunction valve body with flange connection. Danfoss code number 027H5127. Steel housing for the ICV Flexline modular valve system; accepts a function module / pilot top and is used with ICM 50; ICLX 50; ICS 50 in industrial refrigeration.
Technical Specifications
- Brand
- Danfoss
- Type
- ICV 50 PM multifunction valve body
- Code number
- 027H5127
- Connection type
- flange
- Connection material
- steel
- Body material
- steel
- Product group
- multifunction valves
- Used for
- ICM 50; ICLX 50; ICS 50
- Max. working pressure
- 28 bar (406 psig)
- Temperature range
- -60 to 120 °C (-76 to 248 °F)
- EAN
- 5702428868891
- Net weight
- 7.85 kg; gross weight: 9.563 kg
- EU RoHS / China RoHS
- compliant
- Approvals
- EAC
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection standard
- CUST. SPEC.
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Further information
- PM retrofit
- Max. Working Pressure [bar]
- 28 bar
- Max. Working Pressure [psig]
- 406 psig
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- ICLX 50
- Valve operation
- Function module
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 28 bar (406 psig)
- Temperature Range
- -60 to 120 °C
- Classification / Approval
- EAC, EU RoHS, China RoHS
- HS Code
- 8481.80
Compatibility & Fitment
ICV 50 PM body — pair with the matching ICM/ICS/ICLX 50 function module or pilot. Confirm port size and refrigerant against the system spec.
