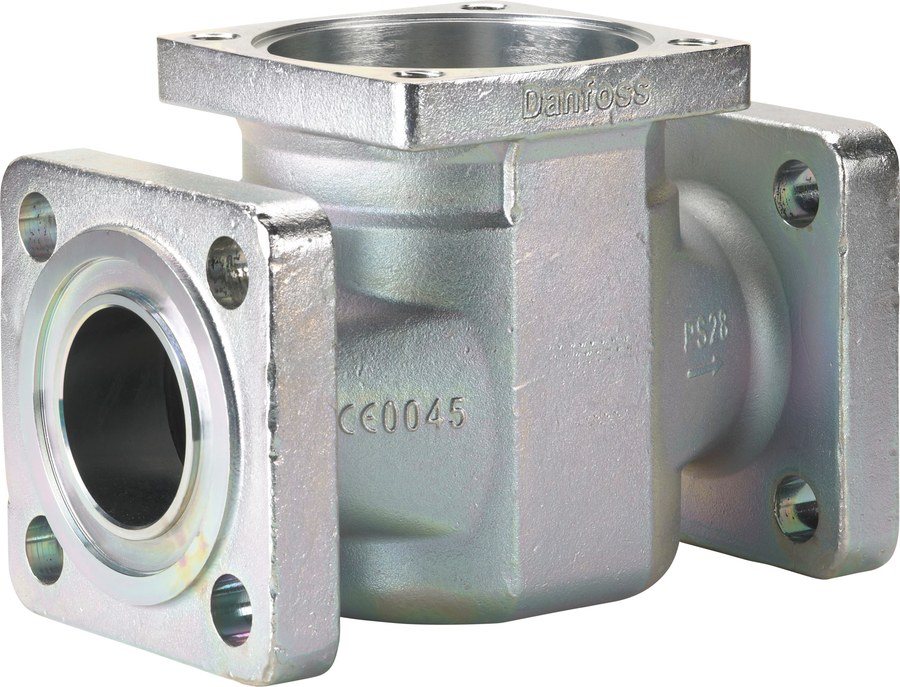

Danfoss ICV 65 PM multifunction valve body, flange
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICV 65 PM multifunction valve body with flange connection. Danfoss code number 027H6128. Steel housing for the ICV Flexline modular valve system; accepts a function module / pilot top and is used with ICS 65; ICLX 65; ICM 65 in industrial refrigeration.
Technical Specifications
- Brand
- Danfoss
- Type
- ICV 65 PM multifunction valve body
- Code number
- 027H6128
- Connection type
- flange
- Connection material
- steel
- Body material
- steel
- Product group
- multifunction valves
- Used for
- ICS 65; ICLX 65; ICM 65
- Max. working pressure
- 28 bar (406 psig)
- Temperature range
- -60 to 120 °C (-76 to 248 °F)
- EAN
- 5702428878616
- Net weight
- 11.29 kg; gross weight: 12.996 kg
- EU RoHS / China RoHS
- compliant
- Approvals
- EAC
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection standard
- CUST. SPEC.
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Further information
- PM retrofit
- Max. Working Pressure [bar]
- 28 bar
- Max. Working Pressure [psig]
- 406 psig
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- ICLX 65
- Valve operation
- Function module
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 28 bar (406 psig)
- Temperature Range
- -60 to 120 °C
- Classification / Approval
- EAC, EU RoHS, China RoHS
- HS Code
- 8481.80
Compatibility & Fitment
ICV 65 PM body — pair with the matching ICM/ICS/ICLX 65 function module or pilot. Confirm port size and refrigerant against the system spec.
