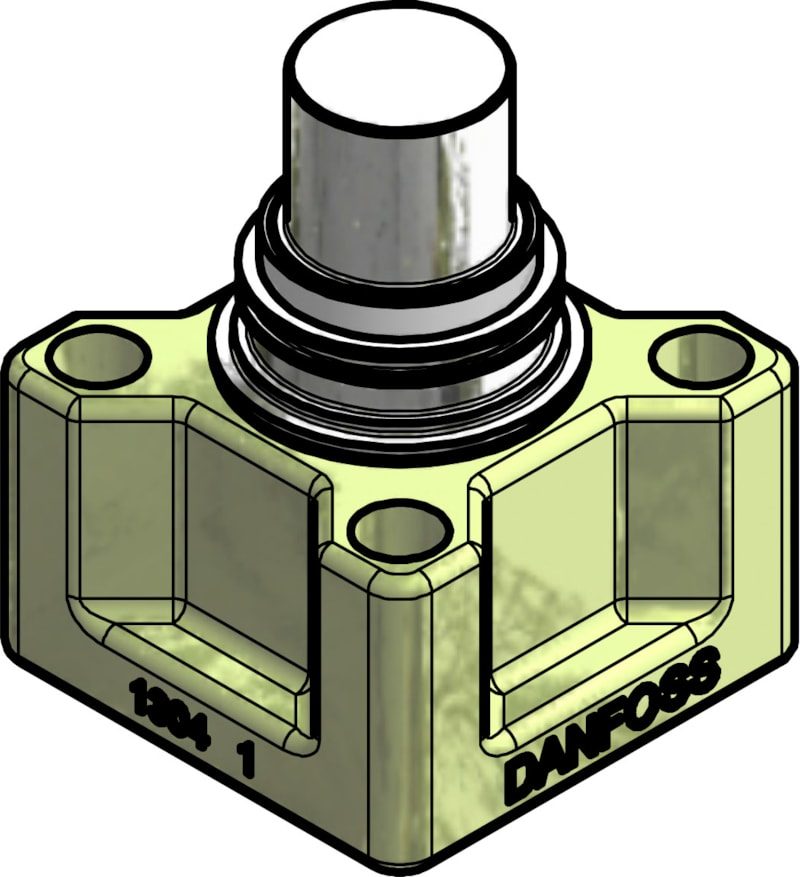

Danfoss 027H1194 ICM 20-B66 function module, steel (motor operated)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICM 20-B66 function module, motor-operated top for the ICV 20 valve body. Danfoss code number 027H1194. Steel, ICAD-driven with magnet coupling for pressure and temperature regulation in industrial refrigeration.
Specifications
- Part number
- 027H1194
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar (754 psig)
- Temperature range
- -60 to 120 °C
Compatibility
ICM 20-B66 top fits the ICV 20 valve body. Pair with an ICAD actuator. Confirm port size and refrigerant against the system spec.
Standards
Approvals
