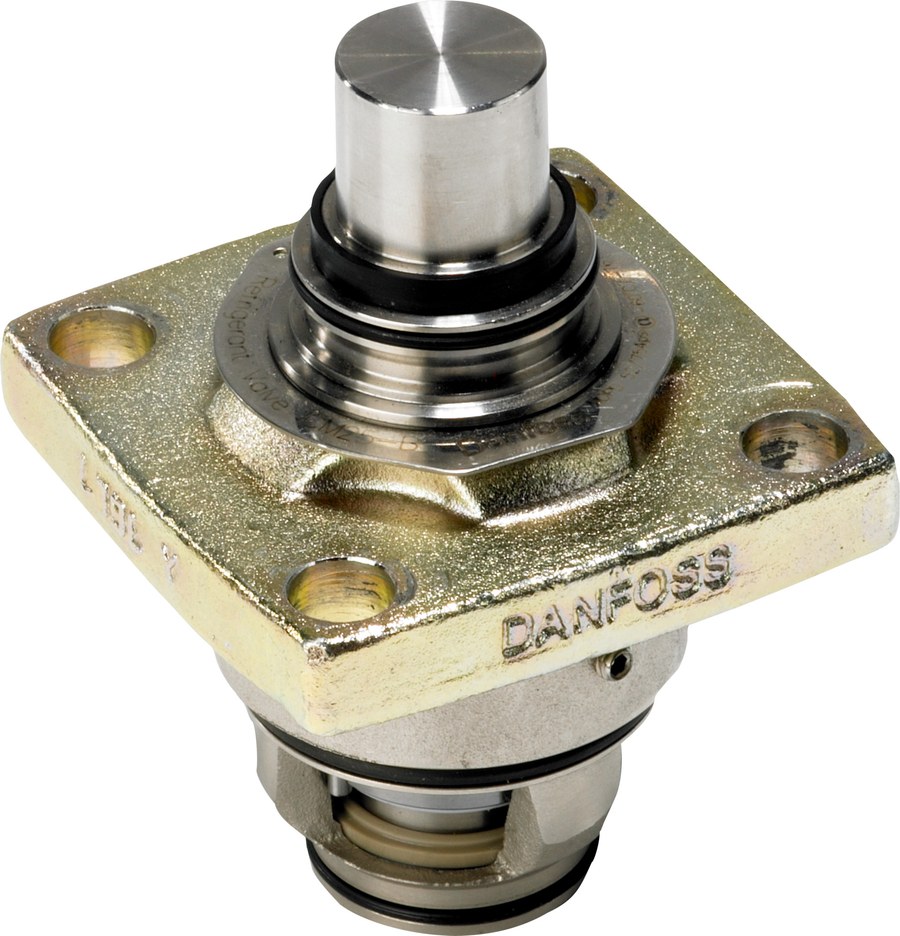

Danfoss ICM 25-A33 function module, steel (motor operated)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICM 25-A33 function module, motor-operated top for the ICV 25 valve body. Danfoss code number 027H2190. Steel, ICAD-driven with magnet coupling for pressure and temperature regulation in industrial refrigeration.
Technical Specifications
- Brand
- Danfoss
- Type
- ICM 25-A33 function module, motor operated (steel)
- Code number
- 027H2190
- Connection size
- 25 mm
- Body material
- steel
- Kv
- 2 m³/h (Cv 2.3 gal/min)
- Open/close time
- 7 s
- Actuator
- ICAD motor, magnet coupling
- Product group
- pressure and temperature regulating valves
- Parts included
- seat/O-ring; bolts/O-ring
- Max. working pressure
- 52 bar (754 psig)
- Temperature range
- -60 to 120 °C (-76 to 248 °F)
- EAN
- 5702428960199
- Net weight
- 1.44 kg; gross weight: 1.832 kg
- Refrigerant compatibility
- R134a, R22, R404A, R410A, R717, R744, R1234ze(E), R507A and others
- REACH Candidate List
- no substances listed
- EU RoHS / China RoHS
- compliant
- Approvals
- CE, EAC, PED 2014/68/EU, UL, EN 12178, EN 12284
- Actuator system
- ICAD motor, magnet coupling
- China RoHS compliance
- Yes
- Cv value [gal/min]
- 2.3 gal/min
- EU RoHS compliance
- Yes
- Kv value [m³/h]
- 2 m³/h
- Manual operation option
- Via ICAD setting
- Open/close time [s]
- 7 s
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Used for product
- ICV 25
- Used for product comments
- With top assembly
- Valve operation
- Motor operated
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar (754 psig)
- Temperature Range
- -60 to 120 °C
- Classification / Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- HS Code
- 8481.80
Compatibility & Fitment
ICM 25-A33 top fits the ICV 25 valve body. Pair with an ICAD actuator. Confirm port size and refrigerant against the system spec.
